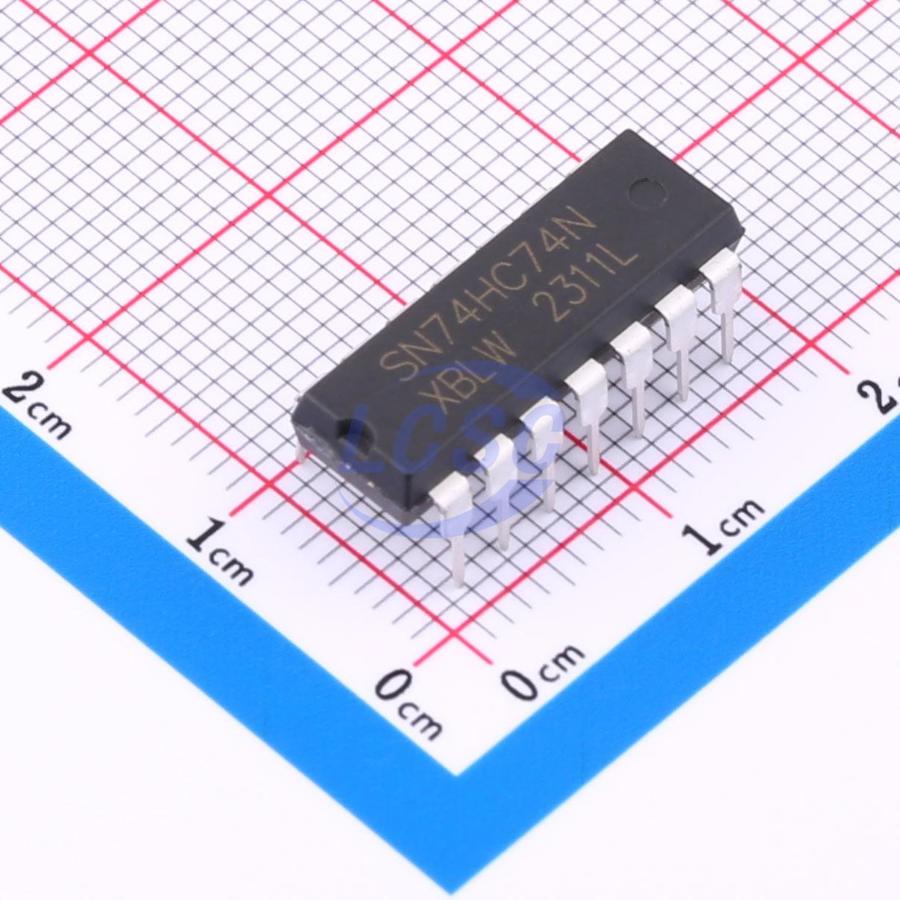

SN74HC74N(XBLW)
2V~6V 1 2 14ns@5V,15pF DIP-14 Flip Flops RoHS
Dual D-type flip-flop with set and reset; positive-edge trigger
- Manufacturer
- XBLW
- Manufacturer part #
- SN74HC74N(XBLW)
- Store part #
- C18723532
- Package / case
- DIP-14
- Category
- Flip Flops
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,140 in stock
#C18723532
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.23 | ₹111.15 |
| 50+ | ₹17.42 | ₹871.00 |
| 150+ | ₹15.36 | ₹2,304.00 |
| 500+ | ₹12.79 | ₹6,395.00 |
| 2,000+ | ₹11.66 | ₹23,320.00 |
| 5,000+ | ₹10.97 | ₹54,850.00 |
5 × ₹22.23
₹111.15
excl. GST
₹131.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 25 per tube
SN74HC74N(XBLW)
₹111.15 for 5 + GST
Specifications
- Voltage - Supply
- 2V~6V
- Number of Bits per Element
- 1
- Output Type
- Complementary
- Operating Temperature
- -40℃~+105℃
- Series
- 74HC Series
- Synchronous/Asynchronous
- Asynchronous
- Number of Elements
- 2
- Current - Output High(IOH)
- 4mA
- Current - Output Low(IOL)
- 5.2mA
- Setup Time
- 13ns
- Quiescent Current
- 2uA
- Hold Time
- -2ns
- Propagation Delay
- 14ns@5V,15pF
- Trigger Type
- Rising Edge
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.619 g
Overview
The SN74HC74 is a dual positive edge triggered D-type flip-flop. They have individual data (nD), clock (nCP), set (nSD) and reset (nRD) inputs, and complementary nQ and nQ̅ Outputs. Data at the nDinput, that meets the set-up and hold time requirements on the LOW-to-HIGH clock transition, is stored in the flip-flop and appears at the nQ output. Schmitt-trigger action in the clock input, makes the circuit highly tolerant to slower clock rise and fall times. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC
Applications
- Convert a momentary switch to a toggle switch
- Divide a clock signal by 2 or 4
Key features
- Buffered inputs
- Wide operating voltage range: 2 to 6 V
- Symmetrical output impedance
- Low power dissipation
- Balanced propagation delays
- Specified from -40°C to +125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LS74N(XBLW)#C42415774XBLW · DIP-14 | XBLW | DIP-14 | 255 | ₹25.00 · 255 in stock | View |
