TI
SN74LVC1G3157DCKR6Ω 1 1.65V~5.5V SC-70-6(SOT-363) Analog Switches, Multiplexers, Demultiplexers RoHS
From
₹9.71
2,06,955 in stock
UMWDatasheet (PDF)
SN74LVC1G3157DCKR
IC SWITCH 2:1 12Ω SC-70-6
SC-70-6ROHS3 CompliantActive

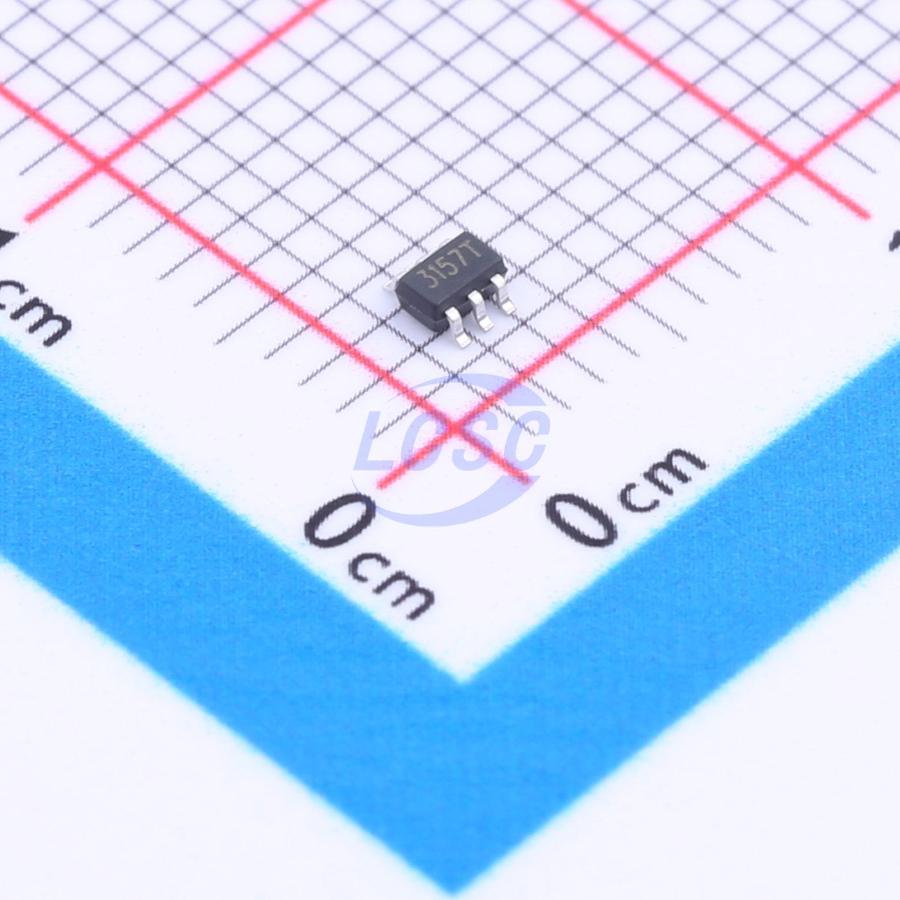

UMW SN74LVC1G3157 Single-Pole Double-Throw Analog Switch Circuit
- Manufacturer
- UMW
- Manufacturer part #
- SN74LVC1G3157DCKR
- Store part #
- C2681224
- Package / case
- SC-70-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,91,140 in stock
#C2681224
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.38 | ₹63.80 |
| 100+ | ₹4.97 | ₹497.00 |
| 300+ | ₹4.23 | ₹1,269.00 |
| 3,000+ | ₹3.64 | ₹10,920.00 |
| 6,000+ | ₹3.43 | ₹20,580.00 |
| 9,000+ | ₹3.29 | ₹29,610.00 |
10 × ₹6.38
₹63.80
excl. GST
₹75.28 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G3157DCKR
₹63.80 for 10 + GST
Specifications
- Features
- Fault protection
- Operating Temperature
- -55℃~+125℃
- Ron
- 12Ω
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 300ps
- Con
- 15.5pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.034 g
Overview
This device is a CMOS-based analog switch featuring low power consumption, low propagation delay, and low output impedance. The voltage output range for both analog and digital signals can start from VCC or GND. The select input incorporates overvoltage protection, allowing input voltages above VCC up to 7V without pin damage.
Key features
- Low power consumption
- High transmission speed
- Standard CMOS logic levels
- High bandwidth, high linearity
- Switching for NTSC/PAL video, audio, SPDIF, and HDTV
- Clock switching and data multiplexing
- Low output impedance
- Break-before-make protection against short circuits
- Operating temperature range: -40℃ ~ +125℃
- Package: SC70-6 (3157DCKR)
- Package: DFN6 (SN74LVC1G3157Y)
- Package: SOT23-6 (SN74LVC1G3157DBVR)
