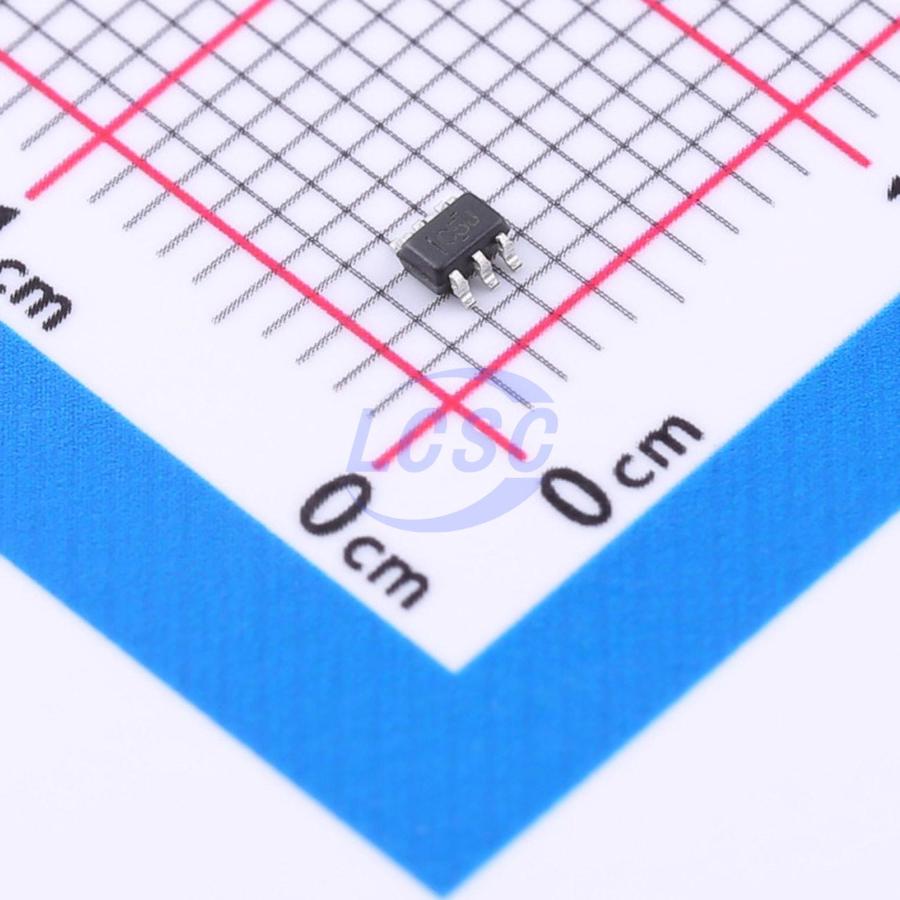

SN74LVC1G3157DCKR
6Ω 1 1.65V~5.5V SC-70-6(SOT-363) Analog Switches, Multiplexers, Demultiplexers RoHS
SINGLE-POLE DOUBLE-THROW ANALOG SWITCH
- Manufacturer
- TI
- Manufacturer part #
- SN74LVC1G3157DCKR
- Store part #
- C38663
- Package / case
- SC-70-6(SOT-363)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,06,955 in stock
#C38663
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹9.71 | ₹48.55 |
| 50+ | ₹7.89 | ₹394.50 |
| 150+ | ₹6.95 | ₹1,042.50 |
| 500+ | ₹6.17 | ₹3,085.00 |
| 3,000+ | ₹5.52 | ₹16,560.00 |
| 6,000+ | ₹5.33 | ₹31,980.00 |
5 × ₹9.71
₹48.55
excl. GST
₹57.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G3157DCKR
₹48.55 for 5 + GST
Specifications
- Features
- Bidirectional analog channel
- Operating Temperature
- -40℃~+85℃
- Ron
- 6Ω
- Number of Channels
- 1
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 300ps
- Con
- 17.3pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.047 g
Overview
This single-pole double-throw (SPDT) analog switch is designed for 1.65-V to 5.5 VCC operation. The SN74LVC1G3157 can handle both analog and digital signals. The device permits signals with amplitudes of up to VCC (peak) to be transmitted in either direction. Applications include signal gating, chopping, modulation or demodulation (modem), and signal multiplexing for analog-to-digital and digital-to-analog conversion systems.
Applications
- signal gating
- chopping
- modulation or demodulation (modem)
- signal multiplexing for analog-to-digital and digital-to-analog conversion systems
Key features
- 1.65-V to 5.5 VCC Operation
- Useful for Both Analog and Digital Applications
- Specified Break-Before-Make Switching
- Rail-to-Rail Signal Handling
- High Degree of Linearity
- High Speed, Typically 0.5 ns (VCC = 3V, CL = 50 pF)
- Low On-State Resistance, Typically 6 Ω (VCC = 4.5 V)
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
