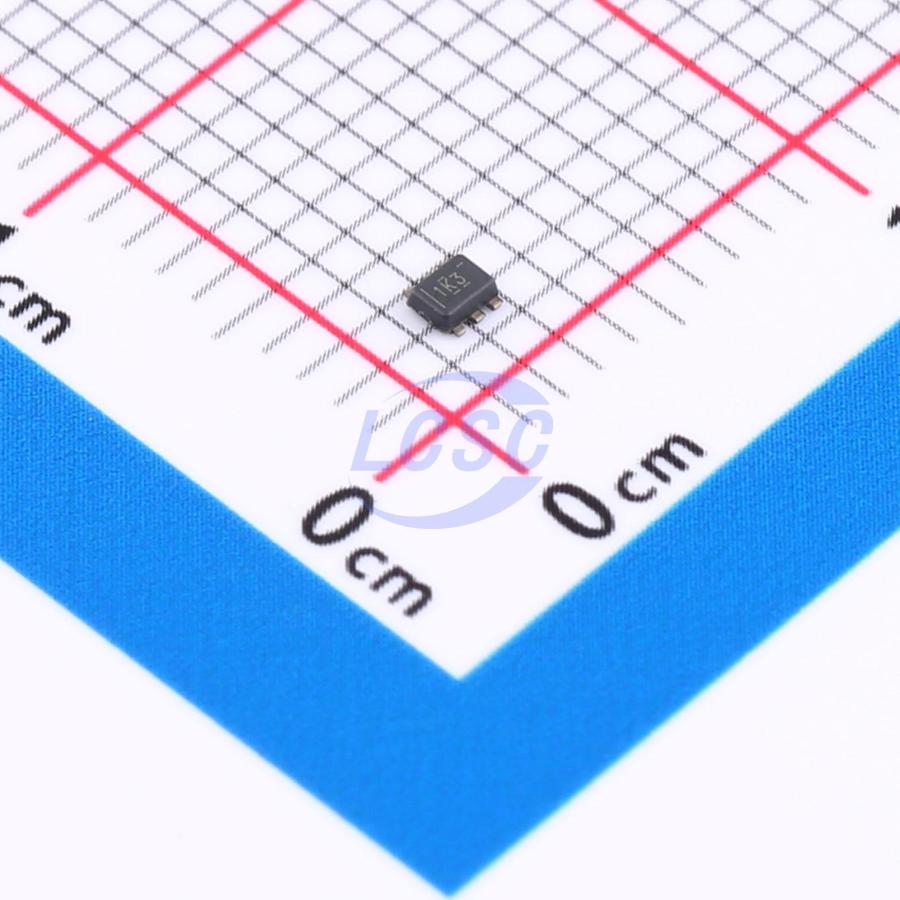

SN74LVC1G58DRLR

This configurable multiple-function gate is designed for 1.65-V to 5.5-V V_CC operation. The SN74LVC1G58 device features configurable multiple functions. The output state is determined by eight patterns of 3-bit input. The user can choose the logic functions AND, OR, NAND, NOR, XOR, inverter, and noninverter. All inputs can be connected to V_CC or GND. This device functions as an independent gate, but because of Schmitt action, it may have different input threshold levels for positive-going (V_T+) and negativegoing (V_T-) signals. NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package. This device is fully specified for partial-power-down applications using I_off. The I_off circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Key features

• Available in the Texas Instruments NanoFree™ Package
• Supports 5-V V_CC Operation
• Inputs Accept Voltages to 5.5 V
• Supports Down Translation to V_CC
• Max t_pd of 6.3 ns at 3.3 V
• Low Power Consumption, 10-μΔ Max ICC
• ±24-mA Output Drive at 3.3 V
• I_off Supports Live Insertion, Partial-Power Down Mode, and Back-Drive Protection
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22
• 2000-V Human-Body Model (A114-A)
• 200-V Machine Model (A115-A)
• 1000-V Charged-Device Model (C101)
