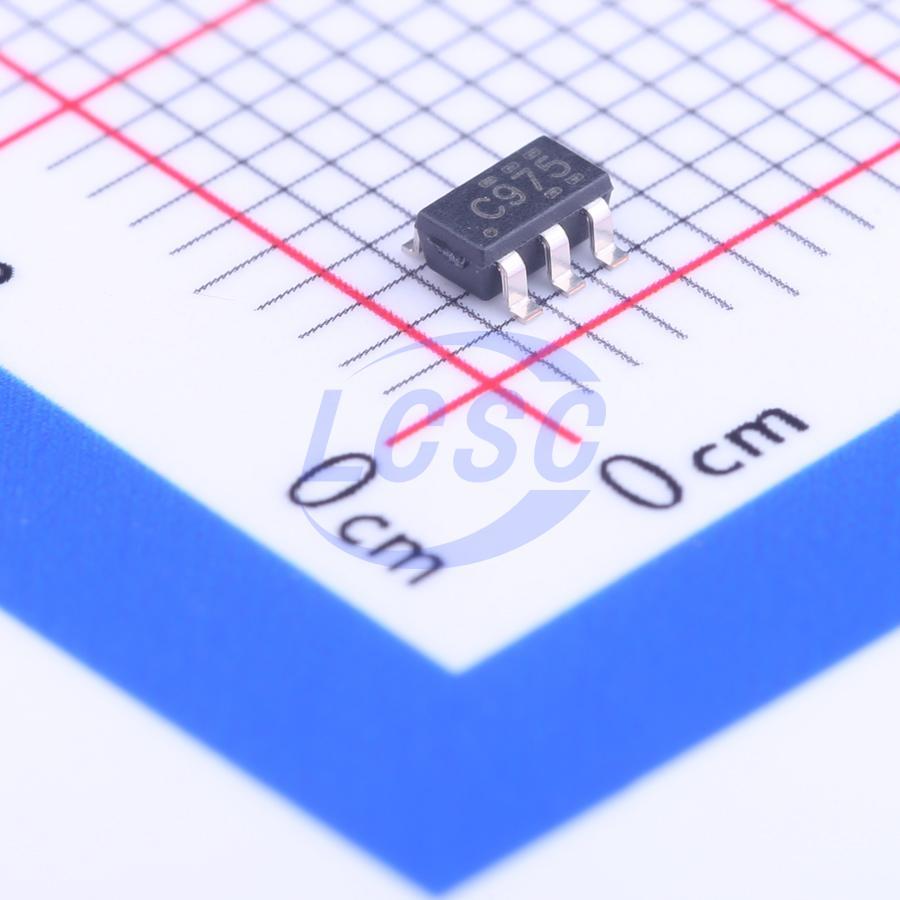

SN74LVC1G97DBVR

Schmitt trigger 1.65V~5.5V 32mA 10uA 32mA 1 SOT-23-6 Gates and Inverters - Multi-Function, Configurable RoHS

SOT-23-6ROHS CompliantActive

Configurable Multiple-Function Gate

Manufacturer: TI
Manufacturer part #: SN74LVC1G97DBVR
Store part #: C128411
Package / case: SOT-23-6
Category: Gates and Inverters - Multi-Function, Configurable
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

22,345 in stock

#C128411

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
5+	₹17.05	₹85.25
50+	₹13.40	₹670.00
150+	₹11.58	₹1,737.00
500+	₹10.21	₹5,105.00
3,000+	₹9.12	₹27,360.00
6,000+	₹8.56	₹51,360.00

Quantity (min 5, multiples of 5)

5 × ₹17.05

₹85.25

excl. GST

₹100.60 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74LVC1G97DBVR

₹85.25 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Logic Family: 74LVC Series
Input type: Schmitt trigger
Propagation Delay: 5.1ns@5V
Voltage - Supply: 1.65V~5.5V
Operating Temperature: -40℃~+125℃
Output Logic Level - Low: 450mV;300mV;400mV;550mV
Current - Output Low(IOL): 32mA
Output Logic Level - High: 1.2V;1.9V;2.4V;2.3V;3.8V
Quiescent Current(Iq): 10uA
Current - Output High(IOH): 32mA
Features: Live insertion protection;Local shutdown mode;Rear drive protection
Number of Gates: 1

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.057 g

Overview

The SN74LVC1G97 device features configurable multiple functions. The output state is determined by eight patterns of 3-bit input. The user can choose the logic functions MUX, AND, OR, NAND, NOR, inverter, and noninverter. All inputs can be connected to VCC or GND. This configurable multiple-function gate is designed for 1.65-V to 5.5-V VCC operation. This device functions as an independent gate, but because of Schmitt action, it may have different input threshold levels for positive-going (VT+) and negativegoing (VT-) signals. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Applications

Barcode Scanners
Cable Solutions
E-Books
Embedded PCs
Field Transmitter: Temperature or Pressure Sensors
Fingerprint Biometrics
HVAC: Heating, Ventilating, and Air Conditioning
Network-Attached Storage (NAS)
Server Motherboards and PSUs
Software Defined Radios (SDR)
TVs: High Definition (HDTV), LCD, and Digital-Video Communications Systems
Wireless Data Access Cards, Headsets, Keyboard, Mouse, and LAN Cards

Key features

ESD Protection Exceeds JESD 22 2000-V Human Body Model (A114-A), 200-V Machine Model (A115-A), 1000-V Charged-Device Model (C101)
Available in the Texas Instruments NanoFree™ Package
Supports 5-V VCC Operation
Inputs Accept Voltages to 5.5V
Supports Down Translation to VCC
Max tpd of 6.3 ns at 3.3V
Low Power Consumption, 10-μA Max Icc
±24-mA Output Drive at 3.3V
Ioff Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
Choose From Nine Specific Logic Functions
