TIDatasheet (PDF)

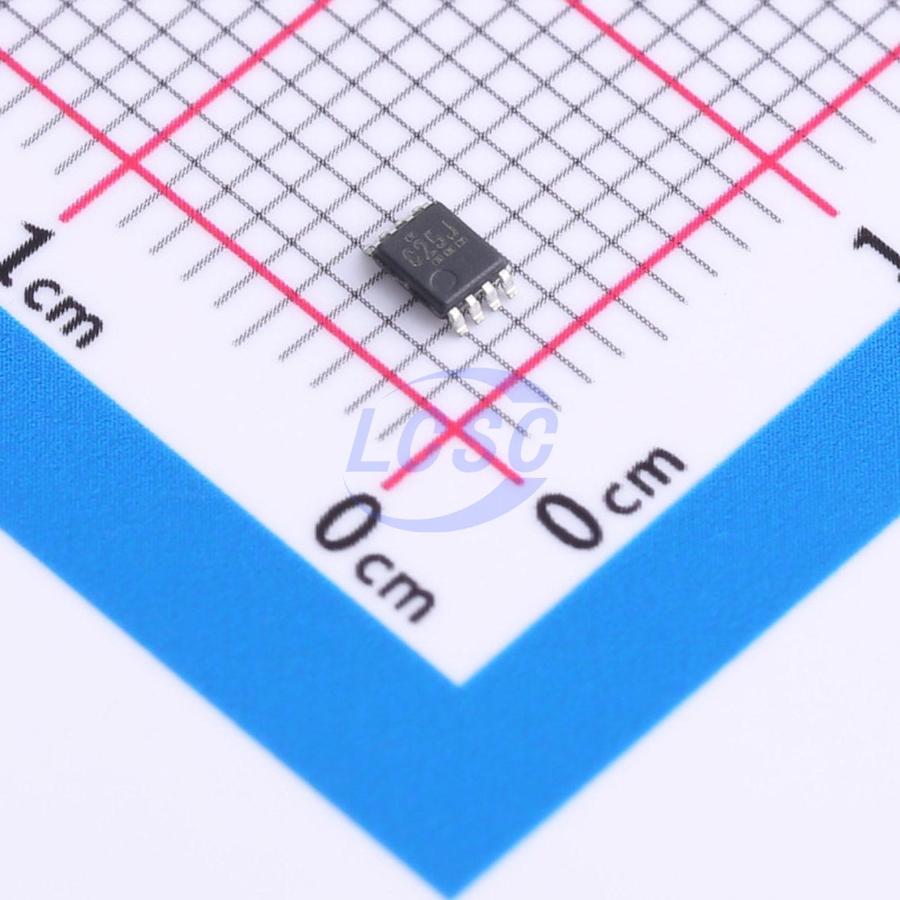

SN74LVC2G125DCUR
1.65V~5.5V 1 2 4.3ns@3.3V,50pF VSSOP-8 Buffers, Drivers, Receivers, Transceivers RoHS
VSSOP-8ROHS3 CompliantActive
Dual Bus Buffer Gate with 3-State Outputs
- Manufacturer
- TI
- Manufacturer part #
- SN74LVC2G125DCUR
- Store part #
- C21404
- Package / case
- VSSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
260 in stock
#C21404
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.66 | ₹138.30 |
| 50+ | ₹21.68 | ₹1,084.00 |
| 150+ | ₹19.12 | ₹2,868.00 |
| 500+ | ₹15.92 | ₹7,960.00 |
| 3,000+ | ₹14.49 | ₹43,470.00 |
| 6,000+ | ₹13.64 | ₹81,840.00 |
5 × ₹27.66
₹138.30
excl. GST
₹163.19 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC2G125DCUR
₹138.30 for 5 + GST
Specifications
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 10uA
- Function
- Power-off isolation;Output enable
- Current - Output High(IOH)
- 32mA
- Series
- 74LVC
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Propagation Delay
- 4.3ns@3.3V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.416 g
Overview
The SN74LVC2G125 is a dual bus buffer gate, designed for 1.65-V to 5.5 VCC operation. This device features dual line drivers with 3-state outputs. The outputs are disabled when the associated output-enable (OE) input is high. NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
Applications
- Bus signal buffer driver
Key features
- Available in the Texas Instruments NanoFree Package
- Supports 5-V Vcc Operation
- Inputs Accept Voltages to 5.5 V
- Max tpd of 4.3 ns at 3.3 V
- Low Power Consumption, 10-μA Max ICC
- ±24-mA Output Drive at 3.3 V
- Typical VOLP (Output Ground Bounce) < 0.8 V at Vcc = 3.3V, TA = 25℃
- Typical VOHV (Output VOH Undershoot) > 2V at VCC = 3.3V, TA = 25℃
- Ioff Supports Partial-Power-Down Mode Operation
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
