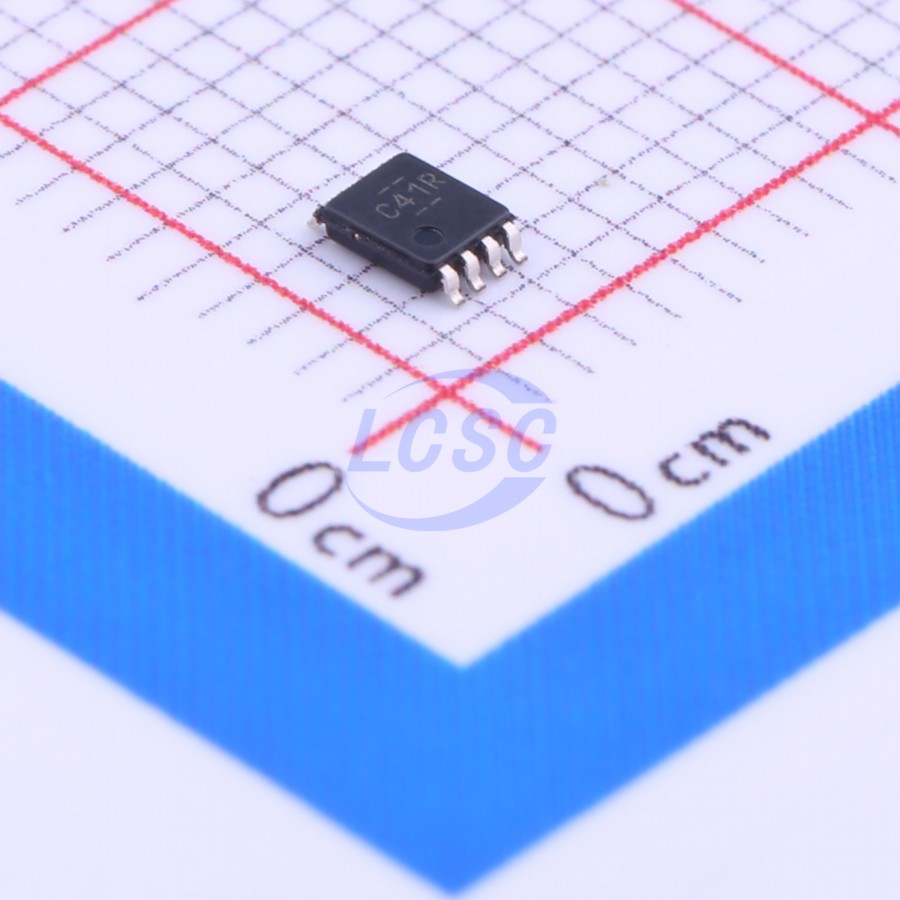

SN74LVC2G241DCUR

This dual buffer/line driver is designed for 1.65-V to 5.5-V CC operation. The SN74LVC2G241 is designed specifically to improve both the performance and density of 3-state memory-address drivers, clock drivers, and bus-oriented receivers and transmitters. NanoStar and NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package. The SN74LVC2G241 is organized as two 1-bit line drivers with separate output-enable (1OE, 2OE) inputs. When 1OE is low and 2OE is high, the device passes data from the A inputs to the Y outputs. When 1OE is high and 2OE is low, the outputs are in the high-impedance state. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Applications

• Three-state memory address driver
• Clock driver
• Bus-oriented receiver and transmitter

Key features

• Available in the Texas Instruments NanoStar and NanoFree Packages
• Supports 5-V CC Operation
• Inputs Accept Voltages to 5.5 V
• Max tpd of 4.1 ns at 3.3 V
• Low Power Consumption, 10-μA Max ICC
• ±24-mA Output Drive at 3.3 V
• Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3V, TA = 25℃
• Typical VOHV (Output VOH Undershoot) > 2 V at VCC = 3.3V, TA = 25℃
• Ioff Supports Partial-Power-Down Mode Operation
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22 - 2000-V Human-Body Model (A114-A)
• 200-V Machine Model (A115-A)
• 1000-V Charged-Device Model (C101)
