onsemiDatasheet (PDF)

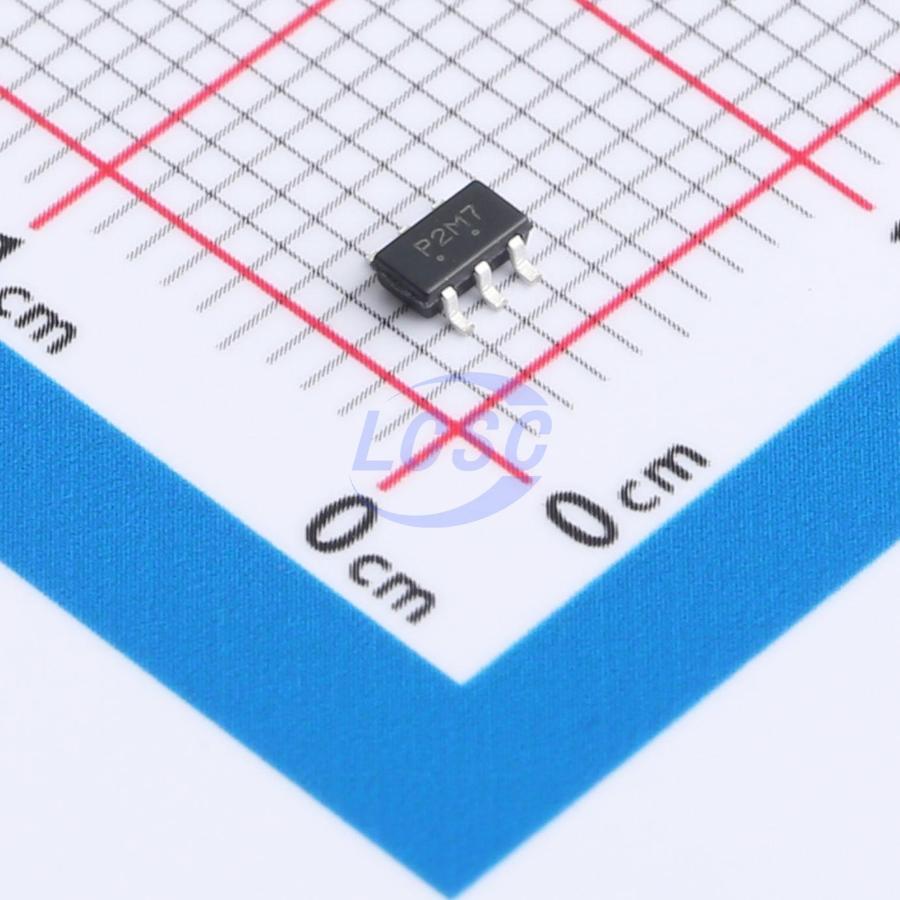

SNUP2114UCMR6T1G
10VC Clamp 12A@8/20us Ipp ESD DIODE TSOP-6
TSOP-6ROHS3 CompliantActive
ESD DIODE 5VWM 10VC TSOP-6
- Manufacturer
- onsemi
- Manufacturer part #
- SNUP2114UCMR6T1G
- Store part #
- C894418
- Package / case
- TSOP-6
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
59 in stock
#C894418
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹35.21 | ₹35.21 |
| 10+ | ₹34.56 | ₹345.60 |
| 30+ | ₹34.12 | ₹1,023.60 |
| 100+ | ₹33.47 | ₹3,347.00 |
1 × ₹35.21
₹35.21
excl. GST
₹41.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SNUP2114UCMR6T1G
₹35.21 for 1 + GST
Specifications
- Clamping Voltage
- 12V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 12A@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 5.5V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 10nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.067 g
Overview
The NUP2114 surge protection is designed to protect high speed data lines from ESD. Ultra−low capacitance and high level of ESD protection makes this device well suited for use in USB 2.0 applications.
Applications
- High Speed Communication Line Protection
- USB 2.0 High Speed Data Line and Power Line Protection
- Monitors and Flat Panel Displays
- MP3
- Gigabit Ethernet
- Notebook Computers
- Digital Video Interface (DVI) and HDMI
Key features
- Low Capacitance 0.8 pF
- Low Clamping Voltage
- Stand Off Voltage: 5 V
- Low Leakage
- ESD Rating of Class 3B (Exceeding 8 kV) per Human Body model and Class C (Exceeding 400 V) per Machine Model
- Protection for the Following IEC Standards: IEC 61000−4−2 Level 4 ESD Protection
- UL Flammability Rating of 94 V-0
- S Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
