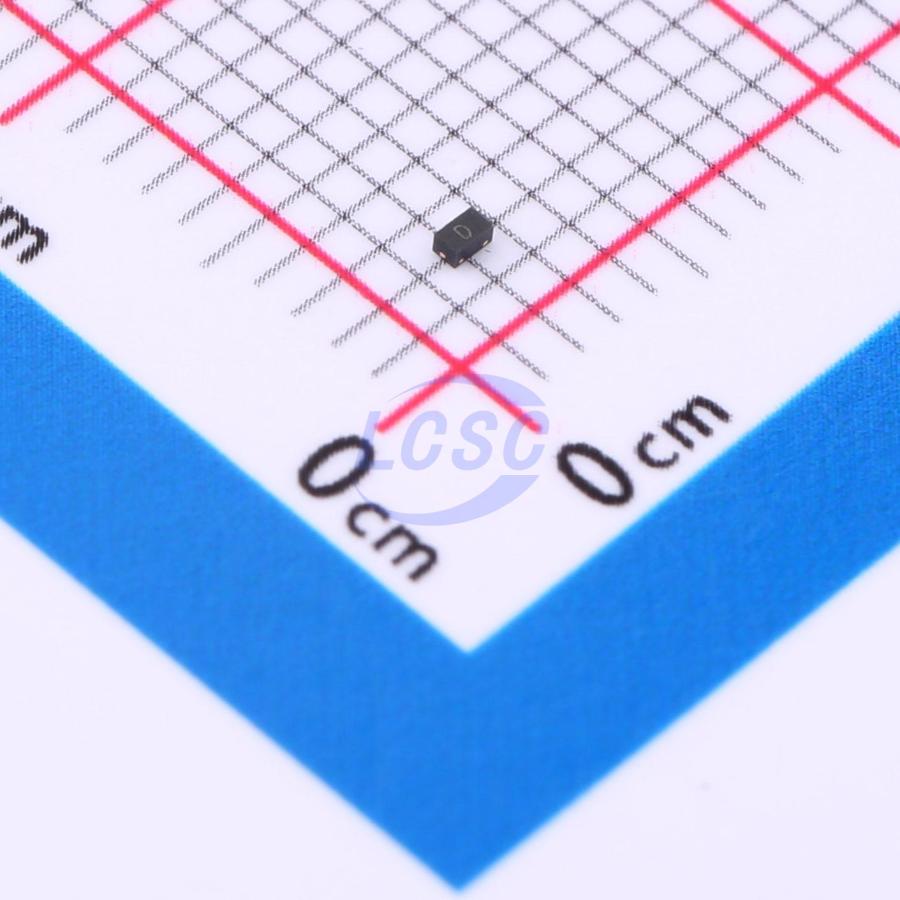

SP0402B-ELC-01ETG
14VC Clamp 2.5A@8/20us Ipp TVS DIODE DFN1006-2
TVS DIODE 14VC DFN1006-2
- Manufacturer
- Littelfuse
- Manufacturer part #
- SP0402B-ELC-01ETG
- Store part #
- C1974049
- Package / case
- DFN1006-2
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
145 in stock
#C1974049
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.07 | ₹195.35 |
| 50+ | ₹31.42 | ₹1,571.00 |
| 150+ | ₹28.15 | ₹4,222.50 |
| 500+ | ₹24.05 | ₹12,025.00 |
| 2,500+ | ₹22.24 | ₹55,600.00 |
| 5,000+ | ₹21.14 | ₹1,05,700.00 |
5 × ₹39.07
₹195.35
excl. GST
₹230.51 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
SP0402B-ELC-01ETG
₹195.35 for 5 + GST
Specifications
- Clamping Voltage
- 14V
- Operating Temperature
- -30℃~+85℃
- Peak Pulse Current (Ipp)
- 2.5A@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 9.6V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 7V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
The Enhanced ESD Discrete TVS Series provides ultra low capacitance unidirectional and bidirectional ESD protection for high speed serial interfaces. Ultra low capacitance permits excellent signal integrity on consumer electronics interfaces, such as USB 3.1, HDMI 2.0, DisplayPort, and V-by-One. Providing in excess of 22kV contact ESD protection (IEC 61000-4-2) while maintaining extremely low leakage and dynamic resistance. Offered in the industry’s popular footprints (0402 and 0201), the series sets higher standards for signal integrity and usability.
Applications
- Ultra-high speed data lines
- USB 3.1, 3.0, 2.0
- HDMI 2.0, 1.4a, 1.3
- DisplayPort
- V-by-One
- LVDS interfaces
- Consumer, mobile and portable electronics
- Tablet PC and external storage with high speed interfaces
- Applications requiring high ESD performance in small packages
Key features
- 0.15 pF TYP bidirectional
- 0.30 pF TYP unidirectional
- ESD, IEC 61000-4-2, ±22kV contact, ±22kV air
- Low clamping voltage of 14V @ Ipp = 2.5A (Bidirectional) (tp = 8/20μs)
- Low profile 0201 and 0402 DFN packages
- Facilitates excellent signal integrity
- ELV Compliant
- Halogen free, Lead free and RoHS compliant
