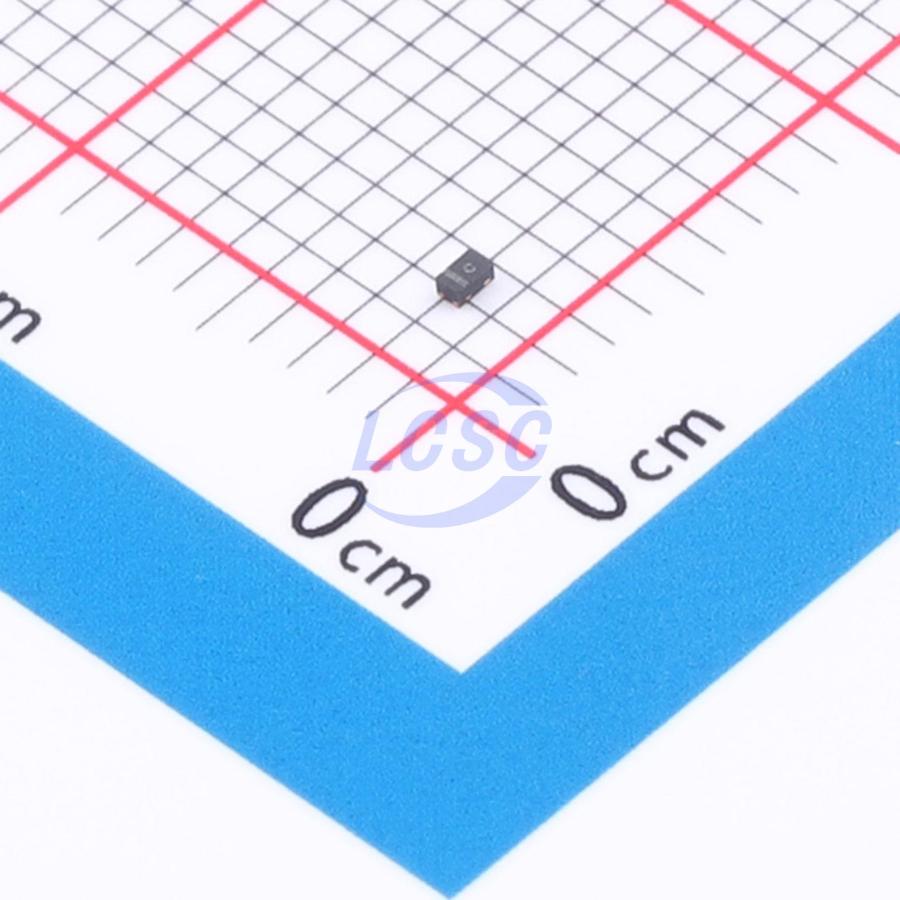

SP0402U-ULC-02ETG
9.2VC Clamp 2A@8/20us Ipp ESD DIODE DFN-2(1x0.60)
ESD DIODE 5VWM 9.2VC DFN-2(1x0.60)
- Manufacturer
- Littelfuse
- Manufacturer part #
- SP0402U-ULC-02ETG
- Store part #
- C3706990
- Package / case
- DFN1006-3
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C3706990
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.15 | ₹80.75 |
| 50+ | ₹15.89 | ₹794.50 |
| 150+ | ₹15.70 | ₹2,355.00 |
| 500+ | ₹15.52 | ₹7,760.00 |
5 × ₹16.15
₹80.75
excl. GST
₹95.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
SP0402U-ULC-02ETG
₹80.75 for 5 + GST
Specifications
- Clamping Voltage
- 9.2V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 2A@8/20us
- Number of Channels
- Four channels
- Voltage - Breakdown
- 9V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 25nA
- Reverse Stand-Off Voltage (Vrwm)
- 7V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.01 g
Overview
This Ultra Low Capacitance Diode Arrays Series provides signal integrity-preserving unidirectional ESD protection for high speed serial interfaces. The SOD 883 and the standard 2.4 mm×1.0 mm packaging options provide significant PCB layout space savings and reduces trace layout complexity. This component provides both air and contact ESD protection (IEC 61000-4-2) of 20 kV while maintaining an extremely low leakage current and low dynamic resistance. Due to its low off-state capacitance, this series is compatible with high speed interfaces and thus maintains high bandwidth signal integrity.
Applications
- Tablet PC and external storage with high speed interfaces
- Applications requiring high ESD performance in small packages
- USB 3.1, 3.0, 2.0
- HDMI 2.0, 1.4a, 1.3
- DisplayPort
- V-by-One
- Thunderbolt (Light Peak)
- LVDS interfaces
- Consumer, mobile and portable electronics
Key features
- 0.20 pF TYP capacitance
- ESD, IEC 61000-4-2, ±20 kV contact, ±20 kV air
- Low clamping voltage of 9.2V @ |PP = 2.0A (tP = 8/20 μs)
- Low profile DFN array packages
- Facilitates excellent signal integrity
- ELV Compliant
- Halogen free, Lead free and RoHS compliant
- AEC-Q101 qualified
