TECH PUBLICDatasheet (PDF)

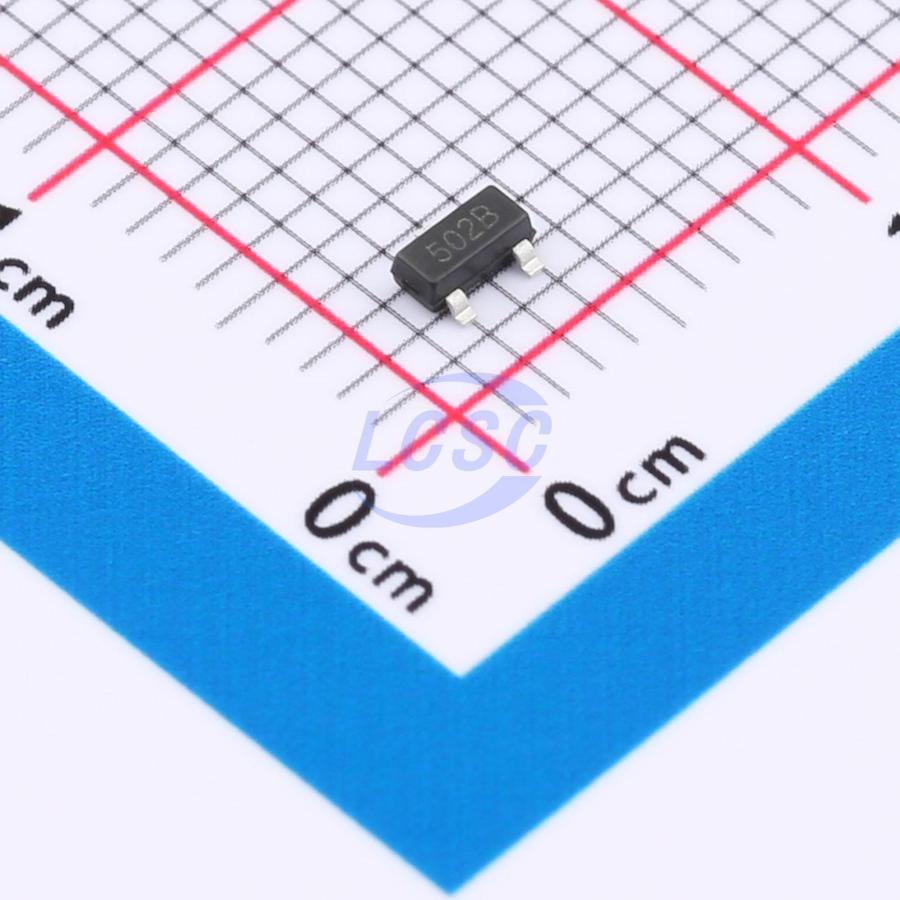

SP0502BAHTG
18VC Clamp 8A@8/20us Ipp SOT-23
SOT-23RoHSActive
5.5VWM 18VC SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SP0502BAHTG
- Store part #
- C19829477
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,770 in stock
#C19829477
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.95 | ₹69.50 |
| 100+ | ₹5.57 | ₹557.00 |
| 300+ | ₹4.88 | ₹1,464.00 |
| 3,000+ | ₹4.19 | ₹12,570.00 |
| 6,000+ | ₹3.78 | ₹22,680.00 |
| 9,000+ | ₹3.57 | ₹32,130.00 |
10 × ₹6.95
₹69.50
excl. GST
₹82.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SP0502BAHTG
₹69.50 for 10 + GST
Specifications
- Clamping Voltage
- 18V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 8A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 150W@8/20us
- Voltage - Breakdown
- 6.5V
- Reverse Leakage Current (Ir)
- 100nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
Applications
- USB Power & Data Line Protection
- Monitors and Flat Panel Displays
- I²C Bus Protection
- Portable Instrumentation
- Set Top Box
Key features
- 150 Watts peak pulse power (tp = 8/20μs)
- Transient protection for high speed data lines to IEC 61000-4-2 (ESD) ±30kV (air), ±30kV (contact) IEC61000-4-4 (EFT) 40A (5/50ns)
- Working voltages: 5.5V
- Protects one bidirectional line or two unidirectional lines
- Low operating and clamping voltages
- Solid-state silicon avalanche technology
