TECH PUBLICDatasheet (PDF)

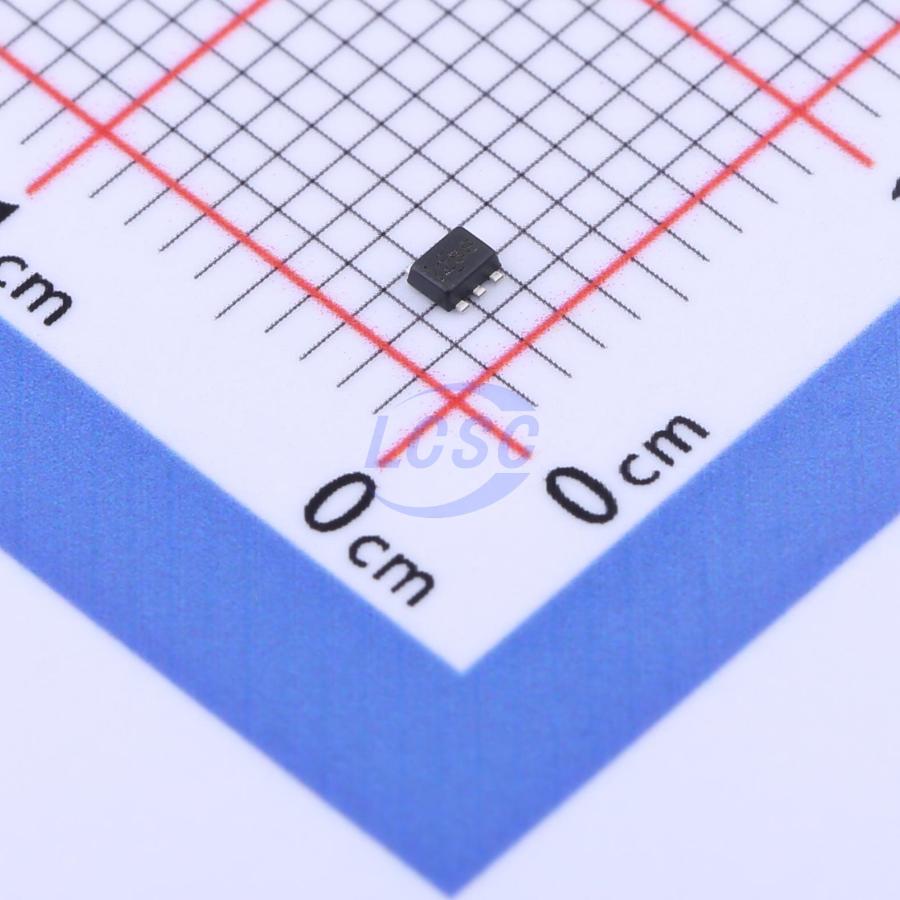

SP1001-04XTG
nan
SOT-5X3-5RoHSActive
5VWM 12VC SOT(5x3)
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SP1001-04XTG
- Store part #
- C2987052
- Package / case
- SOT-5X3-5
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,745 in stock
#C2987052
Stock & price checked 15 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.55 | ₹57.75 |
| 50+ | ₹9.25 | ₹462.50 |
| 150+ | ₹8.10 | ₹1,215.00 |
| 500+ | ₹7.24 | ₹3,620.00 |
| 2,500+ | ₹5.77 | ₹14,425.00 |
| 4,000+ | ₹5.42 | ₹21,680.00 |
5 × ₹11.55
₹57.75
excl. GST
₹68.15 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SP1001-04XTG
₹57.75 for 5 + GST
Specifications
- Clamping Voltage
- 12V
- Operating Temperature
- -55℃~+150℃
- Number of Channels
- Four channels
- Voltage - Breakdown
- 6.5V
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.022 g
Overview
Applications
- USB 2.0 and USB 3.0 Ports
- USB OTG
- Digital video interface(DVI)
- Monitor and Flat Panel Displays
- PCI Express and Serial SATA Ports
- Gigabit Ethernet
- IEEE 1394 firewire ports
- Consumer products (STB, DVD, DSC, DVC...)
Key features
- Ultra low capacitance: 3.5pF(Max)
- Ulitra low leakage: nA level
- Low operating voltage: 5.5V
- Low clamping voltage
- Complies with following standards: -IEC 61000-4-2(ESD) immunity test Air discharge: ±20kV Contact discharge: ±15kV - IEC61000-4-4 (EFT) 40A (5/50ns)
- ROHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPESD4002X5#C2987049TECH PUBLIC · SOT-5X3-5 | TECH PUBLIC | SOT-5X3-5 | 1,305 | ₹17.95 · 1,305 in stock | View |
