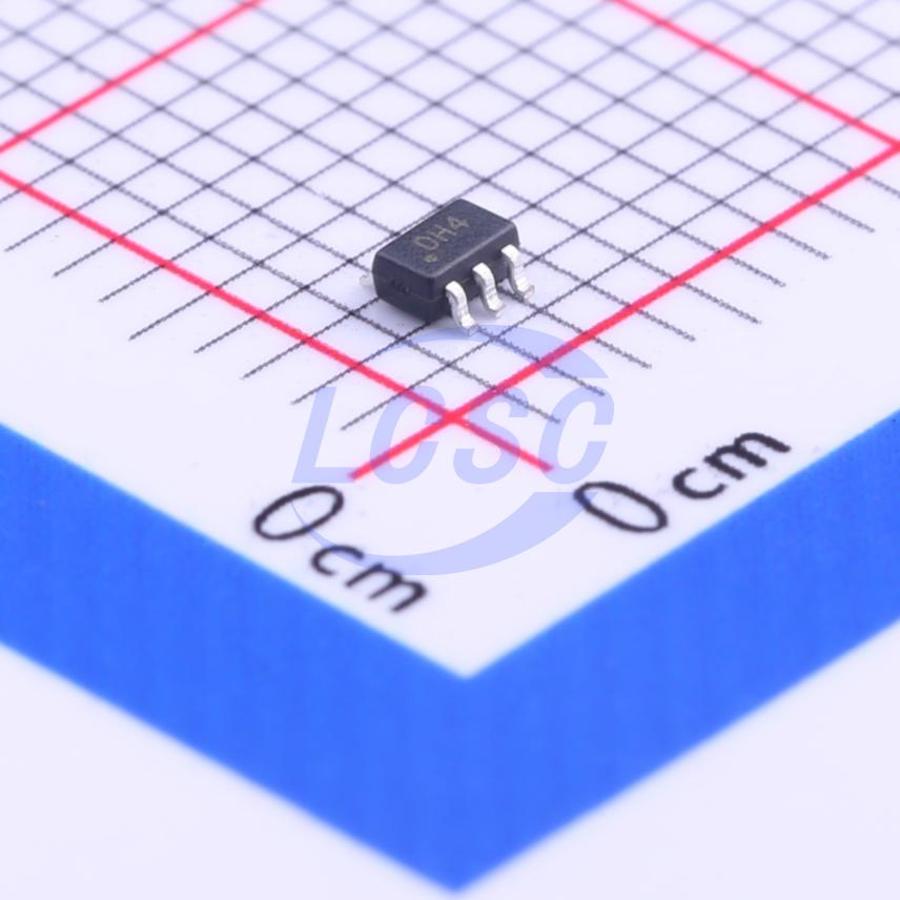

SP3001-04JTG
13VC Clamp 2.5A@8/20us Ipp ESD DIODE SOT-363-6(SC-70)
- Manufacturer
- Littelfuse
- Manufacturer part #
- SP3001-04JTG
- Store part #
- C207276
- Package / case
- SOT-363-6(SC-70)
- Category
- TVS Diodes
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
685 in stock
#C207276
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.16 | ₹185.80 |
| 50+ | ₹29.49 | ₹1,474.50 |
| 150+ | ₹26.21 | ₹3,931.50 |
| 500+ | ₹22.11 | ₹11,055.00 |
| 3,000+ | ₹20.28 | ₹60,840.00 |
| 6,000+ | ₹19.18 | ₹1,15,080.00 |
5 × ₹37.16
₹185.80
excl. GST
₹219.24 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SP3001-04JTG
₹185.80 for 5 + GST
Specifications
- Clamping Voltage
- 13V
- Peak Pulse Current (Ipp)
- 2.5A@8/20us
- Number of Channels
- Four channels
- type
- ESD
- Reverse Leakage Current (Ir)
- 500nA
- Reverse Stand-Off Voltage (Vrwm)
- 6V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
The SP3001 has ultra low capacitance rail-to rail diodes with an additional zener diode fabricated in a proprietary silicon avalanche technology to protect each I/O pin providing a high level of protection for electronic equipment that may experience destructive electrostatic discharges (ESD). These robust diodes can safely absorb repetitive ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (Level 4, ±8KV contact discharge) without performance degradation. Their very low loading capacitance also makes them ideal for protecting high speed signal pins such as HDMI, DVI, USB2.0, and IEEE 1394.
Applications
- Computer Peripherals
- Mobile Phones
- PDA’s
- Digital Cameras
- Network Hardware/Ports
- Test Equipment
- Medical Equipment
Key features
- Low capacitance of 0.65pF (TYP) per I/O
- ESD protection of ±8KV contact discharge, ±75kV air discharge, (IEC 61000-4-2)
- EFT protection, IEC 61000-4-4, 40A (5/50ns)
- Low leakage current of 0.5μA (MAX) at 5V
- Small SC70 (JEDEC MO203) package saves board space
- Lightning Protection, IEC 61000-4-5, 2nd edition 2.5A (8/20µs)
- RoHS compliant and lead-free
