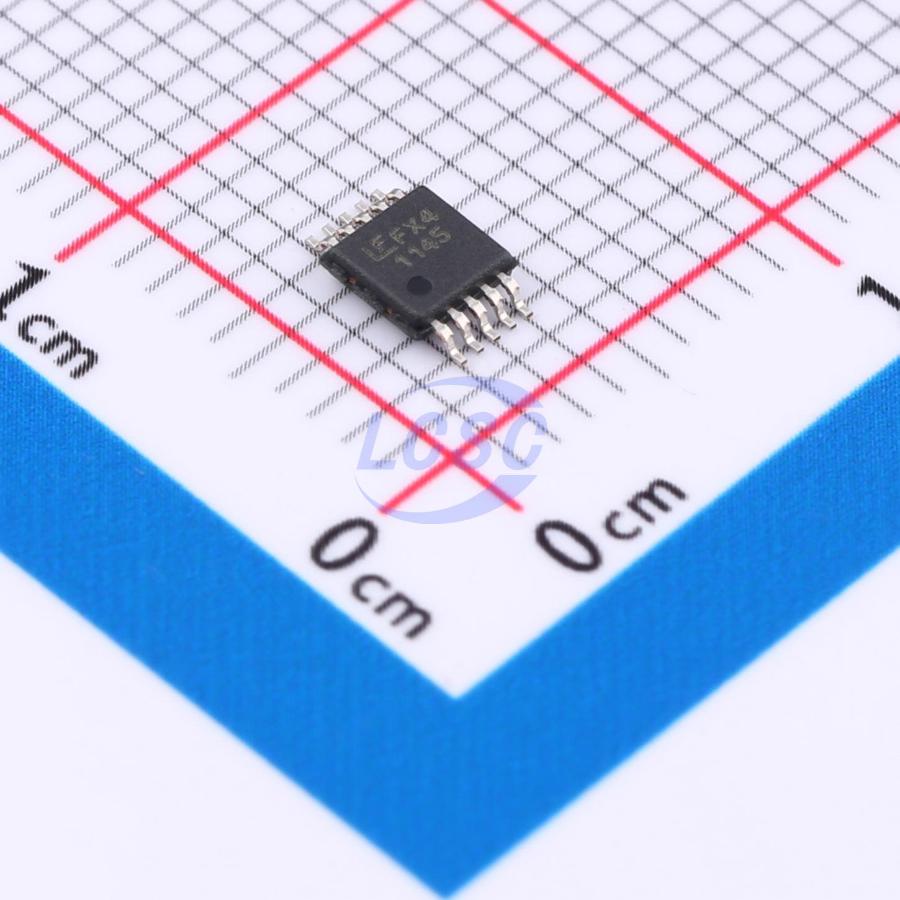

SP3003-04ATG
15VC Clamp 2.5A@8/20us Ipp ESD DIODE MSOP-10
ESD DIODE 6VWM 15VC MSOP-10
- Manufacturer
- Littelfuse
- Manufacturer part #
- SP3003-04ATG
- Store part #
- C207279
- Package / case
- MSOP-10
- Category
- TVS Diodes
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
255 in stock
#C207279
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹50.62 | ₹253.10 |
| 50+ | ₹40.27 | ₹2,013.50 |
| 150+ | ₹35.85 | ₹5,377.50 |
| 500+ | ₹30.32 | ₹15,160.00 |
| 2,500+ | ₹27.86 | ₹69,650.00 |
| 4,000+ | ₹26.38 | ₹1,05,520.00 |
5 × ₹50.62
₹253.10
excl. GST
₹298.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SP3003-04ATG
₹253.10 for 5 + GST
Specifications
- Clamping Voltage
- 15V
- Peak Pulse Current (Ipp)
- 2.5A@8/20us
- Number of Channels
- Four channels
- type
- ESD
- Reverse Leakage Current (Ir)
- 500nA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 6V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.1 g
Overview
The SP3003 has ultra low capacitance rail-to-rail diodes with an additional protection diode fabricated in a proprietary silicon avalanche technology to protect each I/O pin providing a high level of protection for electronic equipment that may experience destructive electrostatic discharges (ESD). These robust diodes can safely absorb repetitive ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (Level 4, ±8 KV contact discharge and ± 75 kV air discharge without performance degradation. Their very low loading capacitance also makes them ideal for protecting high speed signal pins such as HDMI, DVI, USB2.0, and IEEE 1394.
Applications
- LCD/ PDP TVs
- Set Top Boxes
- DVD Players
- Mobile Phones
- Desktops
- Notebooks
- MP3/ PMP
- Computer Peripherals
- Digital Cameras
Key features
- ESD protection of ±8 KV contact discharge, ± 75 kV air discharge, (IEC 61000-4-2)
- EFT protection, IEC 61000-4-4, 40A (5/50ns)
- Lightning, 2.5A (8/20μs as defined in IEC 61000-4-5 2nd Edition)
- Low capacitance of 0.65pF (TYP) per I/O
- Low leakage current of 0.5μA (MAX) at 5V
- Complete line of small packaging helps save board space (SC70, SOT553, SOT563, MSOP10, µDFN-6L)
- AEC-Q101 qualified
- RoHS compliant and leadfree
- Moisture Sensitivity Level(MSL-1)
