TECH PUBLICDatasheet (PDF)

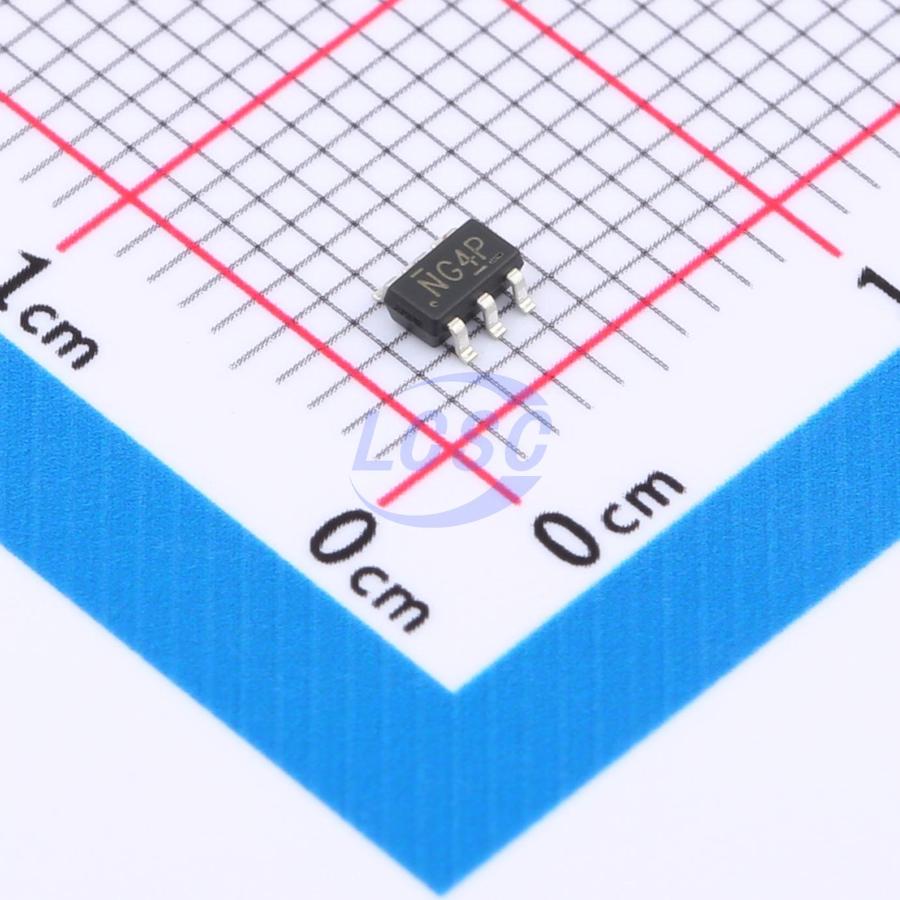

SP3012-04HTG
15VC Clamp 4A@8/20us Ipp SOT-23-6
SOT-23-6RoHSActive
5VWM 15VC SOT-23-6
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SP3012-04HTG
- Store part #
- C19829409
- Package / case
- SOT-23-6
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,500 in stock
#C19829409
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.17 | ₹91.70 |
| 100+ | ₹7.20 | ₹720.00 |
| 300+ | ₹6.22 | ₹1,866.00 |
| 3,000+ | ₹5.48 | ₹16,440.00 |
| 6,000+ | ₹4.90 | ₹29,400.00 |
| 9,000+ | ₹4.59 | ₹41,310.00 |
10 × ₹9.17
₹91.70
excl. GST
₹108.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SP3012-04HTG
₹91.70 for 10 + GST
Specifications
- Clamping Voltage
- 11V;15V;18V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 4A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 300W@8/20us
- Number of Channels
- Four channels
- Voltage - Breakdown
- 6V
- Reverse Leakage Current (Ir)
- 80nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.035 g
Overview
Applications
- USB 2.0 and USB 3.0 Ports
- USB OTG
- Digital video interface (DVI)
- Monitor and Flat Panel Displays
- PCI Express and Serial SATA Ports
- Gigabit Ethernet
- IEEE 1394 firewire ports
- Consumer products (STB, DVD, DSC, DVC..)
Key features
- Ultra low capacitance: 0.3pF typical (/O to I/0)
- Ultralow leakage: nA level
- Low operating voltage: 5V
- Low clamping voltage
- Up to 4 data lines and one power line protects
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±25kV Contact discharge: ±20kV
- IEC 61000 - 4 - 4 (EFT) 40A (5/50ns)
- IEC 61000 - 4 - 5 (Lightning): 4.0A (8/20μs)
- ROHS Compliant
