TECH PUBLICDatasheet (PDF)

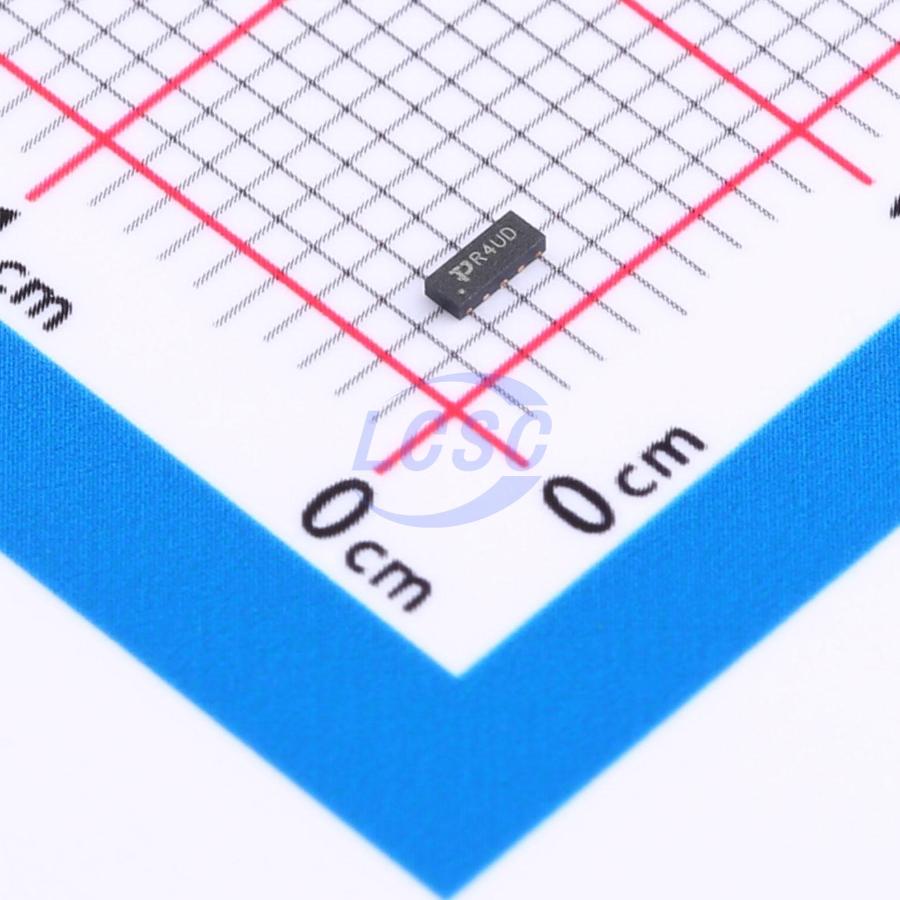

SP3012-04UTG
13VC Clamp TVS DIODE DFN2510-10
DFN2510-10RoHSActive
TVS DIODE 5VWM 13VC DFN2510-10
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SP3012-04UTG
- Store part #
- C2987148
- Package / case
- DFN2510-10
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,370 in stock
#C2987148
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.47 | ₹94.70 |
| 100+ | ₹7.63 | ₹763.00 |
| 300+ | ₹6.72 | ₹2,016.00 |
| 3,000+ | ₹5.58 | ₹16,740.00 |
| 6,000+ | ₹5.04 | ₹30,240.00 |
| 9,000+ | ₹4.76 | ₹42,840.00 |
10 × ₹9.47
₹94.70
excl. GST
₹111.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SP3012-04UTG
₹94.70 for 10 + GST
Specifications
- Clamping Voltage
- 13V
- Number of Channels
- Four channels
- Voltage - Breakdown
- 7.5V
- type
- TVS
- Reverse Leakage Current (Ir)
- 10nA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- ECL99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
Applications
- High Definition Multimedia Interface (HDMI)
- Digital Visual Interface (DVI)
- Unified Display Interface (UDI)
- MDDI Ports
- PCI Express
- Serial ATA
Key features
- Ultra low capacitance: 0.3pF typical (I/O to I/O)
- Ultra low leakage: nA level
- Low operating voltage: 5V
- Low clamping voltage
- Up to 4 data lines and one power line protects
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±25kV
- IEC61000-4-5 (Lightning) : 4.5A(8/20μs)
- IEC61000-4-4 (EFT) 40A (5/50ns)
