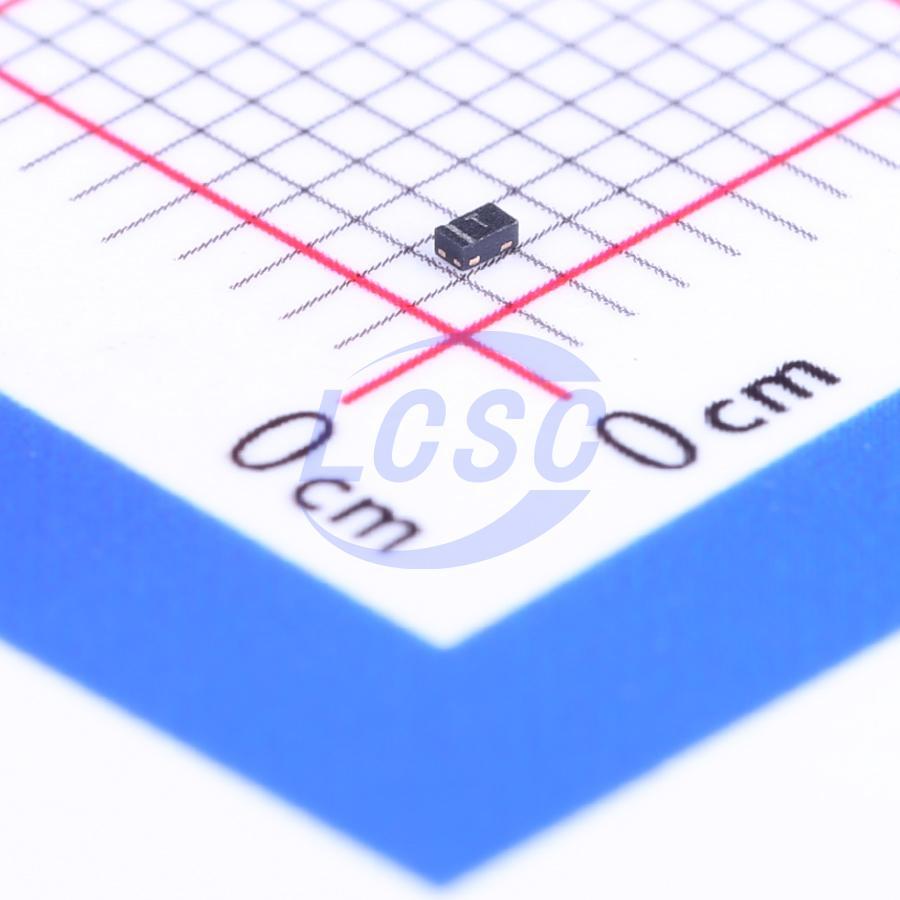

SP3030-01ETG
10VC Clamp 3A@8/20us Ipp ESD DIODE SOD-882
ESD DIODE 5VWM 10VC SOD-882
- Manufacturer
- Littelfuse
- Manufacturer part #
- SP3030-01ETG
- Store part #
- C126841
- Package / case
- SOD-882
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
23,025 in stock
#C126841
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.21 | ₹56.05 |
| 50+ | ₹8.81 | ₹440.50 |
| 150+ | ₹7.62 | ₹1,143.00 |
| 500+ | ₹6.72 | ₹3,360.00 |
| 2,500+ | ₹5.99 | ₹14,975.00 |
| 5,000+ | ₹5.36 | ₹26,800.00 |
5 × ₹11.21
₹56.05
excl. GST
₹66.14 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
SP3030-01ETG
₹56.05 for 5 + GST
Specifications
- Clamping Voltage
- 10V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 3A@8/20us
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 100nA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.01 g
Overview
The SP3030 includes low capacitance rail to rail diodes with an additional Zener diode to provide protection for electronic equipment that may experience destructive electrostatic discharges (ESD). These robust diodes can safely absorb repetitive ESD strikes above the maximum level specifed in the IEC61000-4-2 international standard (±20kV contact discharge) without performance degradation. The low loading capacitance makes it ideal for protecting high speed data lines such as HDMI, DVI, USB2.0, USB3.0 and eSATA.
Applications
- Tablets
- Digital Cameras
- Ultrabook
- MP3/ PMP
- eReader
- Set Top Boxes
- Smart Phones
- Portable Medical
Key features
- ESD protection of ±20kV contact discharge, ±30kV air discharge, (IEC61000-4-2)
- EFT protection, IEC61000-4-4, 40A (tp=5/50ns)
- Lightning Protection, IEC61000-4-5, 3A (tp=8/20μs)
- Low capacitance of 0.5pF @VR=0V
- Low leakage current of 0.1μA at 5V
- Small SOD882 packaging helps save board space
- AEC-Q101 qualifed (SOD882 package)
