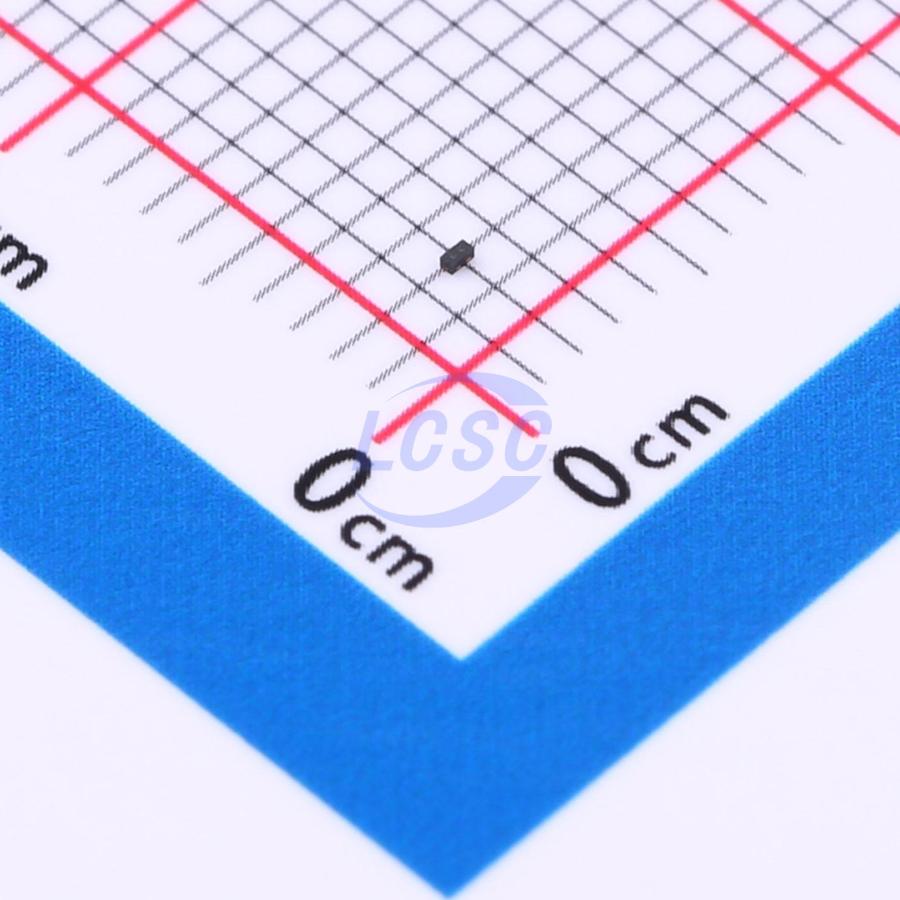

SP3213-01UTG
18VC Clamp 2A@8/20us Ipp TVS DIODE DFN0603-2
TVS DIODE 5VWM 18VC DFN0603-2
- Manufacturer
- Littelfuse
- Manufacturer part #
- SP3213-01UTG
- Store part #
- C3712066
- Package / case
- DFN0603-2
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
855 in stock
#C3712066
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.82 | ₹134.10 |
| 50+ | ₹21.26 | ₹1,063.00 |
| 150+ | ₹18.89 | ₹2,833.50 |
| 500+ | ₹15.93 | ₹7,965.00 |
| 2,500+ | ₹14.61 | ₹36,525.00 |
| 5,000+ | ₹13.81 | ₹69,050.00 |
5 × ₹26.82
₹134.10
excl. GST
₹158.24 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30,000 per reel
SP3213-01UTG
₹134.10 for 5 + GST
Specifications
- Clamping Voltage
- 18V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 2A@8/20us
- Voltage - Breakdown
- 6.2V
- type
- TVS
- Reverse Leakage Current (Ir)
- 20nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 30,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
The SP3213 is a bidirectional TVS Diode that provides ultra low capacitance and a high level of protection for electronic equipment that may experience destructive electrostatic discharges (ESD). The typical capacitance of 0.09pF helps ensure signal integrity on the most challenging consumer electronics interfaces such as USB 3.2, 3.1, HDMI 2.1, 2.0, DisplayPort, Thunderbolt, and v-by-One. It can safely absorb repetitive ESD strikes at ± 12kV (contact discharge, IEC 61000 - 4 - 2) without performance degradation and safely dissipate 2A of 8 / 20μs surge current (IEC 61000 - 4 - 5 2nd edition).
Applications
- Ultra - high speed data lines
- USB 3.2, 3.1, 3.0, and 2.0
- HDMI 2.1, 2.0, 1.4a, 1.3
- DisplayPort
- Thunderbolt (Light Peak)
- V - by - One
- LVDS interfaces
- Consumer, mobile and portable electronics
- Tablet PC and external storage with high speed interfaces
Key features
- ESD, IEC 61000 - 4 - 2, ± 12kV contact, ± 18kV air - EFT, IEC 61000 - 4 - 4, 40A (5/50ns) - Lightning, 2A (8/20 as defined in IEC 61000 - 4 - 5 2nd Edition) - Low leakage current of 0.02pA(TYP) at 5V
- Space efficient 0201 footprint
- AEC - Q101 qualified and PPAP capable
- Halogen free, lead free and RoHS compliant
- Moisture Sensitivity Level(MSL - 1)
