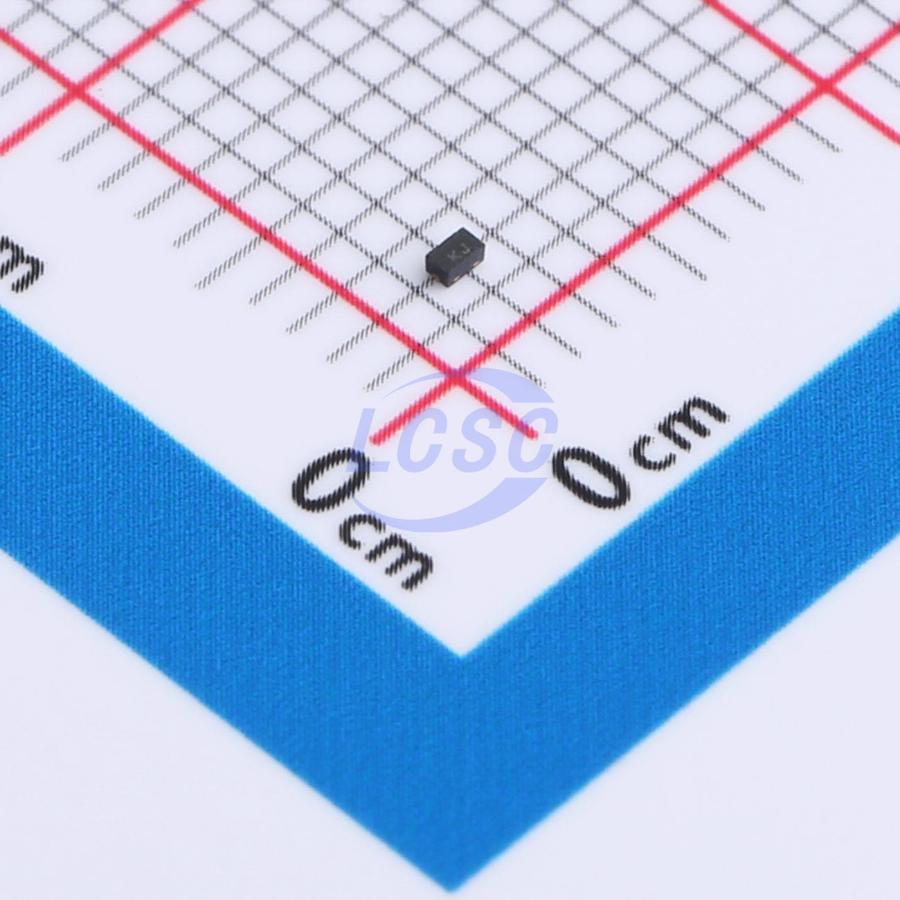

Littelfuse

SP4322-01ETG

8VC Clamp ESD DIODE SOD-882

SOD-882ROHS3 CompliantActive

ESD DIODE 5VWM 8VC SOD-882

Manufacturer: Littelfuse
Manufacturer part #: SP4322-01ETG
Store part #: C6818811
Package / case: SOD-882
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

95 in stock

#C6818811

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹29.34	₹146.70
50+	₹28.99	₹1,449.50
150+	₹28.75	₹4,312.50
500+	₹28.51	₹14,255.00

Quantity (min 5, multiples of 5)

5 × ₹29.34

₹146.70

excl. GST

₹173.11 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 10,000 per reel

SP4322-01ETG

₹146.70 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 8V
Peak Pulse Current (Ipp): 11A@8/20us
Voltage - Breakdown: 9V
type: ESD
Reverse Leakage Current (Ir): 1nA
Reverse Stand-Off Voltage (Vrwm): 5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 10,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.1 g

Overview

SP4322 is specifically designed to protect high-speed interfaces against ElectroStatic Discharge (ESD), such as DisplayPort interfaces and USB 3.1 Gen 1. The signal line is protected by low line capacitance of 0.4 pF typical. SP4322 can absorb repetitive ESD strikes above the maximum level specified in the IEC 61000-4-2 international standard without performance degradation and safely dissipate 11A of 8/20μs surge current (IEC 61000-4-5 2nd edition). Excellent low capacitance, clamping capability, low leakage, and fast response time make this part an ideal solution for protecting high speed data lines.
