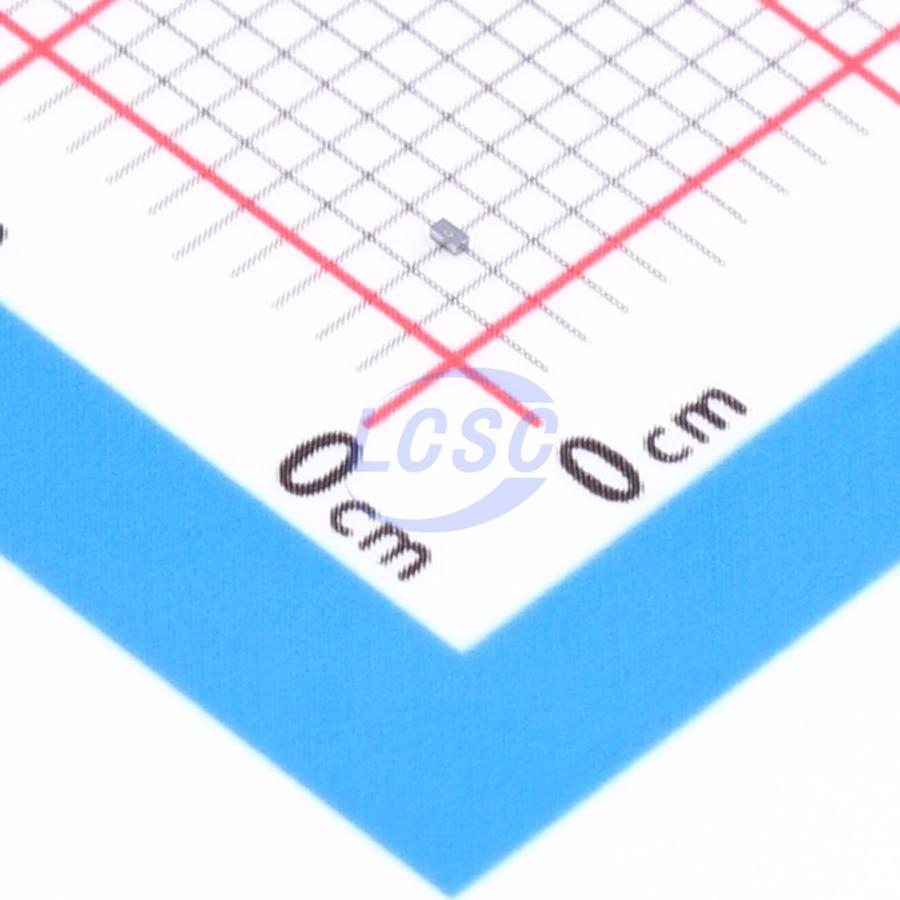

SP4337-01WTG
7VC Clamp 7A@8/20us Ipp TVS DIODE 0201
- Manufacturer
- Littelfuse
- Manufacturer part #
- SP4337-01WTG
- Store part #
- C3705682
- Package / case
- 0201
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
75 in stock
#C3705682
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.98 | ₹184.90 |
| 50+ | ₹30.69 | ₹1,534.50 |
| 150+ | ₹28.01 | ₹4,201.50 |
| 500+ | ₹24.65 | ₹12,325.00 |
| 2,500+ | ₹23.15 | ₹57,875.00 |
| 5,000+ | ₹22.25 | ₹1,11,250.00 |
5 × ₹36.98
₹184.90
excl. GST
₹218.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
SP4337-01WTG
₹184.90 for 5 + GST
Specifications
- Clamping Voltage
- 7V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 7A@8/20us
- Voltage - Breakdown
- 7.8V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.4 g
Overview
The SP4337 is designed to protect high-speed interfaces against ESD, such as HDMI, DisplayPort, Thunderbolt, and USB 3.1 Gen 1. Signal lines are protected by TVS diodes with low line capacitance of typically 0.18 pF. The SP4337 can safely absorb repetitive ESD strikes up to ±15 kV contact discharge, exceeding Level 4 (±8 kV contact discharge) of the IEC 61000-4-2 standard. Its excellent low capacitance, clamping capability, low leakage, and fast response time make this device an ideal solution for protecting high-speed data lines.
Applications
- USB 4.0
- HDMI
- DisplayPort
- Thunderbolt
- 2.5G/5G/10G Ethernet
Key features
- ESD per IEC 61000-4-2: ±15 kV contact discharge, ±15 kV air discharge
- EFT per IEC 61000-4-4: 40 A (5/50 ns)
- Lightning surge: 7 A (8/20 waveform as defined in IEC 61000-4-5 Edition 2)
- Low capacitance: 0.18 pF (typical, at VR = 0 V)
- Space-saving 0201 package
- Halogen-free, lead-free, RoHS compliant
