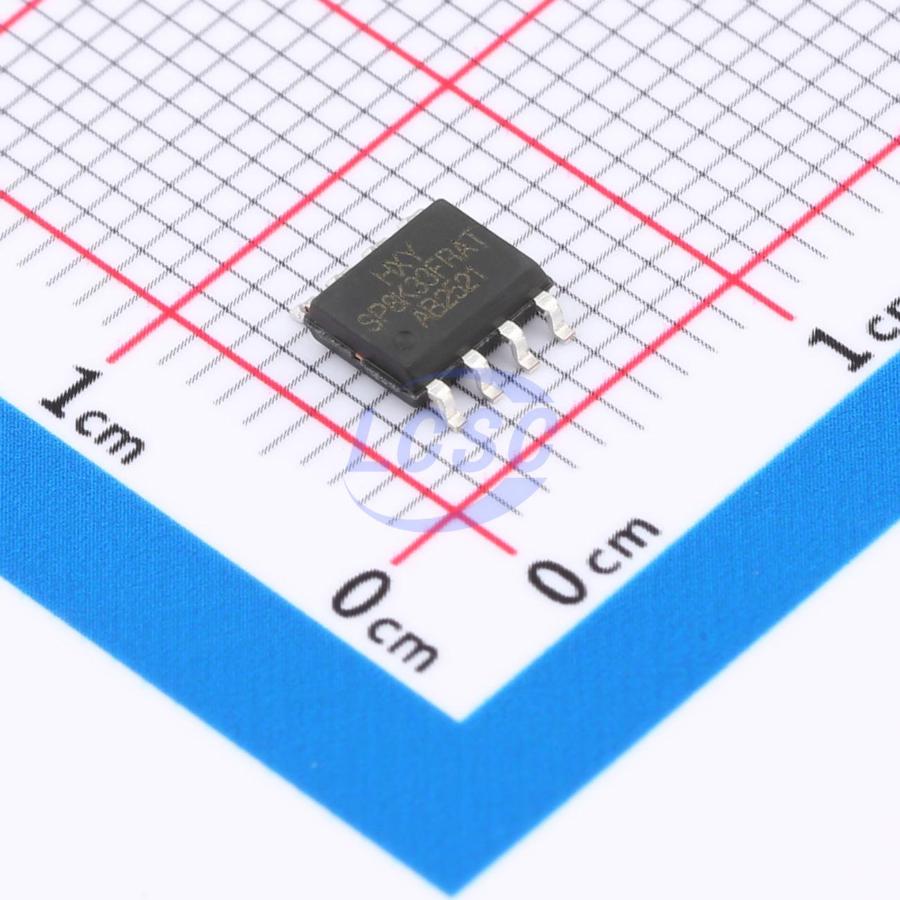

SP8K33FRATB-HXY
60V 6.5A 2.1W 32mΩ@10V 2 N-Channel N-Channel SOP-8 Single FETs, MOSFETs
SOP-8RoHSActive
MOSFET N-CH 60V 6.5A SOP-8
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- SP8K33FRATB-HXY
- Store part #
- C49256926
- Package / case
- SOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
187 in stock
#C49256926
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹77.54 | ₹77.54 |
| 10+ | ₹63.80 | ₹638.00 |
| 30+ | ₹56.70 | ₹1,701.00 |
| 100+ | ₹49.84 | ₹4,984.00 |
| 500+ | ₹45.75 | ₹22,875.00 |
| 1,000+ | ₹43.61 | ₹43,610.00 |
1 × ₹77.54
₹77.54
excl. GST
₹91.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SP8K33FRATB-HXY
₹77.54 for 1 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 6.5A
- Output Capacitance(Coss)
- 155pF
- Ciss-Input Capacitance
- 1.92nF
- Pd - Power Dissipation
- 2.1W
- Reverse Transfer Capacitance (Crss)
- 116pF
- RDS(on)
- 32mΩ@10V
- Number
- 2 N-Channel
- Gate Charge(Qg)
- 50nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.114 g
