InfineonDatasheet (PDF)

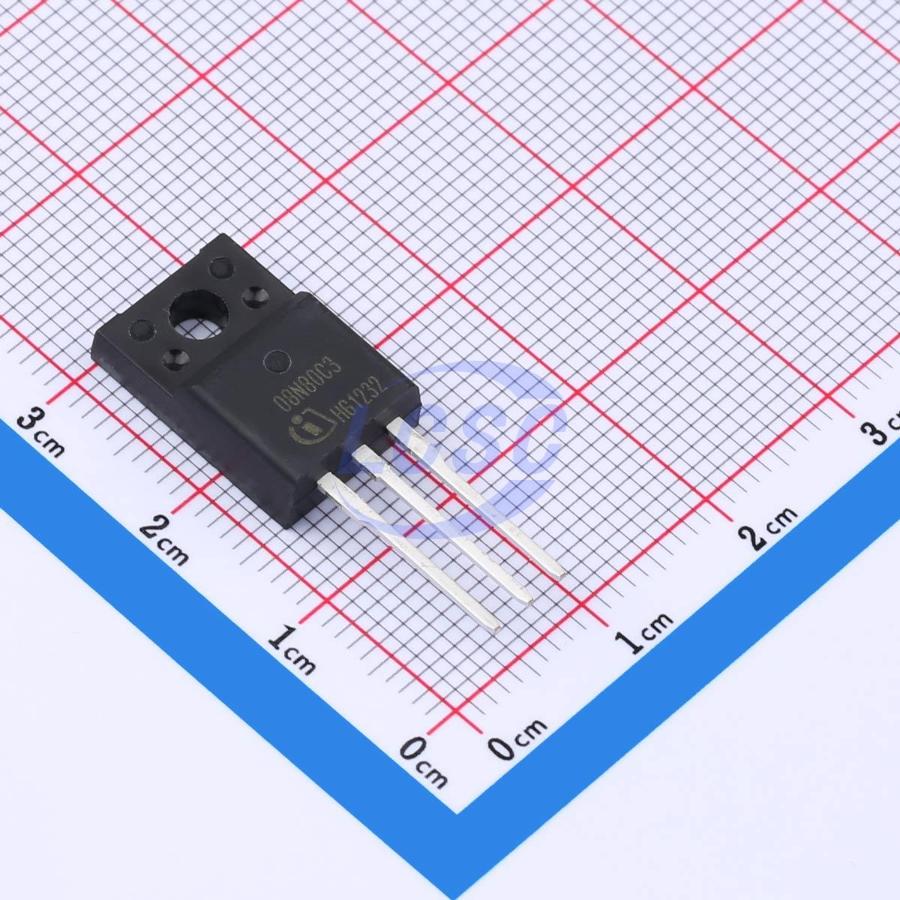

SPA08N80C3XKSA1
800V 8A 40W 650mΩ@10V 1 N-channel N-Channel TO-220-3 Single FETs, MOSFETs RoHS
TO-220-3ROHS3 CompliantActive
MOSFET N-CH 800V 8A TO-220-3
- Manufacturer
- Infineon
- Manufacturer part #
- SPA08N80C3XKSA1
- Store part #
- C672372
- Package / case
- TO-220-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C672372
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹430.76 | ₹430.76 |
| 30+ | ₹417.27 | ₹12,518.10 |
1 × ₹430.76
₹430.76
excl. GST
₹508.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
SPA08N80C3XKSA1
₹430.76 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 800V
- Output Capacitance(Coss)
- 46pF
- Current - Continuous Drain(Id)
- 8A
- Ciss-Input Capacitance
- 1.1nF
- Pd - Power Dissipation
- 40W
- RDS(on)
- 650mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 45nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.1 g
Overview
Applications
- Industrial applications with high DC bus voltage
- Switching applications (e.g., active clamp forward converter)
Key features
- Revolutionary new high-voltage technology
- Extremely high dv/dt rating
- High peak current capability
- JEDEC qualified for target applications
- Lead-free pin plating; RoHS compliant
- Ultra-low gate charge
- Ultra-low effective capacitance
- Fully isolated package (2500 VAC; 1 minute)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | R8010ANX#C669852ROHM · TO-220 | ROHM | TO-220 | 10 | ₹591.83 · 10 in stock | View |
 | IXFP14N85XM#C27531828Littelfuse/IXYS · TO-220 | Littelfuse/IXYS | TO-220 | 160 | ₹789.45 · 160 in stock | View |
| IPP80R280P7#C537259Infineon · TO-220-3 | Infineon | TO-220-3 | 1 | ₹426.65 · 1 in stock | View | |
 | IPP80R360P7#C537260Infineon · TO-220-3 | Infineon | TO-220-3 | 31 | ₹417.17 · 31 in stock | View |
 | STP13N80K5#C513089ST · TO-220 | ST | TO-220 | 1 | ₹1,087.16 · 1 in stock | View |
