VBsemi ElecDatasheet (PDF)

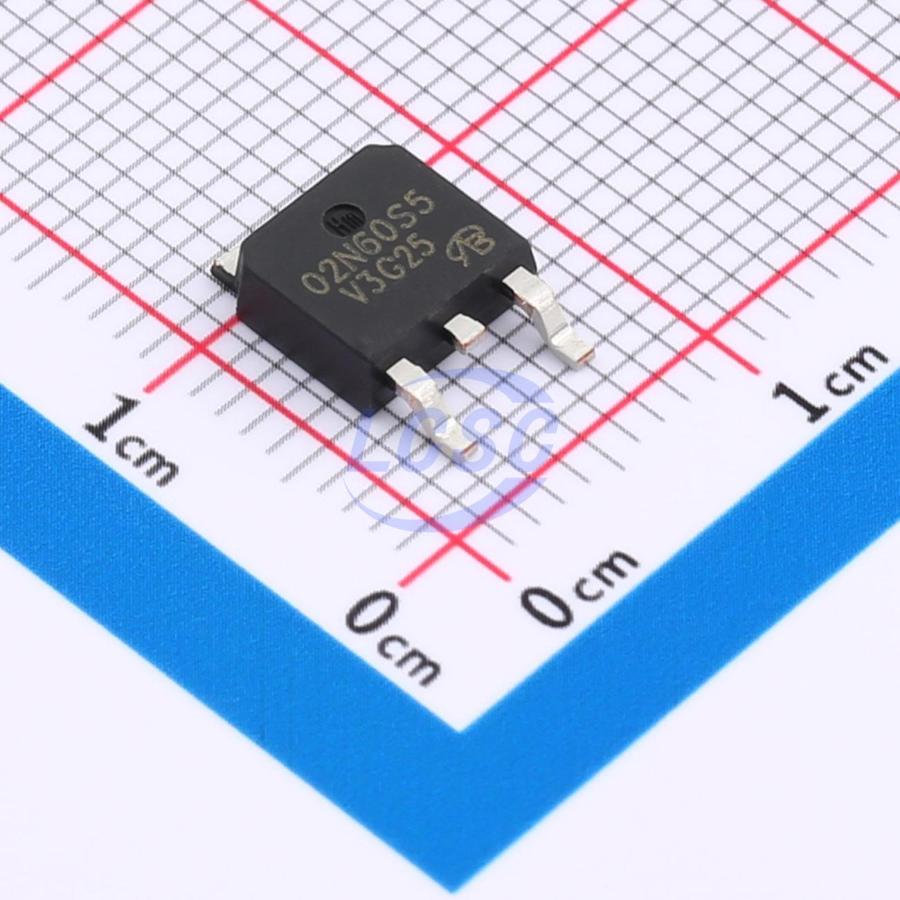

SPD02N60S5-VB
N-Channel 650V 4.5A 60W Surface Mount TO-252
TO-252ROHS CompliantActive
MOSFET N-CH 650V 4.5A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SPD02N60S5-VB
- Store part #
- C7525100
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
64 in stock
#C7525100
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹75.41 | ₹75.41 |
| 10+ | ₹59.76 | ₹597.60 |
| 30+ | ₹53.25 | ₹1,597.50 |
| 100+ | ₹44.77 | ₹4,477.00 |
| 500+ | ₹41.08 | ₹20,540.00 |
| 1,000+ | ₹38.90 | ₹38,900.00 |
1 × ₹75.41
₹75.41
excl. GST
₹88.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SPD02N60S5-VB
₹75.41 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Output Capacitance(Coss)
- 177pF
- Current - Continuous Drain(Id)
- 4.5A
- Ciss-Input Capacitance
- 1.417nF
- Pd - Power Dissipation
- 60W
- Reverse Transfer Capacitance (Crss)
- 7pF
- RDS(on)
- 2.1Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 48nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.35 g
Overview
Applications
- Load switch
Key features
- Low Gate Charge Qg Results in Simple Drive Requirement Available
- Improved Gate, Avalanche and Dynamic dV/dt Ruggedness
- Fully Characterized Capacitance and Avalanche Voltage and Current
- Compliant to RoHS directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VBE165R04#C480951VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 519 | ₹75.08 · 519 in stock | View |
 | 5N65L-TN3-T-VB#C5137448VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 30 | ₹74.79 · 30 in stock | View |
 | IRFR310TRPBF-VB#C5179581VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 8 | ₹74.79 · 8 in stock | View |
| FDD5N60NZTM-VB#C54177040VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 5 | ₹77.73 · 5 in stock | View | |
| FQD3N30TF-VB#C54177052VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 5 | ₹77.73 · 5 in stock | View | |
