VBsemi ElecDatasheet (PDF)

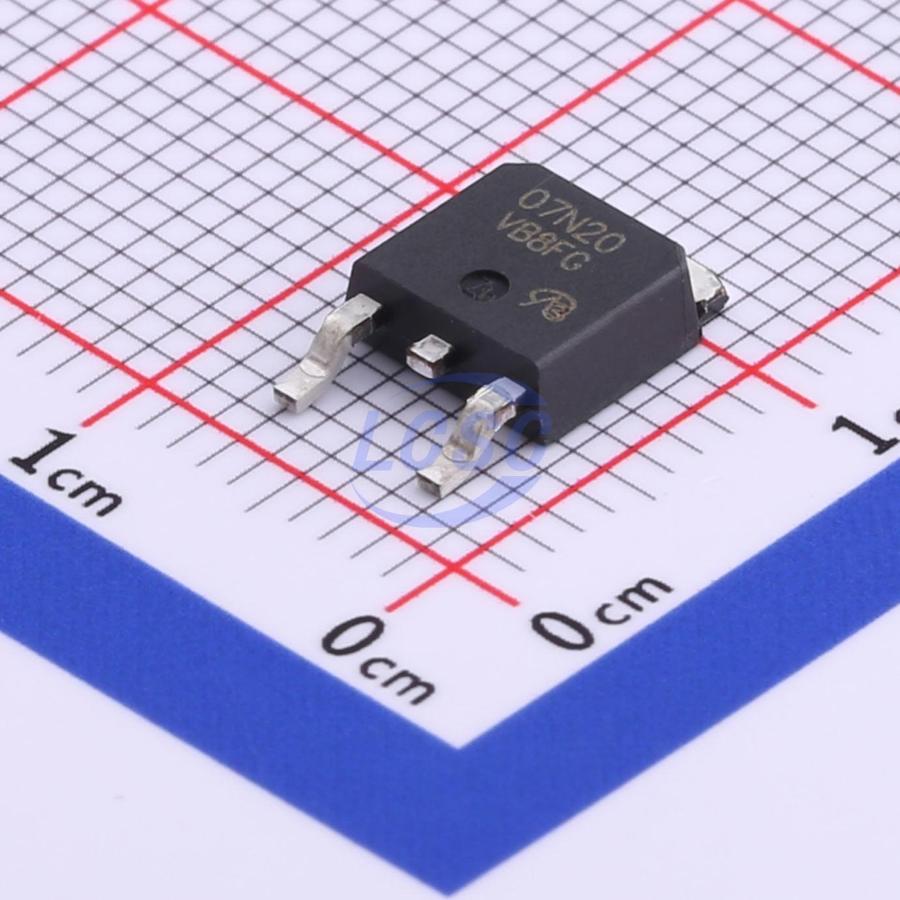

SPD07N20G-VB
N-Channel 200V 10A 96W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 200V 10A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SPD07N20G-VB
- Store part #
- C879073
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
28 in stock
#C879073
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹90.82 | ₹90.82 |
| 10+ | ₹73.94 | ₹739.40 |
| 30+ | ₹65.29 | ₹1,958.70 |
| 100+ | ₹56.85 | ₹5,685.00 |
| 500+ | ₹51.90 | ₹25,950.00 |
| 1,000+ | ₹49.23 | ₹49,230.00 |
1 × ₹90.82
₹90.82
excl. GST
₹107.17 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SPD07N20G-VB
₹90.82 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 200V
- Output Capacitance(Coss)
- 180pF
- Current - Continuous Drain(Id)
- 10A
- Ciss-Input Capacitance
- 1.8nF
- Pd - Power Dissipation
- 96W
- Reverse Transfer Capacitance (Crss)
- 80pF
- RDS(on)
- 245mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 34nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.477 g
Overview
Applications
- Primary-side switch
Key features
- Trench power MOSFET
- Junction temperature 175 °C
- PWM optimized
- 100% gate resistance (Rg) tested
- RoHS compliant (Directive 2002/95/EC)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| PHD9NQ20T,118-VB#C52190899VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 5 | ₹102.32 · 5 in stock | View | |
 | FQD18N20V2TM-VB#C879093VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 13 | ₹229.55 · 13 in stock | View |
 | IRFR9N20DPBF-VB#C18212610VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 28 | ₹93.72 · 28 in stock | View |
 | IRFR220PBF-VB#C18795060VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 9 | ₹93.72 · 9 in stock | View |
 | AOD458-VB#C19188161VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 52 | ₹113.43 · 52 in stock | View |
