HXY MOSFETDatasheet (PDF)

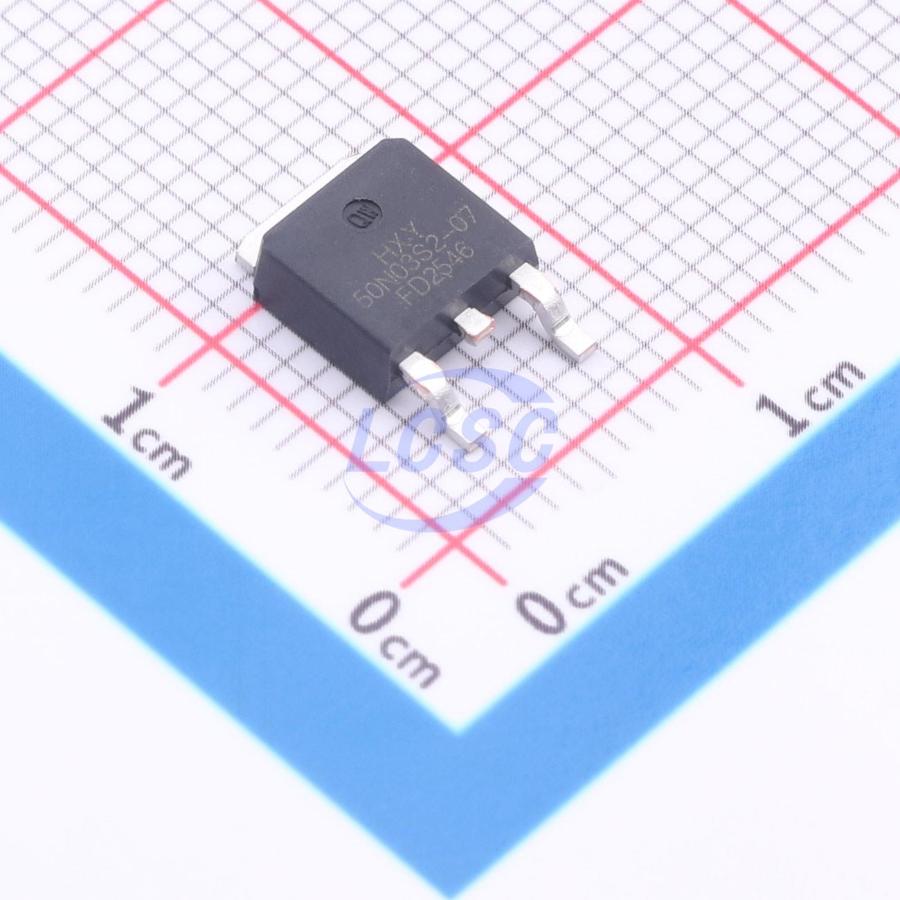

SPD50N03S2-07-HXY
54W 30V 80A 5mΩ@10V 1 N-channel N-Channel TO-252-2L Single FETs, MOSFETs
TO-252-2LRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- SPD50N03S2-07-HXY
- Store part #
- C53263248
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
85 in stock
#C53263248
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹48.86 | ₹244.30 |
| 50+ | ₹38.71 | ₹1,935.50 |
| 150+ | ₹34.36 | ₹5,154.00 |
| 500+ | ₹28.92 | ₹14,460.00 |
| 2,500+ | ₹26.50 | ₹66,250.00 |
| 5,000+ | ₹25.06 | ₹1,25,300.00 |
5 × ₹48.86
₹244.30
excl. GST
₹288.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SPD50N03S2-07-HXY
₹244.30 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 200pF
- Ciss-Input Capacitance
- 1.16nF
- Pd - Power Dissipation
- 54W
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 80A
- Reverse Transfer Capacitance (Crss)
- 180pF
- RDS(on)
- 5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 11.1nC@4.5V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.38 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NTD4860N-HXY#C22366447HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 5 | ₹19.81 · 5 in stock | View |
 | IPD075N03LGATMA1-HXY#C53262975HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 77 | ₹63.74 · 77 in stock | View |
 | IPD50N03S4L06ATMA1-HXY#C53263010HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 162 | ₹79.26 · 162 in stock | View |
 | NTD4806NAT4G-HXY#C53263066HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 98 | ₹81.83 · 98 in stock | View |
 | NTD4806NT4G-HXY#C53263071HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 95 | ₹54.56 · 95 in stock | View |
