InfineonDatasheet (PDF)

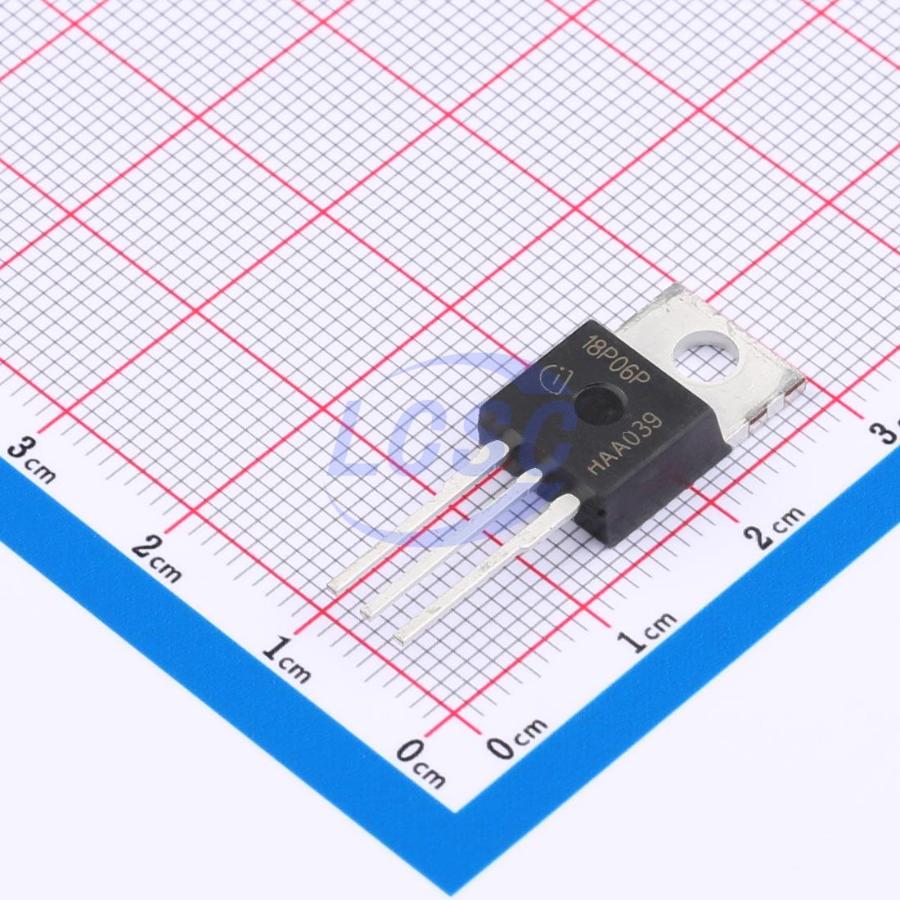

SPP18P06PHXKSA1
P-Channel 60V 18.7A 81.1W Through Hole TO-220-3
TO-220-3ROHS3 CompliantActive
MOSFET P-CH 60V 18.7A TO-220-3
- Manufacturer
- Infineon
- Manufacturer part #
- SPP18P06PHXKSA1
- Store part #
- C3288932
- Package / case
- TO-220-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
73 in stock
#C3288932
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹227.69 | ₹227.69 |
| 10+ | ₹192.56 | ₹1,925.60 |
| 50+ | ₹170.65 | ₹8,532.50 |
| 100+ | ₹148.32 | ₹14,832.00 |
| 500+ | ₹138.13 | ₹69,065.00 |
| 1,000+ | ₹133.79 | ₹1,33,790.00 |
1 × ₹227.69
₹227.69
excl. GST
₹268.67 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
SPP18P06PHXKSA1
₹227.69 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 230pF
- Ciss-Input Capacitance
- 860pF
- Pd - Power Dissipation
- 81.1W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 18.7A
- Reverse Transfer Capacitance (Crss)
- 120pF
- RDS(on)
- 130mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 28nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.763 g
Overview
Key features
- P-Channel
- Enhancement mode
- Avalanche rated
- dv /dt rated
- 17500 operating temperature
- Pb-free lead finishing; RoHS compliant
- Halogen-free according to IEC61249-2-21
- Qualified according to AEC Q101
