InfineonDatasheet (PDF)

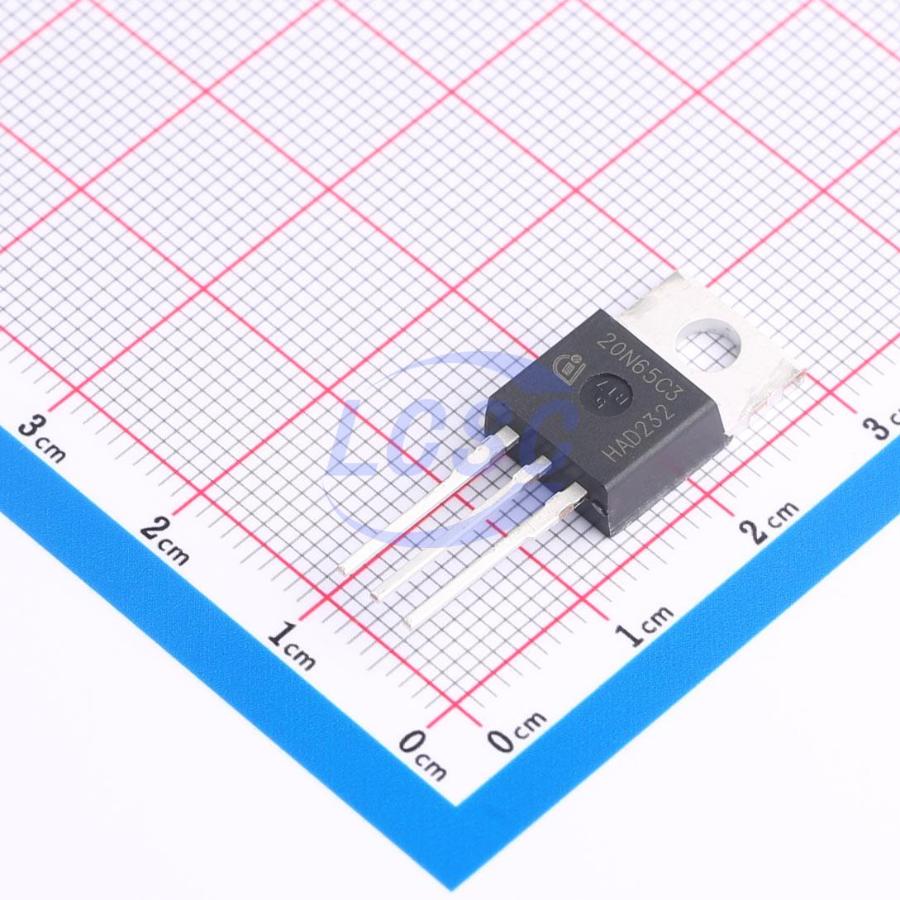

SPP20N65C3
N-Channel 650V 20.7A Through Hole TO-220
TO-220ROHS3 CompliantActive
MOSFET N-CH 650V 20.7A TO-220
- Manufacturer
- Infineon
- Manufacturer part #
- SPP20N65C3
- Store part #
- C539314
- Package / case
- TO-220
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C539314
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,264.62 | ₹1,264.62 |
1 × ₹1,264.62
₹1,264.62
excl. GST
₹1,492.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 500 per tube
SPP20N65C3
₹1,264.62 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 780pF
- Ciss-Input Capacitance
- 2.4nF
- Pd - Power Dissipation
- 208W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Current - Continuous Drain(Id)
- 20.7A
- Reverse Transfer Capacitance (Crss)
- 50pF
- RDS(on)
- 190mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 87nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 500 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.9 g
Overview
Key features
- Revolutionary new high-voltage technology
- Best-in-class RDS(on) in TO-220 package
- Ultra-low gate charge
- Repetitive avalanche rated
- Very high dv/dt rated
- High pulse current capability
- Improved transconductance
- Lead-free lead plating; RoHS compliant
- JEDEC qualified for target applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SPP20N60C3#C672089Infineon · TO-220 | Infineon | TO-220 | 658 | ₹274.55 · 658 in stock | View |
 | SPP20N60C3-VB#C7568837VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 46 | ₹440.61 · 46 in stock | View |
 | IKP15N60T-VB#C7569121VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 5 | ₹196.82 · 5 in stock | View |
 | IPP60R125CP#C537202Infineon · TO-220 | Infineon | TO-220 | 4 | ₹2,277.27 · 4 in stock | View |
 | FQP20N60C-VB#C19190228VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 50 | ₹380.71 · 50 in stock | View |
