SPT02-236DDB

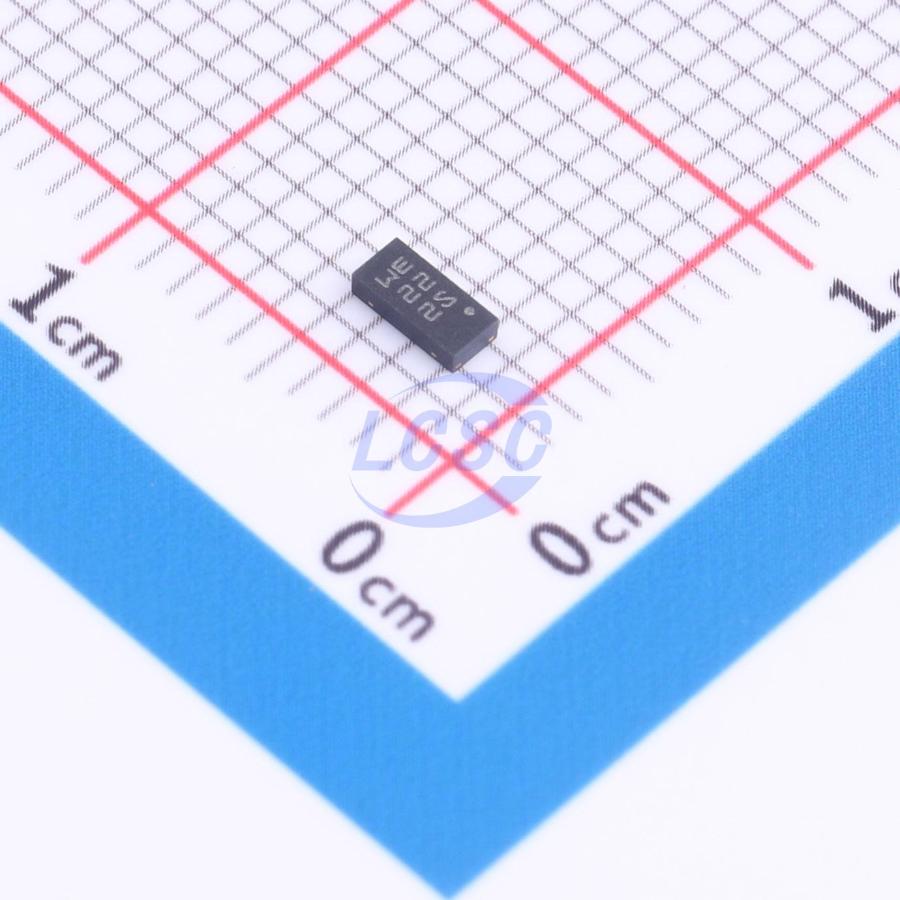

46VC Clamp 25A@8/20us Ipp TVS DIODE UQFN-2(3.3x1.5)
- Manufacturer
- ST
- Manufacturer part #
- SPT02-236DDB
- Store part #
- C1975781
- Package / case
- UQFN-2(3.3x1.5)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
240 in stock
#C1975781
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹168.09 | ₹168.09 |
| 10+ | ₹165.30 | ₹1,653.00 |
| 30+ | ₹163.36 | ₹4,900.80 |
| 100+ | ₹161.42 | ₹16,142.00 |
1 × ₹168.09
₹168.09
excl. GST
₹198.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SPT02-236DDB
₹168.09 for 1 + GST
Specifications
- Clamping Voltage
- 46V
- Operating Temperature
- -40℃~+100℃
- Peak Pulse Current (Ipp)
- 25A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 1.4kW@8/20us
- Voltage - Breakdown
- 41.4V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 33V;36V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.046 g
Overview
The SPT02 is specifically designed for the protection of 24 V proximity sensors. It implements the reverse polarity and the overvoltage protection of the sensor power supply and the power switch overvoltage protection. It provides a very compact and flexible solution. Thanks to high performance ST technology, the SPT02 protects the proximity sensor to the highest level compliant with IEC 61000-4-2, IEC 61000-4-4 and IEC 61000-4-5 standards.
Applications
- Factory automation sensor application
- Proximity sensor interface protection
- Transient and surge voltage protection
- Compliant with sensor standard, EN 60947-5-2
Key features
- Double diode array for switch protection and reverse blocking protection 6 V to 36 V supply voltage range
- Minimum breakdown voltage VBR: 38 V
- 8/20 μs 2 A maximum clamping voltage: 46 V
- Blocking diode drop forward voltage VF: 1.1 V at 300 mA
- Blocking diode maximum 10 ms square pulse current IFSM: 3 A
- Ambient temperature: -40 °C to +100 °C
- μQFN 2L 0.8 mm flat package
- Voltage surge: IEC 61000-4-5, RCC = 500 Ω, ±1 kV
- Electrostatic discharge, IEC 61000-4-2: ±8 kV contact discharge ±15 kV air discharge
- Electrical transient immunity: IEC 61000-4-4: ±2 kV
- Compliant for interface with logic input type 1, 2 and 3 IEC 61131-2 standard
- Highly compact with integrated power solution in SMD version
