InfineonDatasheet (PDF)

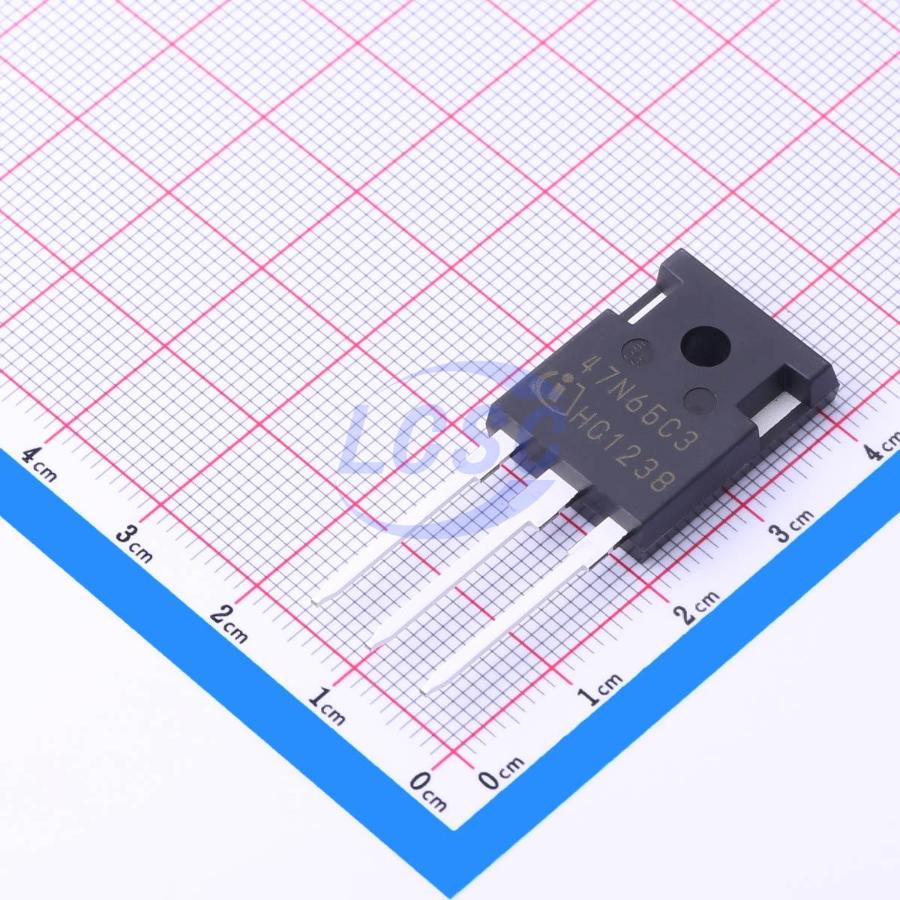

SPW47N65C3
N-Channel 650V 47A 415W Through Hole TO-247-3
TO-247-3ROHS3 CompliantActive
MOSFET N-CH 650V 47A TO-247-3
- Manufacturer
- Infineon
- Manufacturer part #
- SPW47N65C3
- Store part #
- C539327
- Package / case
- TO-247-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3 in stock
#C539327
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹2,898.06 | ₹2,898.06 |
1 × ₹2,898.06
₹2,898.06
excl. GST
₹3,419.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 240 per tube
SPW47N65C3
₹2,898.06 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 2.3nF
- Ciss-Input Capacitance
- 7nF
- Pd - Power Dissipation
- 415W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Current - Continuous Drain(Id)
- 47A
- Reverse Transfer Capacitance (Crss)
- 490pF
- RDS(on)
- 70mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 255nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.9V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 240 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 8 g
Overview
Key features
- Worldwide best Rds,on in TO247
- Low gate charge
- Extreme dv/dt rated
- High peak current capability
- Qualified according to JEDEC for target applications
- Pb-free lead plating; RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SPW47N60C3#C44647Infineon · TO-247AC-3 | Infineon | TO-247AC-3 | 10,627 | ₹791.76 · 10,627 in stock | View |
 | IXKR40N60C-VB#C22389526VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 3 | ₹729.73 · 3 in stock | View |
 | APT34M60B-VB#C45350886VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 10 | ₹1,117.00 · 10 in stock | View |
 | APT53N60BC6-VB#C45350897VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 10 | ₹1,117.00 · 10 in stock | View |
 | FCH067N65S3-F155-VB#C45350907VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 10 | ₹1,117.00 · 10 in stock | View |
