VBsemi ElecDatasheet (PDF)

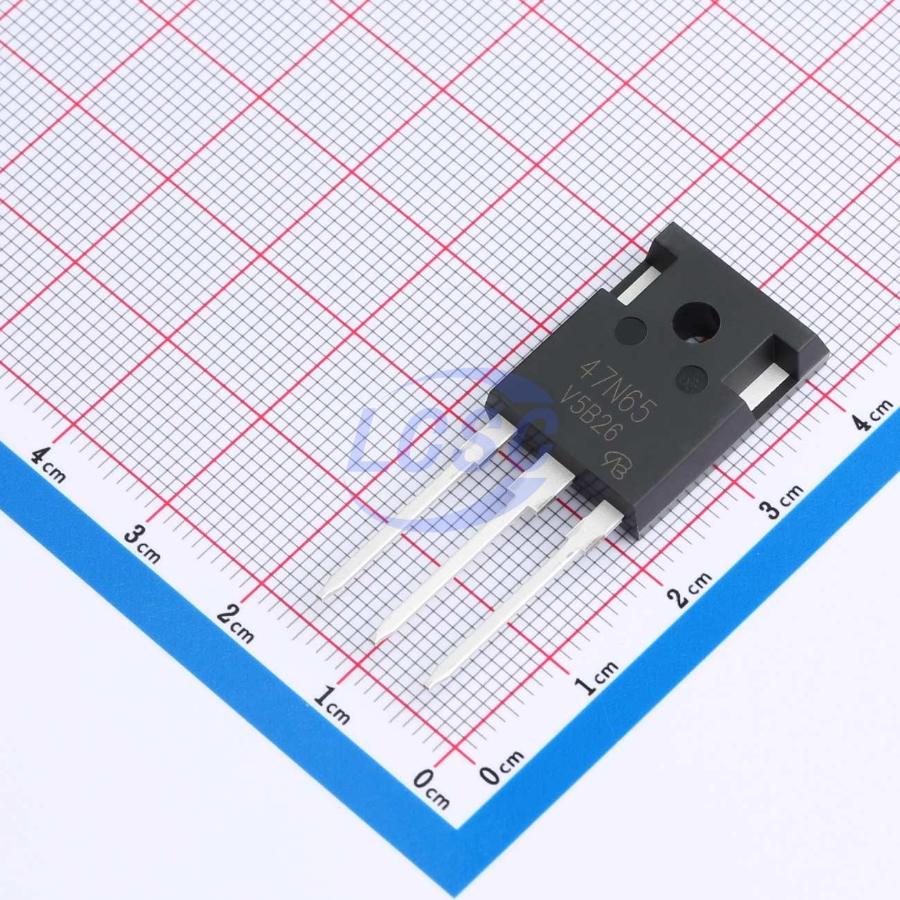

SPW47N65C3FKSA1-VB
N-Channel 650V 47A 415W Through Hole TO-247AC
TO-247ACRoHSActive
MOSFET N-CH 650V 47A TO-247AC
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SPW47N65C3FKSA1-VB
- Store part #
- C46527816
- Package / case
- TO-247AC
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C46527816
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,117.00 | ₹1,117.00 |
| 10+ | ₹1,010.53 | ₹10,105.30 |
| 30+ | ₹631.10 | ₹18,933.00 |
| 90+ | ₹576.67 | ₹51,900.30 |
1 × ₹1,117.00
₹1,117.00
excl. GST
₹1,318.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
SPW47N65C3FKSA1-VB
₹1,117.00 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Output Capacitance(Coss)
- 251pF
- Current - Continuous Drain(Id)
- 47A
- Ciss-Input Capacitance
- 5.682nF
- Pd - Power Dissipation
- 415W
- Reverse Transfer Capacitance (Crss)
- 251pF
- RDS(on)
- 60mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 273nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 8.3 g
Overview
Applications
- Server and telecom power supplies
- Switch Mode Power Supplies (SMPS)
- Power Factor Correction (PFC)
- Lighting
- High Intensity Discharge (HID)
- Fluorescent lamp ballast lighting
- Industrial
- Welding
- Induction heating
- Motor drives
- Battery chargers
- Renewable energy
- Solar (photovoltaic inverters)
Key features
- Low figure of merit (FOM) Ron × Qg
- Low input capacitance (Ciss)
- Reduced switching and conduction losses
- Ultra-low gate charge (Qg)
- Avalanche energy rated (UIS)
- RoHS compliant
