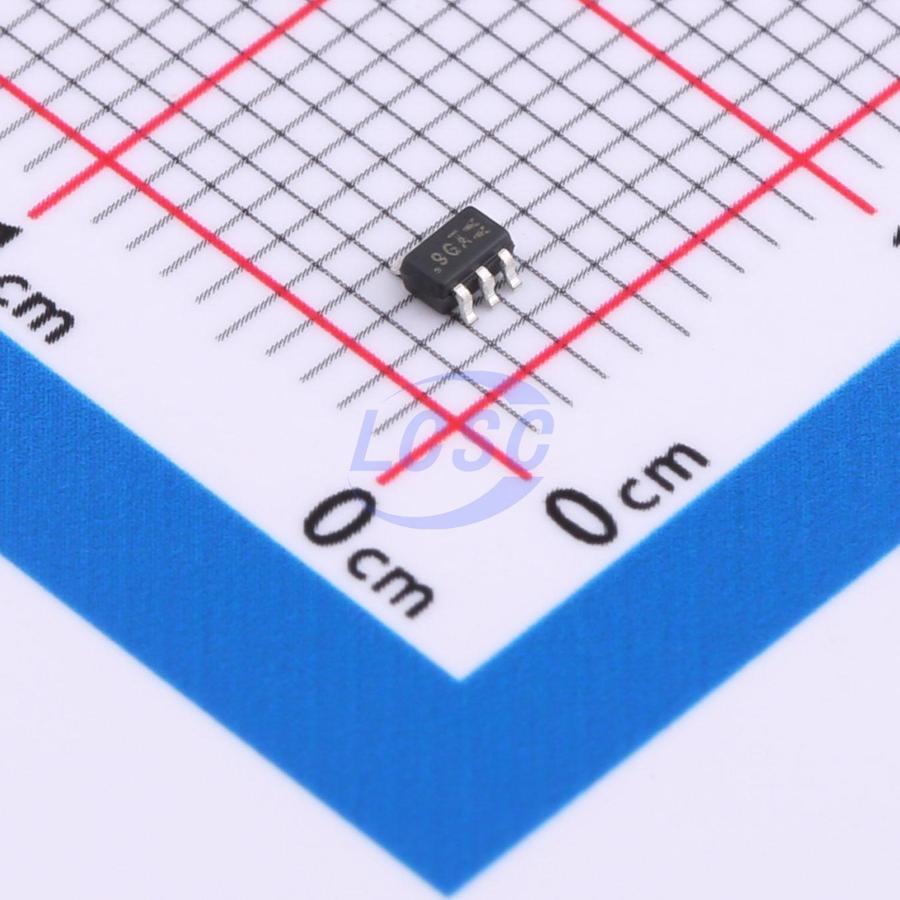

SQ1440EH-T1_GE3
N-Channel 60V 1.7A 3.3W Surface Mount SOT-363
SOT-363ROHS3 CompliantActive
MOSFET N-CH 60V 1.7A SOT-363
- Manufacturer
- VISHAY
- Manufacturer part #
- SQ1440EH-T1_GE3
- Store part #
- C727320
- Package / case
- SOT-363
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
378 in stock
#C727320
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹77.94 | ₹77.94 |
| 10+ | ₹62.26 | ₹622.60 |
| 30+ | ₹54.32 | ₹1,629.60 |
| 100+ | ₹46.60 | ₹4,660.00 |
| 500+ | ₹41.87 | ₹20,935.00 |
| 1,000+ | ₹39.50 | ₹39,500.00 |
1 × ₹77.94
₹77.94
excl. GST
₹91.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SQ1440EH-T1_GE3
₹77.94 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 34pF
- Ciss-Input Capacitance
- 344pF
- Pd - Power Dissipation
- 3.3W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 1.7A
- Reverse Transfer Capacitance (Crss)
- 17pF
- RDS(on)
- 120mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 5.5nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.018 g
Overview
Key features
- TrenchFET power MOSFET
- AEC-Q101 qualified
- 100 % Rg and UIS tested
- RoHS COMPLIANT HALOGEN FREE
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SI1480DH-T1-GE3#C144889VISHAY · SC-70-6(SOT-363) | VISHAY | SC-70-6(SOT-363) | On request | ₹142.30 · 0 in stock | View |
| SI1480DH-T1-BE3#C3289608VISHAY · SC-70-6 | VISHAY | SC-70-6 | On request | ₹26.51 · 0 in stock | View | |
 | MCH6445-TL-W#C480697onsemi · MCPH-6 | onsemi | MCPH-6 | On request | ₹139.93 · 0 in stock | View |
