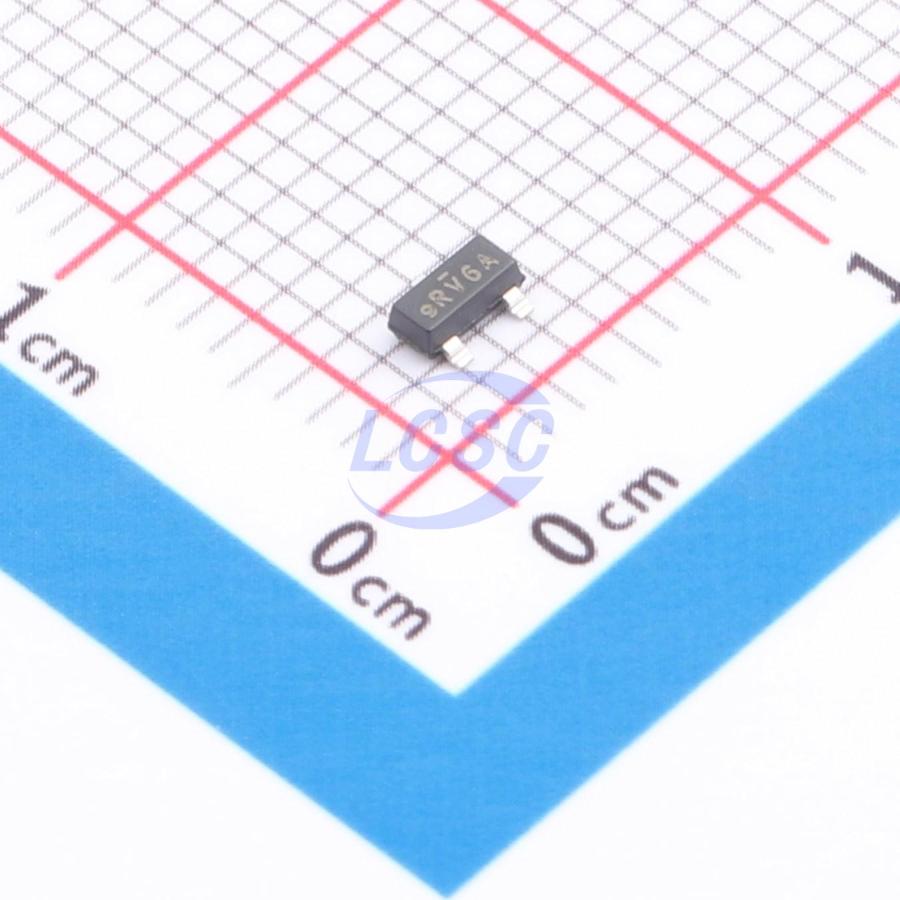

VISHAYDatasheet (PDF)
SQ2308FES-T1_GE3
2W 60V 2.3A 150mΩ@10V 1 N-channel N-Channel SOT-23 Single FETs, MOSFETs RoHS
SOT-23ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- SQ2308FES-T1_GE3
- Store part #
- C24287831
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,353 in stock
#C24287831
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹40.99 | ₹40.99 |
| 10+ | ₹40.34 | ₹403.40 |
| 30+ | ₹39.90 | ₹1,197.00 |
| 100+ | ₹39.47 | ₹3,947.00 |
1 × ₹40.99
₹40.99
excl. GST
₹48.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SQ2308FES-T1_GE3
₹40.99 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 25pF
- Ciss-Input Capacitance
- 170pF
- Pd - Power Dissipation
- 2W
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+175℃
- Current - Continuous Drain(Id)
- 2.3A
- Reverse Transfer Capacitance (Crss)
- 13pF
- RDS(on)
- 150mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 3.6nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.123 g
Overview
Key features
- TrenchFET Power MOSFET
- AEC-Q101 Qualified
- 100% Tested for Rg and UIS
- RoHS Compliant
- Halogen-Free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LWT1H6AM#C20630393Lewa Micro · SOT-23 | Lewa Micro | SOT-23 | 2,850 | ₹7.38 · 2,850 in stock | View |
 | NP6003MR-N-G#C2991132NATLINEAR · SOT-23 | NATLINEAR | SOT-23 | 320 | ₹5.05 · 320 in stock | View |
 | AP5N10S#C2849571ALLPOWER · SOT-23-3L | ALLPOWER | SOT-23-3L | 90,230 | ₹12.91 · 90,230 in stock | View |
 | LWT1H7AM#C20630395Lewa Micro · SOT-23 | Lewa Micro | SOT-23 | 2,980 | ₹8.60 · 2,980 in stock | View |
 | NCE0103Y#C153001NCE · SOT-23-3L | NCE | SOT-23-3L | 12,980 | ₹20.22 · 12,980 in stock | View |
