VBsemi ElecDatasheet (PDF)

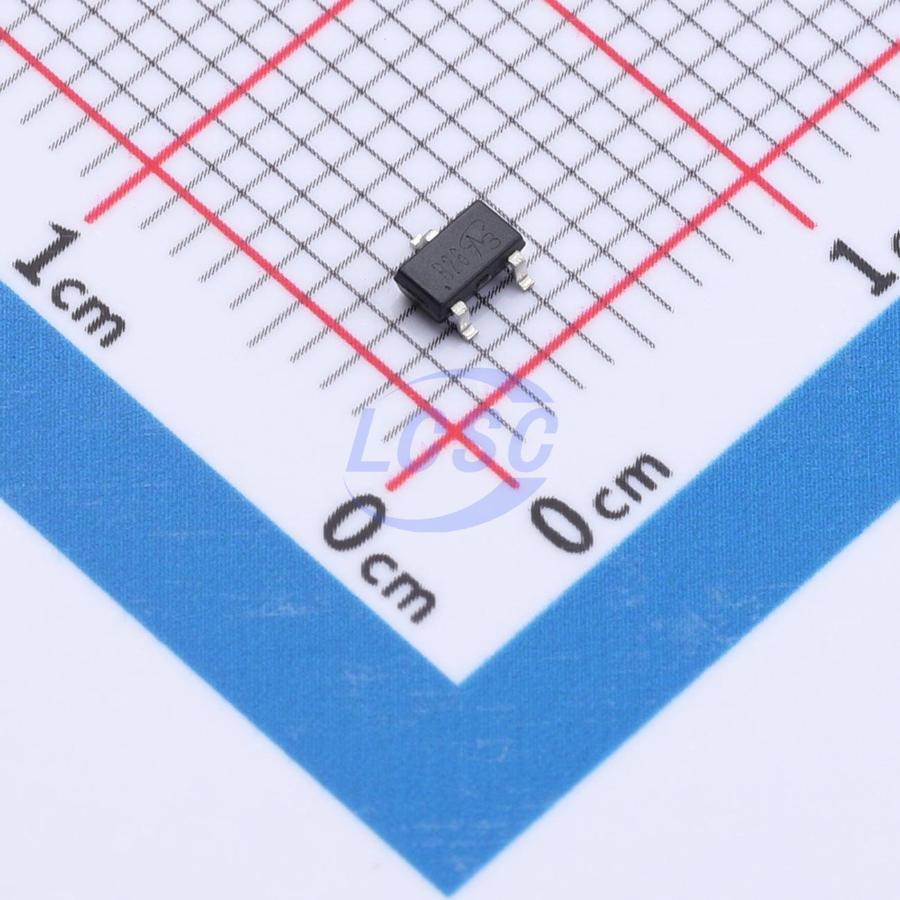

SQ2309ES-T1_BE3-VB
27W 60V 5.2A 50mΩ@10V 1 P-Channel P-Channel SOT-23 Single FETs, MOSFETs
SOT-23RoHSActive
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SQ2309ES-T1_BE3-VB
- Store part #
- C50387042
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C50387042
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹49.98 | ₹249.90 |
| 50+ | ₹40.22 | ₹2,011.00 |
| 150+ | ₹36.04 | ₹5,406.00 |
| 500+ | ₹30.81 | ₹15,405.00 |
| 3,000+ | ₹25.63 | ₹76,890.00 |
| 6,000+ | ₹24.22 | ₹1,45,320.00 |
5 × ₹49.98
₹249.90
excl. GST
₹294.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SQ2309ES-T1_BE3-VB
₹249.90 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 170pF
- Ciss-Input Capacitance
- 270pF
- Pd - Power Dissipation
- 27W
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+175℃
- Current - Continuous Drain(Id)
- 5.2A
- Reverse Transfer Capacitance (Crss)
- 31pF
- RDS(on)
- 50mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 12nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.26 g
Overview
Key features
- Isolated package
- High voltage isolation = 2.5 kVRMS (t = 60 s; f = 60 Hz)
- Drain-to-pin creepage distance = 4.8 mm
- P-channel
- Operating temperature up to 175 °C
- Dynamic dV/dt rating
- Low thermal resistance
- Available in lead-free (Pb-free) versions
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDN5618P-B8-VB#C50387003VBsemi Elec · SOT-23 | VBsemi Elec | SOT-23 | 10 | ₹49.98 · 10 in stock | View |
 | SQ2361CES-T1_GE3-VB#C50387043VBsemi Elec · SOT-23 | VBsemi Elec | SOT-23 | 30 | ₹25.56 · 30 in stock | View |
 | PMV100EPAR-VB#C52148577VBsemi Elec · SOT-23 | VBsemi Elec | SOT-23 | 20 | ₹49.89 · 20 in stock | View |
 | CPH3351-TL-H-VB#C22389085VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 85 | ₹54.86 · 85 in stock | View |
 | QM6007K-VB#C22389943VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 10 | ₹54.86 · 10 in stock | View |
