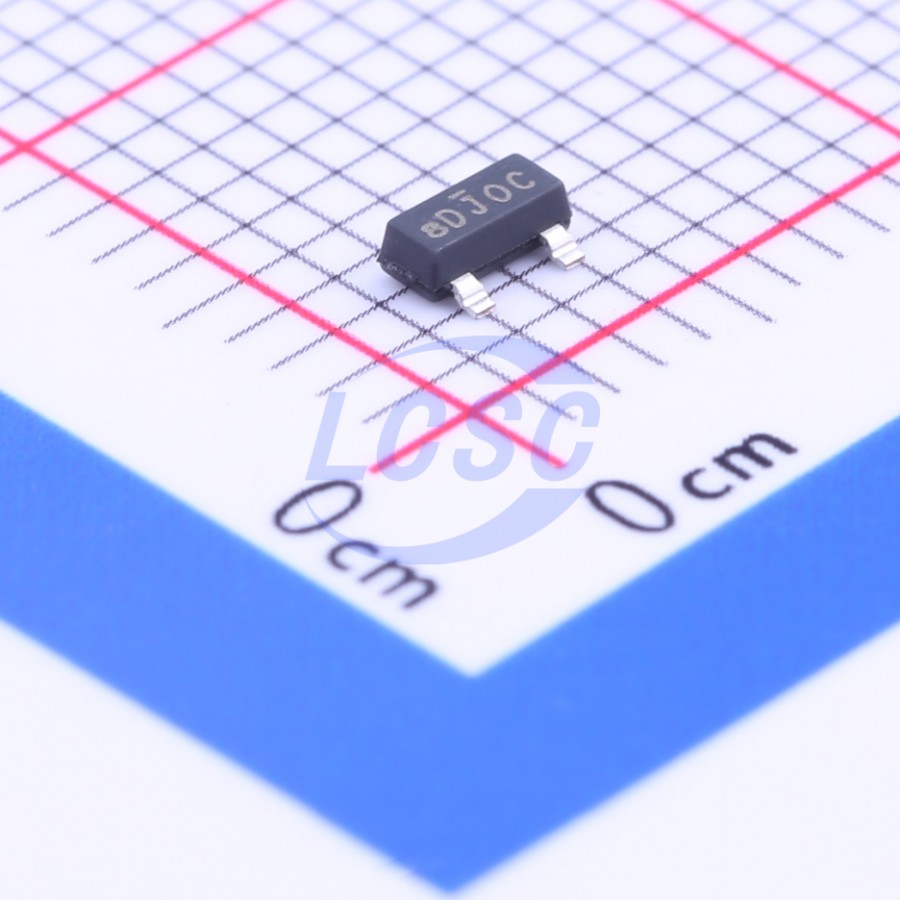

SQ2315ES-T1_GE3
P-Channel 12V 5A 0.67W Surface Mount SOT-23
SOT-23ROHS3 CompliantDiscontinued
MOSFET P-CH 12V 5A SOT-23
- Manufacturer
- VISHAY
- Manufacturer part #
- SQ2315ES-T1_GE3
- Store part #
- C143032
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,434 in stock
#C143032
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹70.54 | ₹70.54 |
| 10+ | ₹55.74 | ₹557.40 |
| 30+ | ₹49.20 | ₹1,476.00 |
| 100+ | ₹41.37 | ₹4,137.00 |
| 500+ | ₹37.67 | ₹18,835.00 |
| 1,000+ | ₹35.71 | ₹35,710.00 |
1 × ₹70.54
₹70.54
excl. GST
₹83.24 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SQ2315ES-T1_GE3
₹70.54 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 335pF
- Ciss-Input Capacitance
- 870pF
- Pd - Power Dissipation
- 670mW
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 12V
- Current - Continuous Drain(Id)
- 5A
- Reverse Transfer Capacitance (Crss)
- 240pF
- RDS(on)
- 50mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 13nC@4.5V
- Vgs
- ±8V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.035 g
Overview
Key features
- TrenchFET power MOSFET
- AEC-Q101 qualified
- 100 % Rg and UIS tested
- Compliant to RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| SQ2315ES-T1_BE3#C3280175VISHAY · SOT-23-3(TO-236-3) | VISHAY | SOT-23-3(TO-236-3) | 188 | ₹145.38 · 188 in stock | View | |
 | AO3415C-VB#C54176960VBsemi Elec · SOT-23 | VBsemi Elec | SOT-23 | 5 | ₹12.70 · 5 in stock | View |
 | SI2333CDS-T1-E3-VB#C45662599VBsemi Elec · SOT-23-3 | VBsemi Elec | SOT-23-3 | 20 | ₹11.70 · 20 in stock | View |
 | SI2333DS-T1-E3-VB#C45662602VBsemi Elec · SOT-23-3 | VBsemi Elec | SOT-23-3 | 50 | ₹11.85 · 50 in stock | View |
 | SI2323DS-T1-E3-VB#C45662597VBsemi Elec · SOT-23-3 | VBsemi Elec | SOT-23-3 | 10 | ₹12.63 · 10 in stock | View |
