VISHAYDatasheet (PDF)

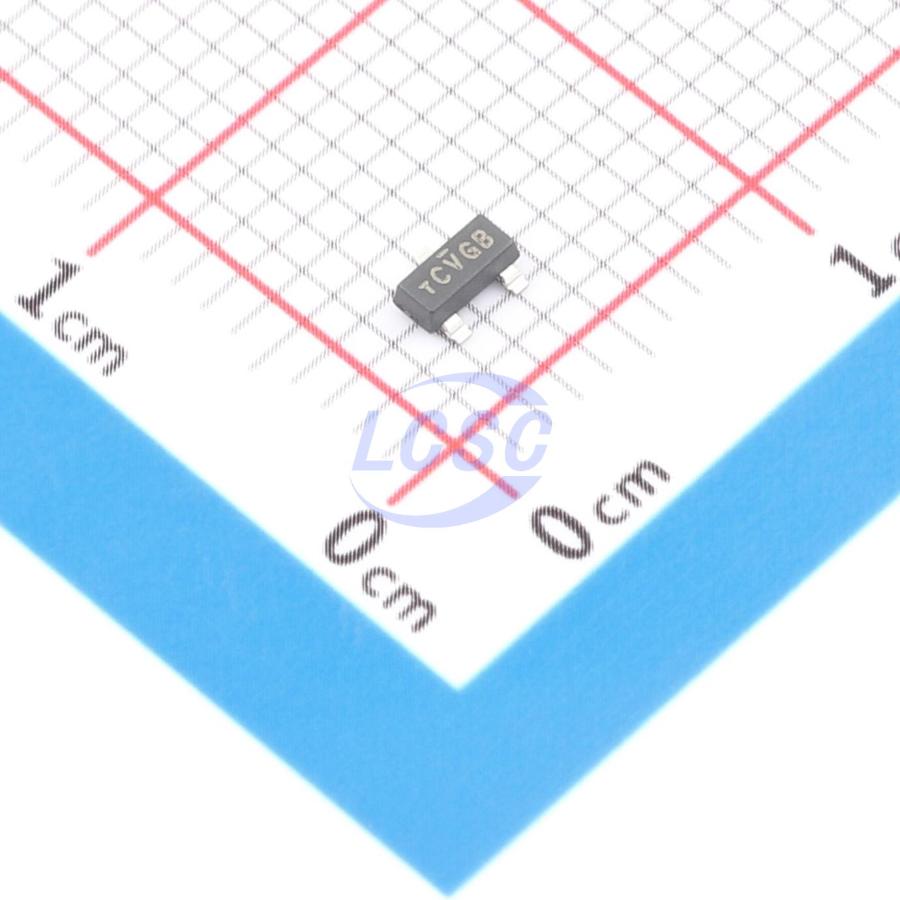

SQ2337CES-T1_GE3
80V 2.2A 3W 241mΩ@10V 1 P-Channel P-Channel SOT-23 Single FETs, MOSFETs RoHS
SOT-23ROHS3 CompliantActive
MOSFET P-CH 80V 2.2A SOT-23
- Manufacturer
- VISHAY
- Manufacturer part #
- SQ2337CES-T1_GE3
- Store part #
- C33880179
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
430 in stock
#C33880179
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹47.93 | ₹239.65 |
| 50+ | ₹38.82 | ₹1,941.00 |
| 150+ | ₹34.91 | ₹5,236.50 |
| 500+ | ₹30.05 | ₹15,025.00 |
| 3,000+ | ₹27.88 | ₹83,640.00 |
| 6,000+ | ₹26.58 | ₹1,59,480.00 |
5 × ₹47.93
₹239.65
excl. GST
₹282.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SQ2337CES-T1_GE3
₹239.65 for 5 + GST
Specifications
- Drain to Source Voltage
- 80V
- Operating Temperature
- -55℃~+175℃
- Output Capacitance(Coss)
- 39pF
- Current - Continuous Drain(Id)
- 2.2A
- Ciss-Input Capacitance
- 382pF
- Pd - Power Dissipation
- 3W
- Reverse Transfer Capacitance (Crss)
- 23pF
- RDS(on)
- 241mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 9.3nC@40V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.21 g
Overview
Key features
- Trench power MOSFET
- AEC-Q101 qualified
- 100% tested for gate resistance (Rg) and unclamped inductive switching (UIS)
- RoHS compliant and halogen-free
- P-channel MOSFET
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SQ2337ES-T1_GE3#C428742VISHAY · SOT-23 | VISHAY | SOT-23 | 103 | ₹91.64 · 103 in stock | View |
 | SQ2337ES-T1_BE3#C3280173VISHAY · SOT-23-3(TO-236-3) | VISHAY | SOT-23-3(TO-236-3) | 2,825 | ₹110.97 · 2,825 in stock | View |
 | LWS1H5AL#C53426726Lewa Micro · SOT-23-3L | Lewa Micro | SOT-23-3L | 1,850 | ₹15.48 · 1,850 in stock | View |
 | SI2387DS-T1-GE3#C3290063VISHAY · SOT-23-3(TO-236-3) | VISHAY | SOT-23-3(TO-236-3) | 456 | ₹1,282.09 · 456 in stock | View |
 | SI2337DS-T1-GE3#C83155VISHAY · SOT-23 | VISHAY | SOT-23 | 6 | ₹203.52 · 6 in stock | View |
