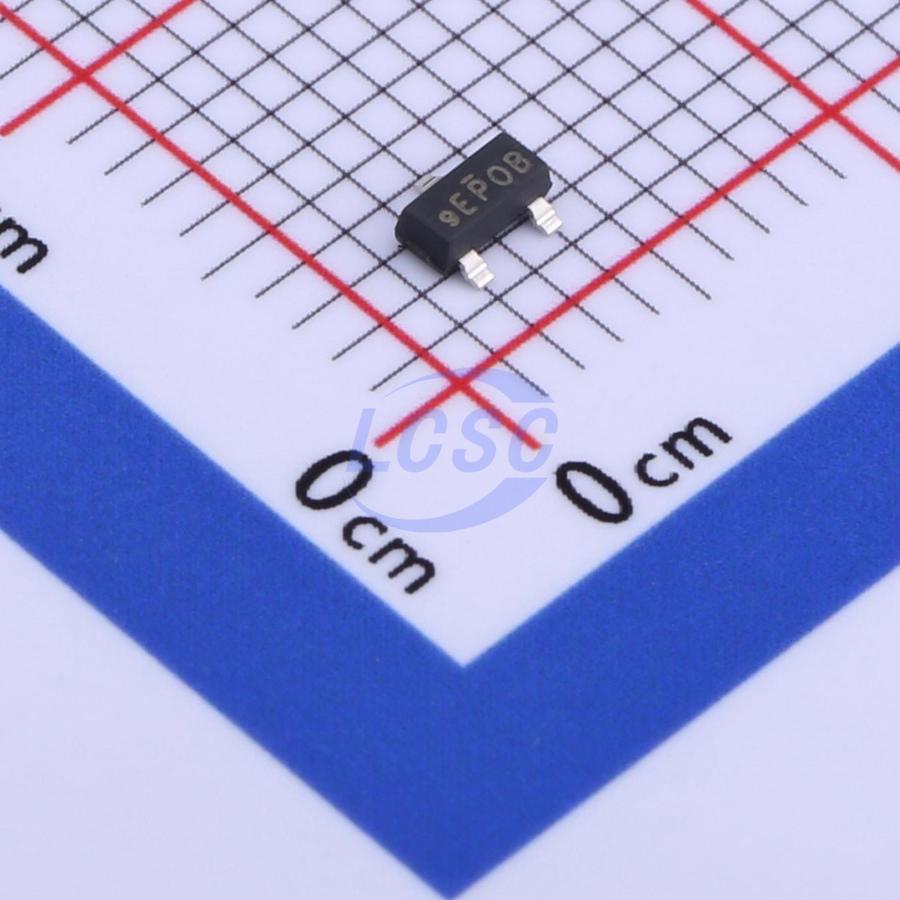

SQ2398ES-T1_GE3
N-Channel 100V 1.6A 2W Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
MOSFET N-CH 100V 1.6A SOT-23
- Manufacturer
- VISHAY
- Manufacturer part #
- SQ2398ES-T1_GE3
- Store part #
- C727466
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,277 in stock
#C727466
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹68.81 | ₹68.81 |
| 10+ | ₹54.04 | ₹540.40 |
| 30+ | ₹47.76 | ₹1,432.80 |
| 100+ | ₹39.73 | ₹3,973.00 |
| 500+ | ₹36.25 | ₹18,125.00 |
| 1,000+ | ₹34.08 | ₹34,080.00 |
1 × ₹68.81
₹68.81
excl. GST
₹81.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SQ2398ES-T1_GE3
₹68.81 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 28pF
- Ciss-Input Capacitance
- 152pF
- Pd - Power Dissipation
- 2W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 1.6A
- Reverse Transfer Capacitance (Crss)
- 12pF
- RDS(on)
- 300mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 3.4nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.036 g
Overview
Key features
- TrenchFET power MOSFET
- AEC-Q101 qualified
- 100 % Rg and UIS tested
- RoHS COMPLIANT HALOGEN FREE
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SQ2398ES-T1_BE3#C3280179VISHAY · SOT-23-3(TO-236-3) | VISHAY | SOT-23-3(TO-236-3) | 6 | ₹58.12 · 6 in stock | View |
 | IRLML0100TRPBF-FS#C5380682FUXINSEMI · SOT-23 | FUXINSEMI | SOT-23 | 1,340 | ₹7.53 · 1,340 in stock | View |
| SI2392-TP#C19992066MCC · SOT-23 | MCC | SOT-23 | 890 | ₹9.38 · 890 in stock | View | |
 | JMTL3N10A#C2890430Jiangsu JieJie Microelectronics · SOT-23 | Jiangsu JieJie Microelectronics | SOT-23 | 2,390 | ₹7.04 · 2,390 in stock | View |
 | JMGL3V10A#C2890413Jiangsu JieJie Microelectronics · SOT-23 | Jiangsu JieJie Microelectronics | SOT-23 | 750 | ₹9.42 · 750 in stock | View |
