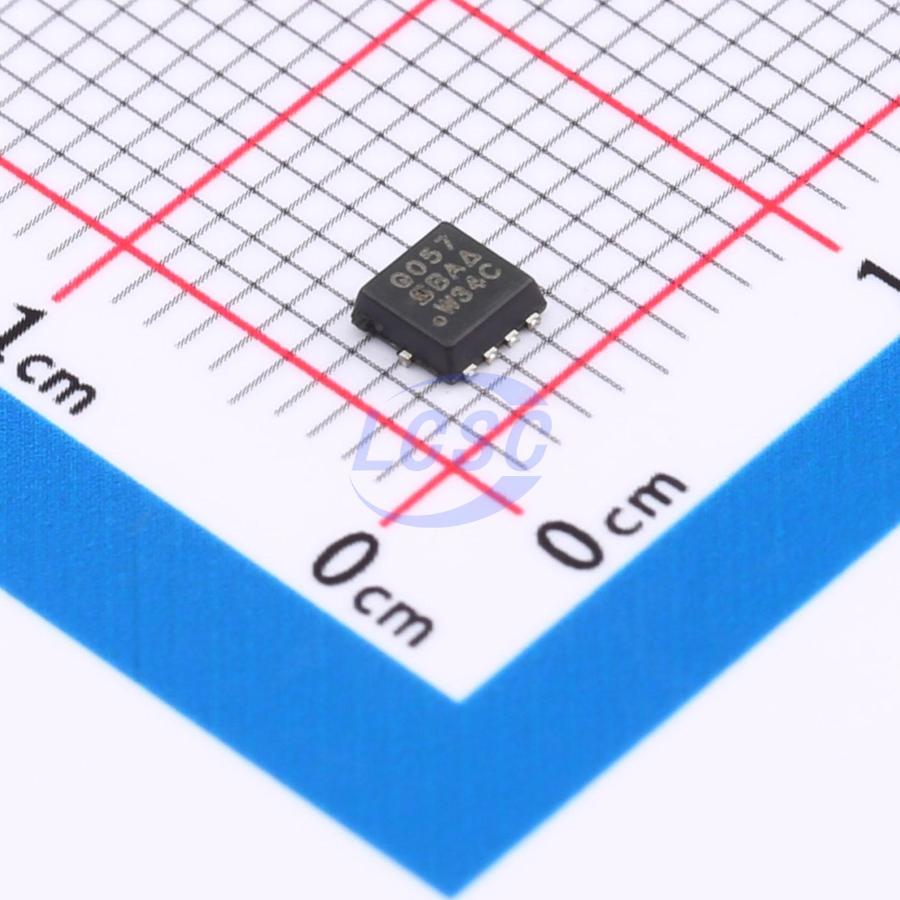

SQ7415CENW-T1_GE3
P-Channel 60V 16A 53W Surface Mount PowerPAK1212-8W
PowerPAK1212-8WROHS3 CompliantActive
MOSFET P-CH 60V 16A PowerPAK1212-8W
- Manufacturer
- VISHAY
- Manufacturer part #
- SQ7415CENW-T1_GE3
- Store part #
- C3289441
- Package / case
- PowerPAK1212-8W
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,097 in stock
#C3289441
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹72.55 | ₹72.55 |
| 10+ | ₹57.78 | ₹577.80 |
| 30+ | ₹50.39 | ₹1,511.70 |
| 100+ | ₹43.01 | ₹4,301.00 |
| 500+ | ₹38.67 | ₹19,335.00 |
| 1,000+ | ₹36.28 | ₹36,280.00 |
1 × ₹72.55
₹72.55
excl. GST
₹85.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SQ7415CENW-T1_GE3
₹72.55 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 132pF
- Current - Continuous Drain(Id)
- 16A
- Ciss-Input Capacitance
- 1.385nF
- Pd - Power Dissipation
- 53W
- Reverse Transfer Capacitance (Crss)
- 80pF
- RDS(on)
- 65mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 38nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.217 g
Overview
Applications
- Synchronous rectification
- High power density DC/DC
- Voltage regulation modules (VRMs) and embedded DC/DC
- Synchronous buck converters
- Load switches
Key features
- Trench power MOSFET
- AEC-Q101 qualified
- 100% tested for gate resistance (Rg) and unclamped inductive switching (UIS)
- RoHS compliant and halogen-free
- P-channel MOSFET
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SQ7415AEN-T1_GE3#C506610VISHAY · PowerPAK1212-8 | VISHAY | PowerPAK1212-8 | 2 | ₹83.19 · 2 in stock | View |
 | SQ7415AENW-T1_GE3#C727691VISHAY · PowerPAK-1212-8W | VISHAY | PowerPAK-1212-8W | 490 | ₹133.03 · 490 in stock | View |
 | SQ7415AEN-T1_BE3#C18197888VISHAY · PowerPAK-1212-8 | VISHAY | PowerPAK-1212-8 | 1,985 | ₹77.04 · 1,985 in stock | View |
 | SISS5623DN-T1-GE3#C20346159VISHAY · PowerPAK1212-8S | VISHAY | PowerPAK1212-8S | 1 | ₹186.89 · 1 in stock | View |
 | HNTTFS5116PLTWG#C42401369HXY MOSFET · WDFN-8(3.3x3.3) | HXY MOSFET | WDFN-8(3.3x3.3) | 45 | ₹51.66 · 45 in stock | View |
