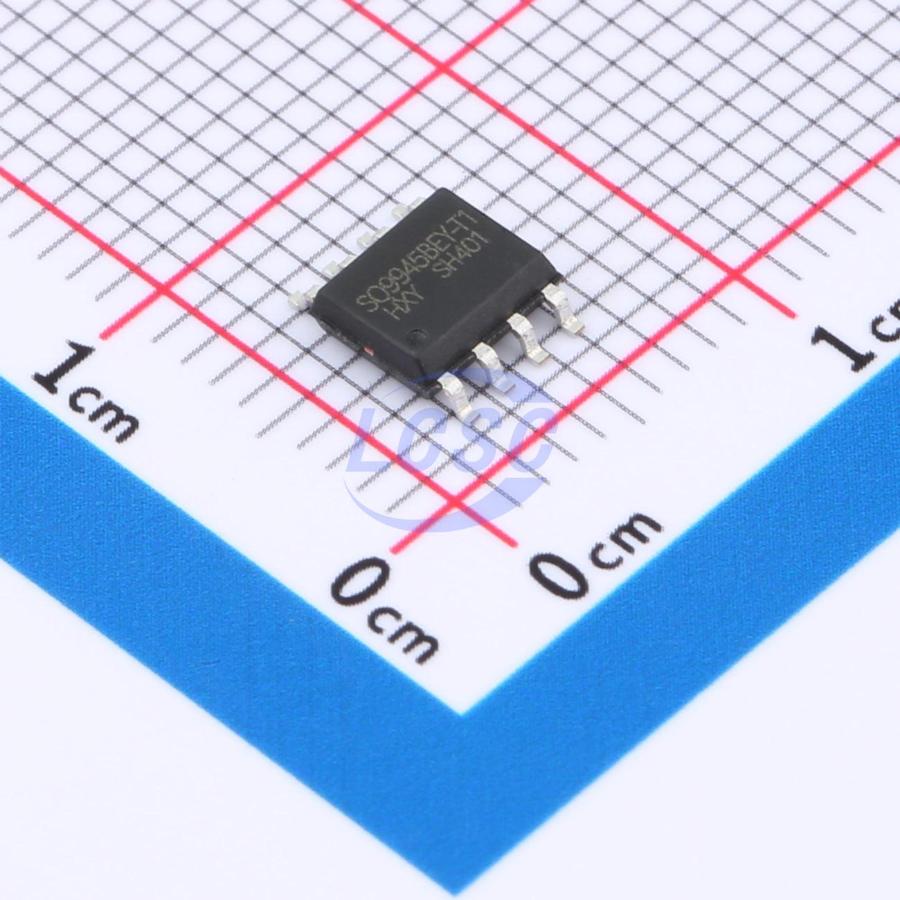

SQ9945BEY-T1_GE3-HXY
N-Channel Array 60V 6.5A 2.1W Surface Mount SOP-8
SOP-8RoHSActive
MOSFET N-CH ARR 60V 6.5A SOP-8
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- SQ9945BEY-T1_GE3-HXY
- Store part #
- C22366498
- Package / case
- SOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
55 in stock
#C22366498
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.00 | ₹215.00 |
| 50+ | ₹33.76 | ₹1,688.00 |
| 150+ | ₹29.81 | ₹4,471.50 |
| 500+ | ₹24.87 | ₹12,435.00 |
| 3,000+ | ₹22.68 | ₹68,040.00 |
| 6,000+ | ₹21.35 | ₹1,28,100.00 |
5 × ₹43.00
₹215.00
excl. GST
₹253.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SQ9945BEY-T1_GE3-HXY
₹215.00 for 5 + GST
Specifications
- Configuration
- Standalone
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 155pF
- Current - Continuous Drain(Id)
- 6.5A
- Ciss-Input Capacitance
- 1.92nF
- Pd - Power Dissipation
- 2.1W
- Reverse Transfer Capacitance (Crss)
- 116pF
- RDS(on)
- 32mΩ@10V
- Number
- 2 N-Channel
- Gate Charge(Qg)
- 50nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.127 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SI9945BDY-T1-HXY#C18198388HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 30 | ₹30.30 · 30 in stock | View |
 | DMN6040SSD-HXY#C22366490HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 2,945 | ₹18.91 · 2,945 in stock | View |
 | SI4946BEY-T1-E3-HXY#C22366492HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 30 | ₹41.49 · 30 in stock | View |
 | SQ4946AEY-T1_GE3-HXY#C22366493HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 124 | ₹69.60 · 124 in stock | View |
 | STN4828-HXY#C22366494HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 500 | ₹25.28 · 500 in stock | View |
