MDD(Microdiode Semiconductor)
2N7002KN-Channel 60V 300mA 300mW Surface Mount SOT-23
From
₹2.32
25,99,250 in stock
VISHAYDatasheet (PDF)

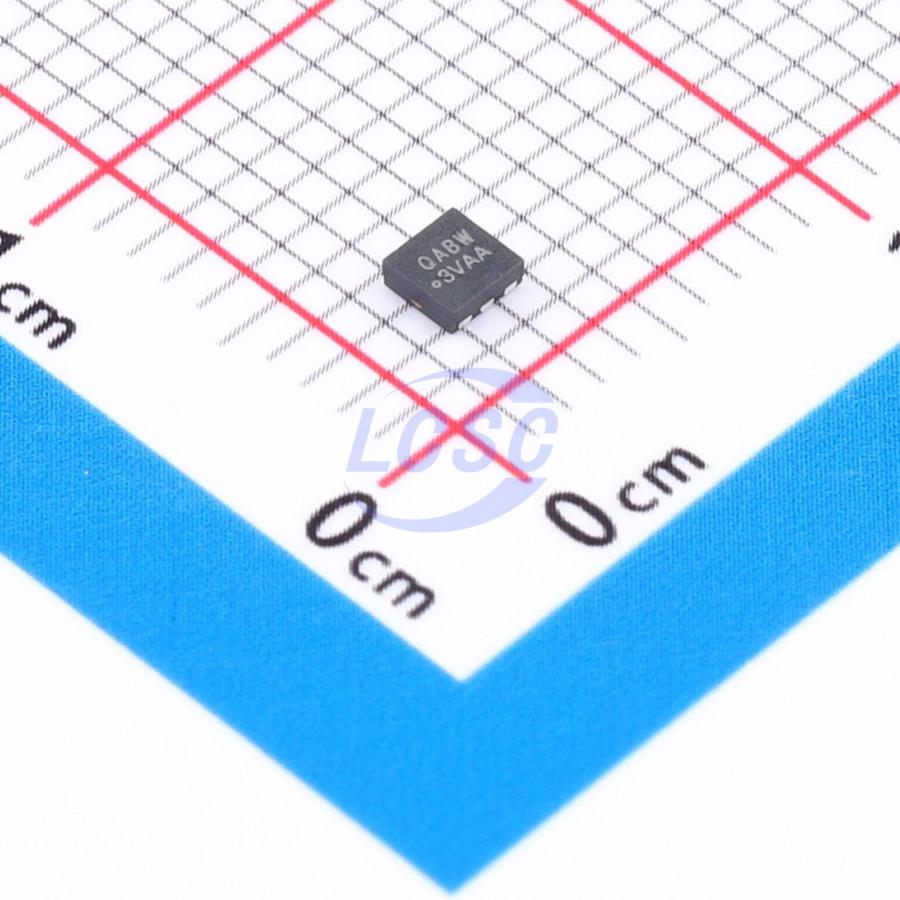

SQA300CEJW-T1_GE3
13.6W 30V 5.63A 54mΩ@4.5V 1 N-channel N-Channel PowerPAKSC-70W-6L Single FETs, MOSFETs RoHS
PowerPAKSC-70W-6LROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- SQA300CEJW-T1_GE3
- Store part #
- C20346168
- Package / case
- PowerPAKSC-70W-6L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,990 in stock
#C20346168
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹68.98 | ₹68.98 |
| 10+ | ₹54.63 | ₹546.30 |
| 30+ | ₹48.53 | ₹1,455.90 |
| 100+ | ₹40.91 | ₹4,091.00 |
| 500+ | ₹37.43 | ₹18,715.00 |
| 1,000+ | ₹35.47 | ₹35,470.00 |
1 × ₹68.98
₹68.98
excl. GST
₹81.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SQA300CEJW-T1_GE3
₹68.98 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 77pF
- Ciss-Input Capacitance
- 261pF
- Pd - Power Dissipation
- 13.6W
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+175℃
- Current - Continuous Drain(Id)
- 5.63A
- Reverse Transfer Capacitance (Crss)
- 16pF
- RDS(on)
- 54mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 23nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.224 g
Overview
Key features
- TrenchFET Power MOSFET
- AEC-Q101 Qualified
- Solderable Gull-Wing Terminals
- 100% Tested for Rg and UIS
- RoHS Compliant
- Halogen-Free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SQA604CEJW-T1_GE3#C7364361VISHAY · SC-70W-6L | VISHAY | SC-70W-6L | 100 | ₹119.94 · 100 in stock | View |
| HSCB6014#C42376789HUASHUO · DFN-6L(2x2) | HUASHUO | DFN-6L(2x2) | 720 | ₹23.42 · 720 in stock | View | |
 | YJQ13N03A#C2942399YANGJIE · DFN2020-6L | YANGJIE | DFN2020-6L | 905 | ₹18.18 · 905 in stock | View |
 | WNM3060-6/TR#C2931328WILLSEMI · DFN2x2-6L | WILLSEMI | DFN2x2-6L | 275 | ₹49.80 · 275 in stock | View |
 | BUK6D23-40EX#C549792Nexperia · DFN-6-MD(2x2) | Nexperia | DFN-6-MD(2x2) | 100 | ₹335.43 · 100 in stock | View |
