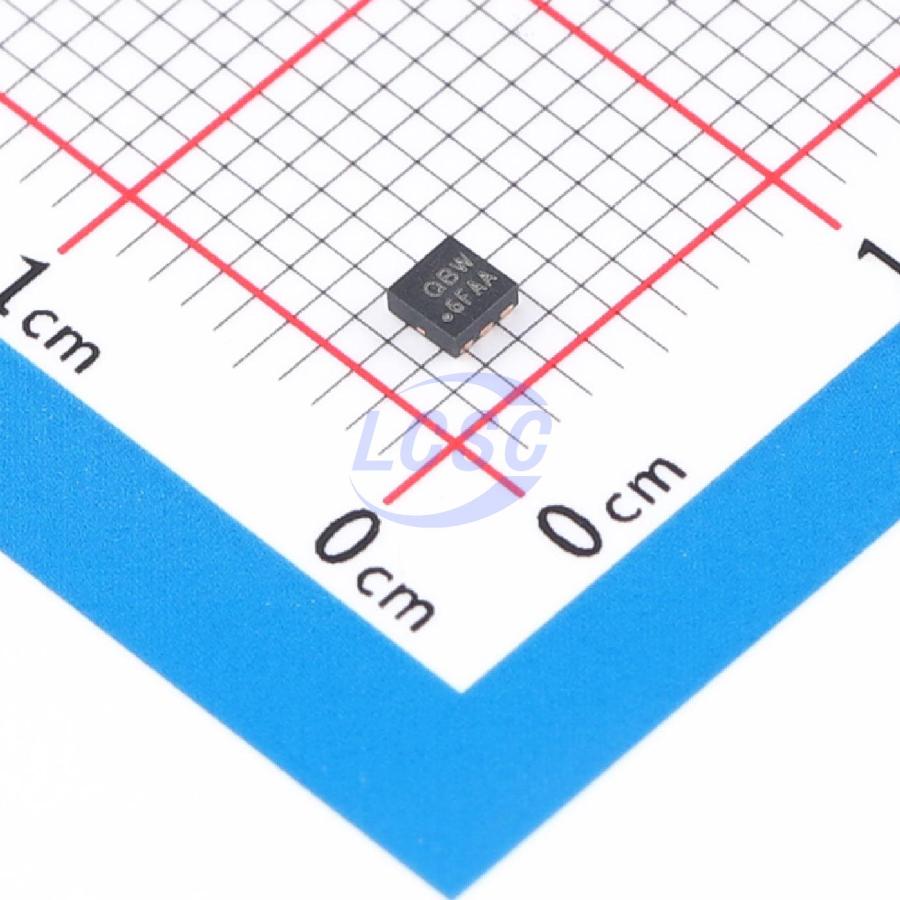

SQA401EJ-T1_GE3
P-Channel 20V 3.75A 13.6W Surface Mount SC-70-6L
SC-70-6LROHS3 CompliantActive
MOSFET P-CH 20V 3.75A SC-70-6L
- Manufacturer
- VISHAY
- Manufacturer part #
- SQA401EJ-T1_GE3
- Store part #
- C727326
- Package / case
- SC-70-6L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,363 in stock
#C727326
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹77.74 | ₹77.74 |
| 10+ | ₹62.33 | ₹623.30 |
| 30+ | ₹54.73 | ₹1,641.90 |
| 100+ | ₹46.91 | ₹4,691.00 |
| 500+ | ₹42.35 | ₹21,175.00 |
| 1,000+ | ₹39.97 | ₹39,970.00 |
1 × ₹77.74
₹77.74
excl. GST
₹91.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SQA401EJ-T1_GE3
₹77.74 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 75pF
- Ciss-Input Capacitance
- 330pF
- Pd - Power Dissipation
- 13.6W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 3.75A
- Reverse Transfer Capacitance (Crss)
- 63pF
- RDS(on)
- 125mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 5.5nC@4.5V
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.026 g
Overview
Key features
- TrenchFET power MOSFET
- AEC-Q101 qualified
- 100 % Rg and UIS tested
- RoHS COMPLIANT HALOGEN FREE
