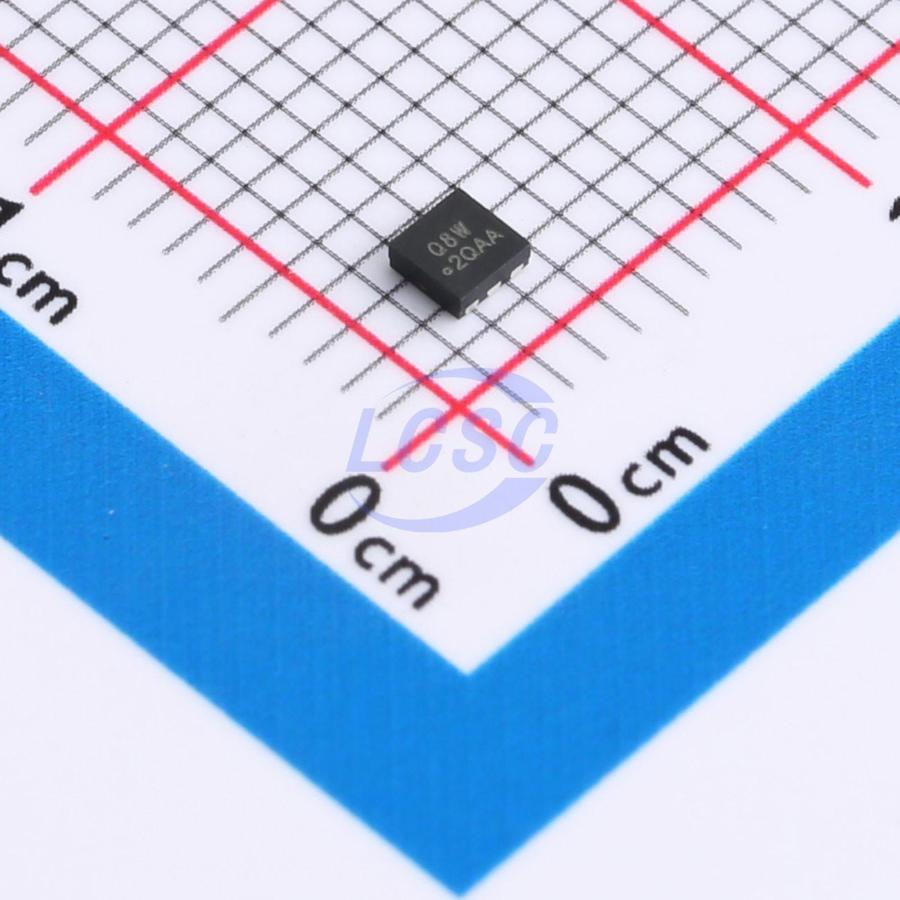

SQA411CEJW-T1_GE3
P-Channel 60V 6.46A 13.6W PowerPAKSC-70W-6L
PowerPAKSC-70W-6LROHS3 CompliantActive
MOSFET P-CH 60V 6.46A PowerPAKSC-70W-6L
- Manufacturer
- VISHAY
- Manufacturer part #
- SQA411CEJW-T1_GE3
- Store part #
- C6495641
- Package / case
- PowerPAKSC-70W-6L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,374 in stock
#C6495641
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹100.28 | ₹100.28 |
| 10+ | ₹80.74 | ₹807.40 |
| 30+ | ₹70.98 | ₹2,129.40 |
| 100+ | ₹61.22 | ₹6,122.00 |
| 500+ | ₹55.35 | ₹27,675.00 |
| 1,000+ | ₹52.31 | ₹52,310.00 |
1 × ₹100.28
₹100.28
excl. GST
₹118.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SQA411CEJW-T1_GE3
₹100.28 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 64pF
- Current - Continuous Drain(Id)
- 6.46A
- Ciss-Input Capacitance
- 590pF
- Pd - Power Dissipation
- 13.6W
- Reverse Transfer Capacitance (Crss)
- 50pF
- RDS(on)
- 155mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 15.5nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.039 g
Overview
Applications
- Load Switch - Adapter Switch - Laptop
Key features
- TrenchFET power MOSFET
- AEC-Q101 qualified
- Wettable flank terminals
- 100 % Rg and UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BUK6D120-60PX#C503628Nexperia · DFN-6-EP(2x2) | Nexperia | DFN-6-EP(2x2) | On request | ₹55.90 · 0 in stock | View |
 | BUK6D43-40P-VB#C52209400VBsemi Elec · DFN-6(2x2) | VBsemi Elec | DFN-6(2x2) | On request | ₹104.50 · 0 in stock | View |
