HXY MOSFETDatasheet (PDF)

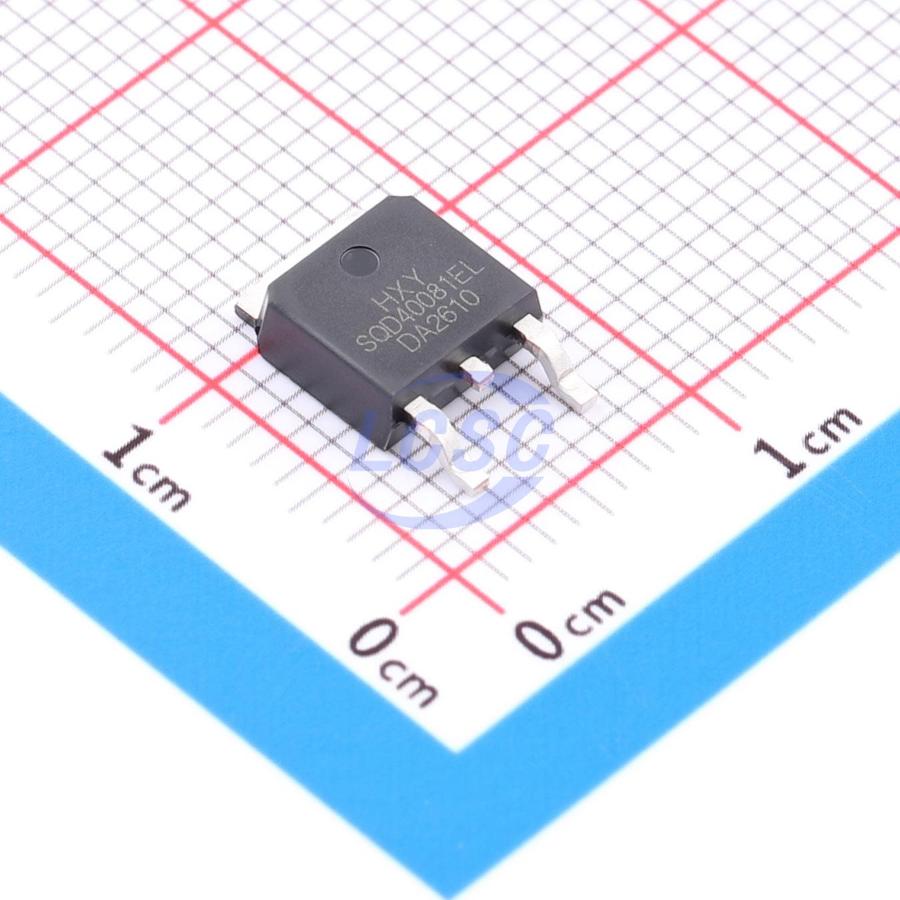

SQD40081EL_GE3-HXY
40V 80A 81W 6.4mΩ@10V 1 P-Channel P-Channel TO-252-2L Single FETs, MOSFETs
TO-252-2LRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- SQD40081EL_GE3-HXY
- Store part #
- C54582537
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
48 in stock
#C54582537
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹138.47 | ₹138.47 |
| 10+ | ₹115.33 | ₹1,153.30 |
| 30+ | ₹102.68 | ₹3,080.40 |
| 100+ | ₹88.31 | ₹8,831.00 |
| 500+ | ₹81.88 | ₹40,940.00 |
| 1,000+ | ₹78.88 | ₹78,880.00 |
1 × ₹138.47
₹138.47
excl. GST
₹163.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SQD40081EL_GE3-HXY
₹138.47 for 1 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 80A
- Output Capacitance(Coss)
- 430pF
- Ciss-Input Capacitance
- 5.295nF
- Pd - Power Dissipation
- 81W
- Reverse Transfer Capacitance (Crss)
- 385pF
- RDS(on)
- 6.4mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 110nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.402 g
Overview
The SQD40081EL_GE3 utilizes advanced trench technology to deliver excellent on-resistance (RDS(ON)), low gate charge, and operation at gate voltages as low as 4.5V. This device is suitable for battery protection or other switching applications. The package is TO-252-2L.
Applications
- Battery protection
- Load switch
- Uninterruptible power supply
- P-channel MOSFET
Key features
- Drain-source voltage (VDS) = -40V, drain current (ID) = -80A
- On-resistance (RDS(ON)) < 8.2mΩ at gate-source voltage (VGS) = 10V
