HXY MOSFETDatasheet (PDF)

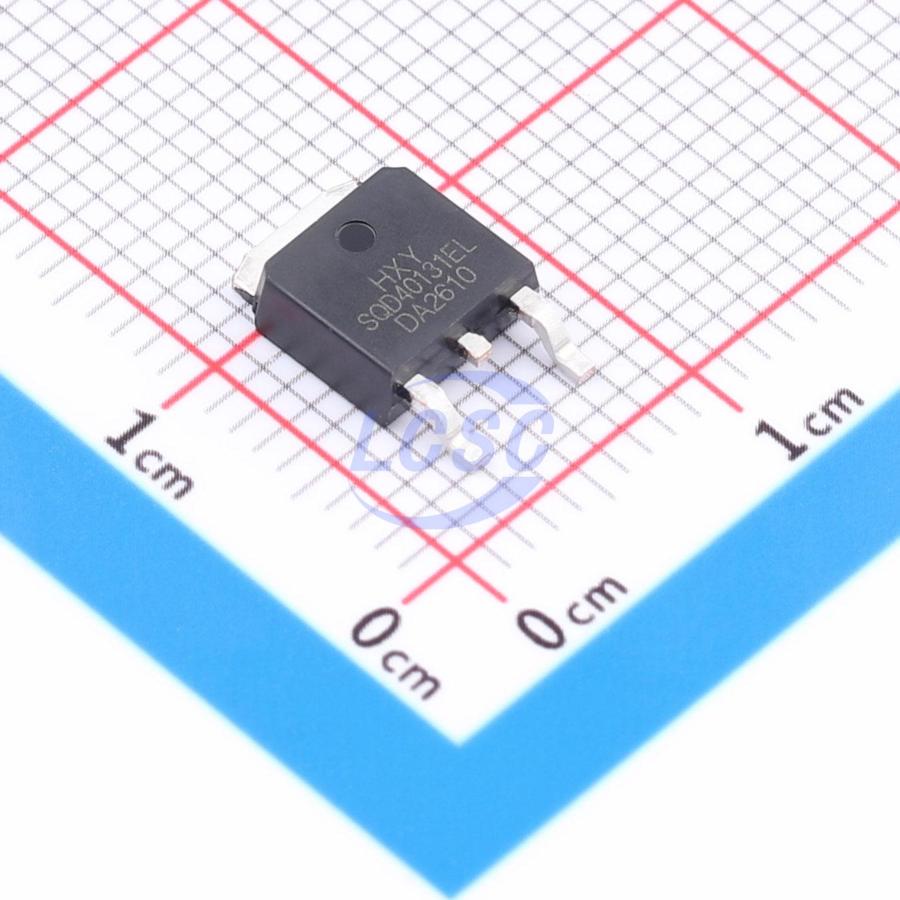

SQD40131EL_GE3-HXY
40V 40A 40.3W 13.5mΩ@10V 1 P-Channel P-Channel TO-252-2L Single FETs, MOSFETs
TO-252-2LRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- SQD40131EL_GE3-HXY
- Store part #
- C54582532
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
42 in stock
#C54582532
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹125.61 | ₹125.61 |
| 10+ | ₹102.03 | ₹1,020.30 |
| 30+ | ₹90.03 | ₹2,700.90 |
| 100+ | ₹78.45 | ₹7,845.00 |
| 500+ | ₹71.38 | ₹35,690.00 |
| 1,000+ | ₹67.74 | ₹67,740.00 |
1 × ₹125.61
₹125.61
excl. GST
₹148.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SQD40131EL_GE3-HXY
₹125.61 for 1 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 190pF
- Current - Continuous Drain(Id)
- 40A
- Ciss-Input Capacitance
- 2.525nF
- Pd - Power Dissipation
- 40.3W
- Reverse Transfer Capacitance (Crss)
- 172pF
- RDS(on)
- 13.5mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 35nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.398 g
Overview
The SQD40131EL_GE3 utilizes advanced trench technology to deliver excellent on-resistance (RDS(ON)), low gate charge, and operation at gate voltages as low as 4.5V. This device is suitable for battery protection or other switching applications.
Applications
- Battery protection
- Load switch
- Uninterruptible power supply
Key features
- Drain-Source Voltage (VDS) = -40V, Drain Current (ID) = -50A
- On-Resistance (RDS(ON)) < 19mΩ at Gate-Source Voltage (VGS) = 10V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSTD46P4LLF6#C42401421HXY MOSFET · TO-252-2L(DPAK) | HXY MOSFET | TO-252-2L(DPAK) | 103 | ₹81.25 · 103 in stock | View |
 | SQD50P04-13L_T4GE3-HXY#C49256455HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 167 | ₹185.39 · 167 in stock | View |
 | SUD40151EL-GE3-HXY#C49256457HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 64 | ₹201.84 · 64 in stock | View |
 | SM4185T9RL-HXY#C49420425HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 502 | ₹72.65 · 502 in stock | View |
 | AOD4185#C5261064HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 13,830 | ₹36.05 · 13,830 in stock | View |
