VISHAYDatasheet (PDF)

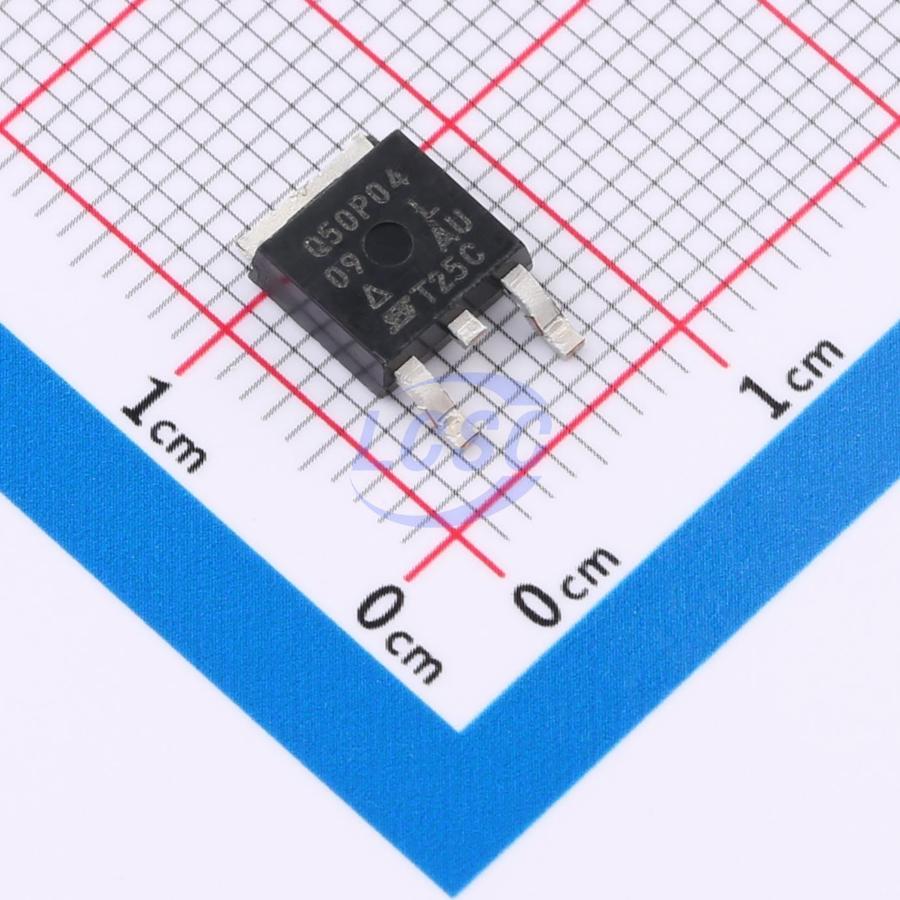

SQD50P04-09L_GE3
P-Channel 40V 50A Surface Mount TO-252
TO-252ROHS3 CompliantActive
MOSFET P-CH 40V 50A TO-252
- Manufacturer
- VISHAY
- Manufacturer part #
- SQD50P04-09L_GE3
- Store part #
- C5160151
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13 in stock
#C5160151
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹308.13 | ₹308.13 |
| 10+ | ₹261.41 | ₹2,614.10 |
| 30+ | ₹232.29 | ₹6,968.70 |
| 100+ | ₹202.31 | ₹20,231.00 |
| 500+ | ₹188.83 | ₹94,415.00 |
| 1,000+ | ₹182.97 | ₹1,82,970.00 |
1 × ₹308.13
₹308.13
excl. GST
₹363.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
SQD50P04-09L_GE3
₹308.13 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 852pF
- Current - Continuous Drain(Id)
- 50A
- Ciss-Input Capacitance
- 6.675nF
- Pd - Power Dissipation
- 136W
- Reverse Transfer Capacitance (Crss)
- 855pF
- RDS(on)
- 7.6mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 155nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.477 g
Overview
Applications
- Tighter V_SD specifications
- Lower diode reverse recovery time
- Lower reverse recovery stored charge
- Lower R<sub>DS(on)</sub>
- Lower V<sub>DS(on)</sub>
Key features
- Halogen-free According to IEC 61249-2-21 Definition
- TrenchFET Power MOSFET
- Package with Low Thermal Resistance
- 100 % Rg and UIS Tested
- Compliant to RoHS Directive 2002/95/EC
- AEC-Q101 Qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPD90P04P4-05-VB#C7429005VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 3 | ₹219.45 · 3 in stock | View |
 | SUD50P04#C5370997TECH PUBLIC · TO-252-3L | TECH PUBLIC | TO-252-3L | 1,631 | ₹71.92 · 1,631 in stock | View |
 | IPD90P04P4L-04-VB#C7429006VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 89 | ₹208.20 · 89 in stock | View |
 | TJ60S04M3L-VB#C7494452VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 46 | ₹182.65 · 46 in stock | View |
 | SQD50P08-25L_GE3#C5334380VISHAY · TO-252 | VISHAY | TO-252 | 758 | ₹181.24 · 758 in stock | View |
