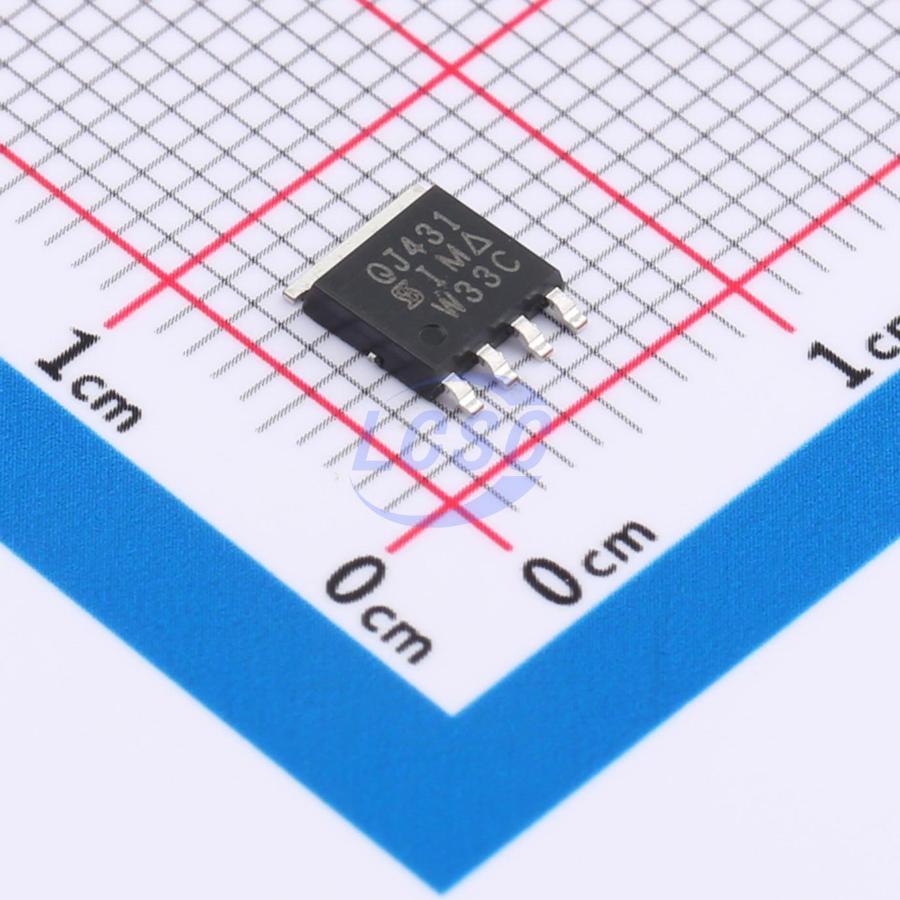

SQJ431EP-T1_GE3
P-Channel 200V 12A 83W Surface Mount PowerPAK-SO-8
PowerPAK-SO-8ROHS3 CompliantActive
MOSFET P-CH 200V 12A PowerPAK-SO-8
- Manufacturer
- VISHAY
- Manufacturer part #
- SQJ431EP-T1_GE3
- Store part #
- C3279499
- Package / case
- PowerPAK-SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,587 in stock
#C3279499
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹220.49 | ₹220.49 |
| 10+ | ₹198.75 | ₹1,987.50 |
| 30+ | ₹185.05 | ₹5,551.50 |
| 100+ | ₹171.13 | ₹17,113.00 |
| 500+ | ₹164.83 | ₹82,415.00 |
| 1,000+ | ₹162.00 | ₹1,62,000.00 |
1 × ₹220.49
₹220.49
excl. GST
₹260.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SQJ431EP-T1_GE3
₹220.49 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 200V
- Output Capacitance(Coss)
- 245pF
- Current - Continuous Drain(Id)
- 12A
- Ciss-Input Capacitance
- 4.355nF
- Pd - Power Dissipation
- 83W
- Reverse Transfer Capacitance (Crss)
- 160pF
- RDS(on)
- 221mΩ@6V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 106nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.224 g
Overview
Key features
- Halogen-free product as defined by IEC 61249-2-21
- TrenchFET® power MOSFET
- AEC-Q101 qualified
- 100% tested for Rg and UIS
- RoHS compliant per directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSBA20P20A#C54842106HUASHUO · PRPAK-8(5x6) | HUASHUO | PRPAK-8(5x6) | 57 | ₹128.62 · 57 in stock | View |
| SQJ431EP-T2_GE3#C3289521VISHAY · PowerPAK-SO-8 | VISHAY | PowerPAK-SO-8 | On request | ₹159.24 · 0 in stock | View | |
