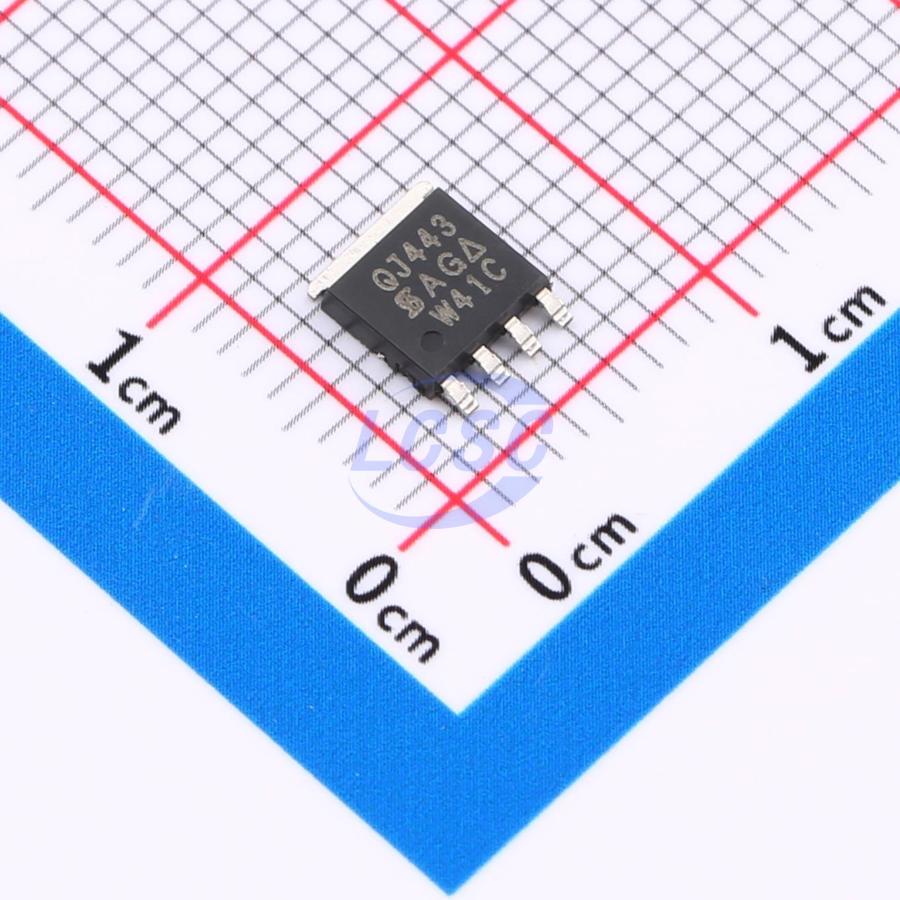

SQJ443EP-T1_GE3
P-Channel 40V 40A 83W Surface Mount PowerPAK-SO-8L
PowerPAK-SO-8LROHS3 CompliantActive
MOSFET P-CH 40V 40A PowerPAK-SO-8L
- Manufacturer
- VISHAY
- Manufacturer part #
- SQJ443EP-T1_GE3
- Store part #
- C727728
- Package / case
- PowerPAK-SO-8L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,009 in stock
#C727728
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹159.10 | ₹159.10 |
| 10+ | ₹131.53 | ₹1,315.30 |
| 30+ | ₹116.34 | ₹3,490.20 |
| 100+ | ₹99.20 | ₹9,920.00 |
| 500+ | ₹91.59 | ₹45,795.00 |
| 1,000+ | ₹88.34 | ₹88,340.00 |
1 × ₹159.10
₹159.10
excl. GST
₹187.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SQJ443EP-T1_GE3
₹159.10 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 270pF
- Ciss-Input Capacitance
- 2.03nF
- Pd - Power Dissipation
- 83W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 40A
- Reverse Transfer Capacitance (Crss)
- 185pF
- RDS(on)
- 29mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 57nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.214 g
Overview
Key features
- Halogen-free According to IEC 61249-2-21 Definition
- TrenchFET Power MOSFET
- AEC-Q101 Qualified
- 100 % Rg and UIS Tested
- Compliant to RoHS Directive 2011/65/EU
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SQJ409EP-T1_GE3#C727776VISHAY · PowerPAK-SO-8L | VISHAY | PowerPAK-SO-8L | 5,217 | ₹152.05 · 5,217 in stock | View |
| SQJ443EP-T1_BE3#C7318454VISHAY · PowerPAKSO-8 | VISHAY | PowerPAKSO-8 | On request | ₹178.45 · 0 in stock | View | |
