VISHAYDatasheet (PDF)

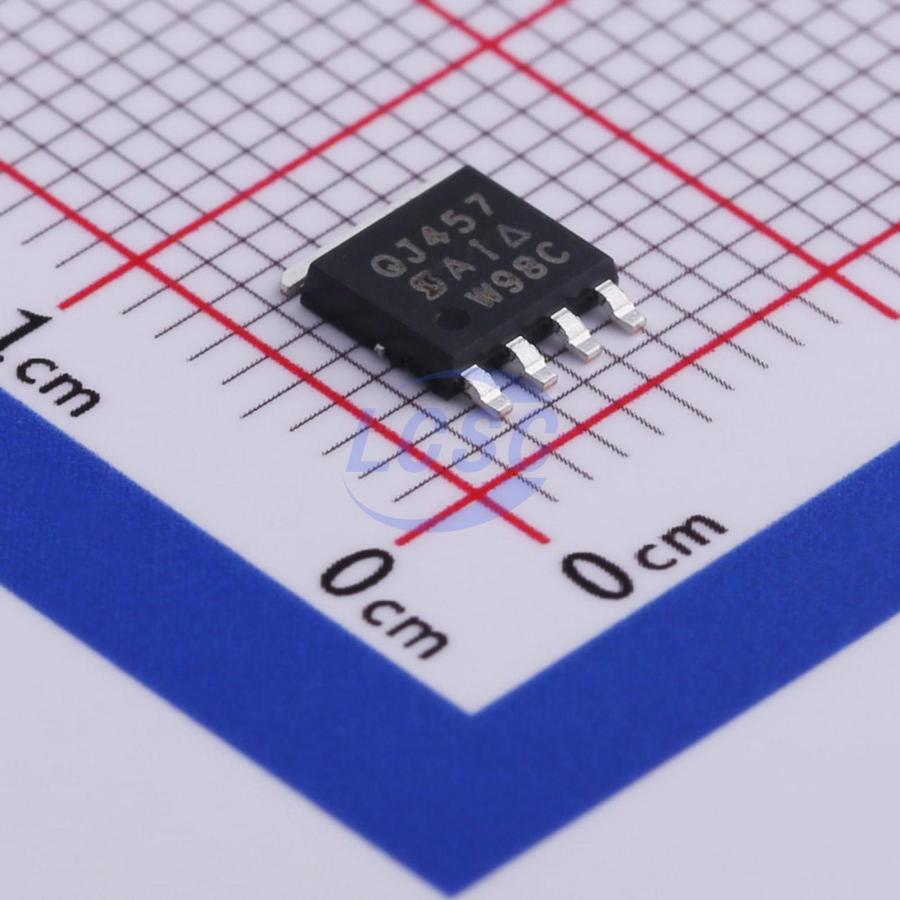

SQJ457EP-T1_GE3
P-Channel 60V 36A 22W PowerPAKSO-8L
PowerPAKSO-8LROHS3 CompliantActive
MOSFET P-CH 60V 36A PowerPAKSO-8L
- Manufacturer
- VISHAY
- Manufacturer part #
- SQJ457EP-T1_GE3
- Store part #
- C511548
- Package / case
- PowerPAKSO-8L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,394 in stock
#C511548
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹115.13 | ₹115.13 |
| 10+ | ₹92.54 | ₹925.40 |
| 30+ | ₹81.46 | ₹2,443.80 |
| 100+ | ₹70.17 | ₹7,017.00 |
| 500+ | ₹63.44 | ₹31,720.00 |
| 1,000+ | ₹59.96 | ₹59,960.00 |
1 × ₹115.13
₹115.13
excl. GST
₹135.85 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SQJ457EP-T1_GE3
₹115.13 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 310pF
- Ciss-Input Capacitance
- 3.4nF
- Pd - Power Dissipation
- 22W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 36A
- Reverse Transfer Capacitance (Crss)
- 275pF
- RDS(on)
- 25mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 100nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.116 g
Overview
Key features
- TrenchFET power MOSFET
- AEC-Q101 qualified
- 100 % Rg and UIS tested
- RoHS COMPLIANT HALOGEN FREE
- PowerPAK SO-8L Single
- P-Channel MOSFET
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSBA6133#C53244067HUASHUO · PRPAK-8(5x6) | HUASHUO | PRPAK-8(5x6) | 147 | ₹57.71 · 147 in stock | View |
 | SQJ459EP-T1_GE3#C3289501VISHAY · PowerPAKSO-8L | VISHAY | PowerPAKSO-8L | 9,888 | ₹138.98 · 9,888 in stock | View |
 | SIJ4819DP-T1-GE3#C23968557VISHAY · PowerPAKSO-8L | VISHAY | PowerPAKSO-8L | 22 | ₹245.50 · 22 in stock | View |
 | SQJ185ELP-T1_GE3#C32345212VISHAY · PowerPAKSO-8L | VISHAY | PowerPAKSO-8L | 80 | ₹322.60 · 80 in stock | View |
