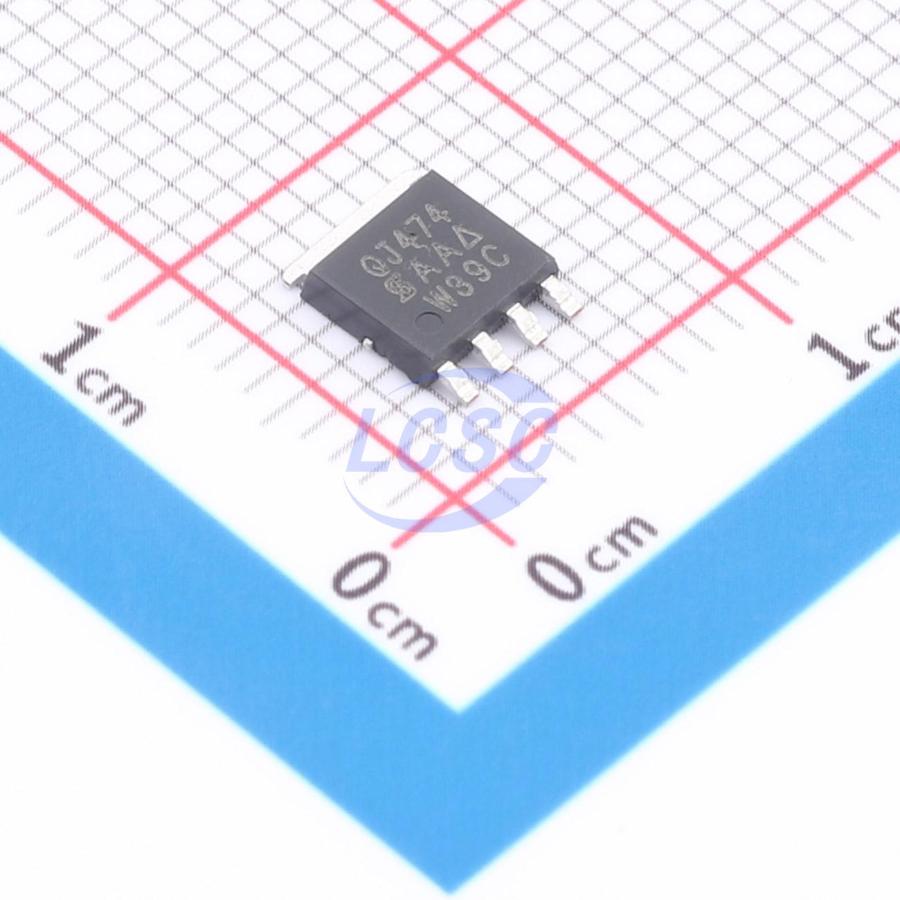

SQJ474EP-T1_GE3
45W 100V 26A 35mΩ@4.5V 1 N-channel N-Channel PowerPAK-SO-8L Single FETs, MOSFETs RoHS
PowerPAK-SO-8LROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- SQJ474EP-T1_GE3
- Store part #
- C727692
- Package / case
- PowerPAK-SO-8L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C727692
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹322.42 | ₹322.42 |
| 10+ | ₹317.90 | ₹3,179.00 |
| 30+ | ₹314.68 | ₹9,440.40 |
| 100+ | ₹311.45 | ₹31,145.00 |
1 × ₹322.42
₹322.42
excl. GST
₹380.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SQJ474EP-T1_GE3
₹322.42 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 397pF
- Ciss-Input Capacitance
- 1.1nF
- Pd - Power Dissipation
- 45W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 26A
- Reverse Transfer Capacitance (Crss)
- 27pF
- RDS(on)
- 35mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 30nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.234 g
Overview
Key features
- Trench field-effect transistor (TrenchFET) power MOSFET
- AEC-Q101 qualified
- 100% Rg and UIS tested
