VISHAYDatasheet (PDF)

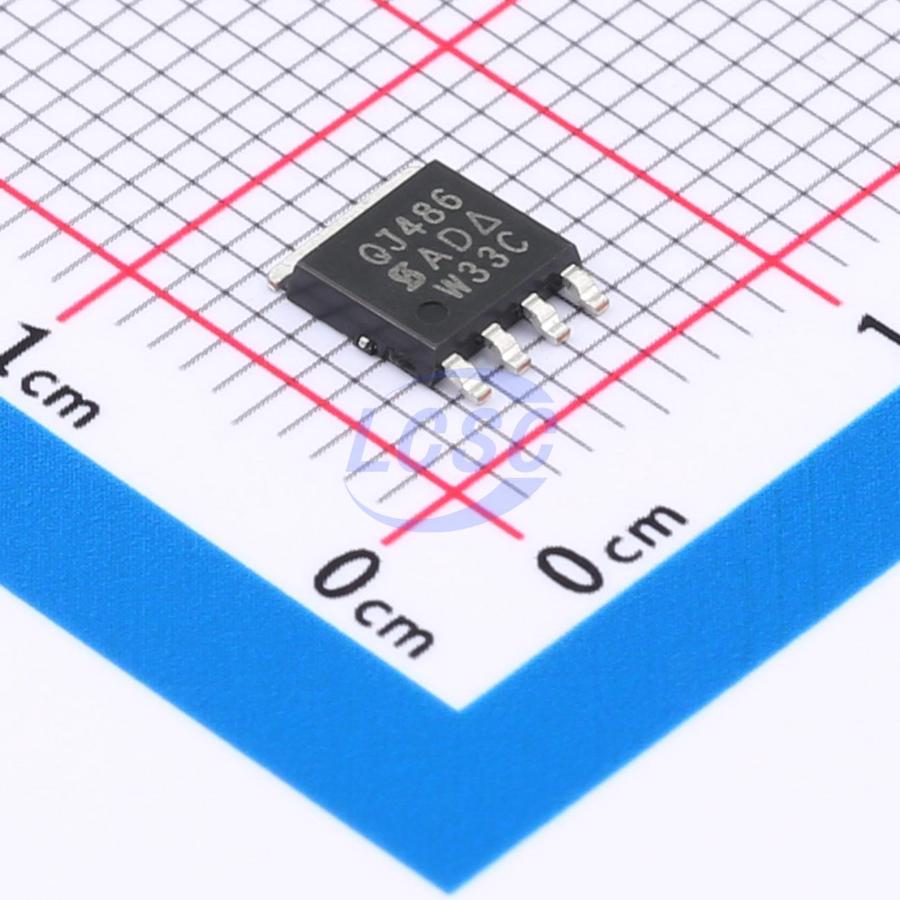

SQJ486EP-T1_GE3
N-Channel 75V 30A 56W Surface Mount PowerPAK-SO-8L
PowerPAK-SO-8LROHS3 CompliantActive
MOSFET N-CH 75V 30A PowerPAK-SO-8L
- Manufacturer
- VISHAY
- Manufacturer part #
- SQJ486EP-T1_GE3
- Store part #
- C727780
- Package / case
- PowerPAK-SO-8L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
943 in stock
#C727780
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹111.69 | ₹111.69 |
| 10+ | ₹100.72 | ₹1,007.20 |
| 30+ | ₹94.69 | ₹2,840.70 |
| 100+ | ₹88.02 | ₹8,802.00 |
| 500+ | ₹84.79 | ₹42,395.00 |
| 1,000+ | ₹83.49 | ₹83,490.00 |
1 × ₹111.69
₹111.69
excl. GST
₹131.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SQJ486EP-T1_GE3
₹111.69 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 146pF
- Ciss-Input Capacitance
- 1.386nF
- Pd - Power Dissipation
- 56W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 75V
- Current - Continuous Drain(Id)
- 30A
- Reverse Transfer Capacitance (Crss)
- 79pF
- RDS(on)
- 26mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 34nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.222 g
Overview
Key features
- TrenchFET power MOSFET
- AEC-Q101 qualified
- 100 % Rg and UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SQJA86EP-T1_GE3#C727550VISHAY · PowerPAK-SO-8L | VISHAY | PowerPAK-SO-8L | 5 | ₹135.07 · 5 in stock | View |
| SQJ416EP-T1_GE3#C727695VISHAY · PowerPAK-SO-8L | VISHAY | PowerPAK-SO-8L | 2,507 | ₹140.94 · 2,507 in stock | View | |
| SQJA94EP-T1_GE3#C727617VISHAY · PowerPAK-SO-8L | VISHAY | PowerPAK-SO-8L | On request | ₹80.05 · 0 in stock | View | |
| SQJ418EP-T2_GE3#C727666VISHAY · PowerPAK-SO-8L | VISHAY | PowerPAK-SO-8L | On request | ₹71.27 · 0 in stock | View | |
