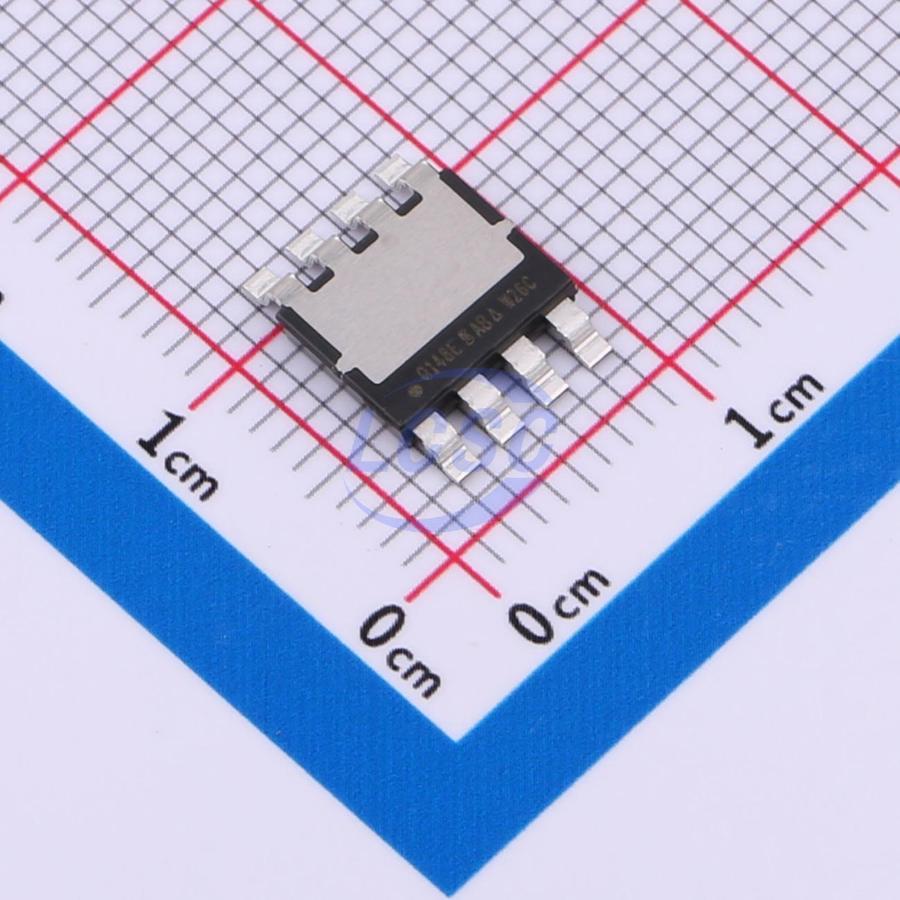

SQJQ148ER-T1_GE3
N-Channel 40V 372A 394W PowerPAK-5(8x8)
PowerPAK-5(8x8)ROHS3 CompliantActive
MOSFET N-CH 40V 372A PowerPAK-5(8x8)
- Manufacturer
- VISHAY
- Manufacturer part #
- SQJQ148ER-T1_GE3
- Store part #
- C3289443
- Package / case
- PowerPAK-5(8x8)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,650 in stock
#C3289443
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹197.23 | ₹197.23 |
| 10+ | ₹179.86 | ₹1,798.60 |
| 30+ | ₹169.00 | ₹5,070.00 |
| 100+ | ₹157.70 | ₹15,770.00 |
| 500+ | ₹152.70 | ₹76,350.00 |
| 1,000+ | ₹150.53 | ₹1,50,530.00 |
1 × ₹197.23
₹197.23
excl. GST
₹232.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SQJQ148ER-T1_GE3
₹197.23 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 2.193nF
- Current - Continuous Drain(Id)
- 372A
- Ciss-Input Capacitance
- 5.75nF
- Pd - Power Dissipation
- 394W
- Reverse Transfer Capacitance (Crss)
- 184pF
- RDS(on)
- 1.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 102nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.562 g
Overview
Key features
- TrenchFET Gen IV power MOSFET
- AEC-Q101 qualified
- 100 % Rg and UIS tested
- Thin 1.6 mm package
- Very low thermal resistance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SQJQ160E-T1_GE3#C3279472VISHAY · PowerPAK-5(8x8) | VISHAY | PowerPAK-5(8x8) | 2 | ₹1,391.41 · 2 in stock | View |
| SQJQ140E-T1_GE3#C3289449VISHAY · PowerPAK-5(8x8) | VISHAY | PowerPAK-5(8x8) | 5 | ₹1,280.82 · 5 in stock | View | |
 | SIJH600E-T1-GE3#C3289444VISHAY · PowerPAK-5(8x8) | VISHAY | PowerPAK-5(8x8) | 3 | ₹636.12 · 3 in stock | View |
| SQJQ142E-T1_GE3#C3279484VISHAY · PowerPAK-5(8x8) | VISHAY | PowerPAK-5(8x8) | 1 | ₹250.76 · 1 in stock | View | |
